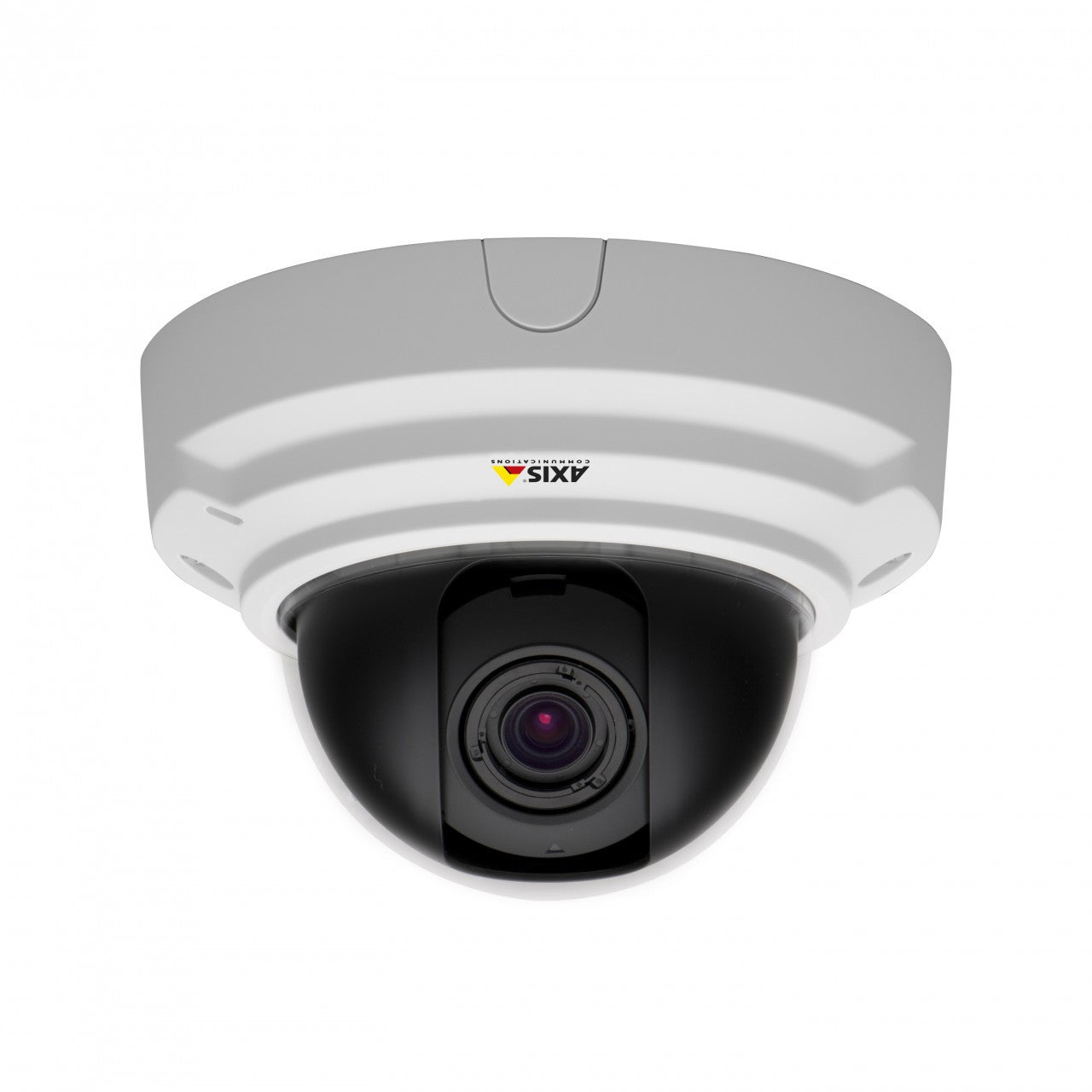

AXIS P3363-V (0508-001) Indoor Vandal Proof Network Camera

Discontinued, replaced by the P3364-V.

AXIS P3363-V (0508-001) Indoor Vandal Proof Network Camera Features

• Resolution: 800x600 (SVGA) to 160x90
• Image Sensor: Progressive scan RGB CMOS 1/3”
• Day/Night: Yes
• Mechanical IR Cut Filter: Yes
• Minimum Illumination: Color: 0.1 lux, F1.2, B/W: 0.02 lux
• IR Illuminators: No
• IR Illuminator Range: N/A
• Lens Type: Varifocal, remote focus and zoom, IR corrected, P-Iris control
• Focal Length: 2.5-6 mm
• Zoom: Yes
• Focus: Auto
• Field of View: 105° - 49° horizontal angle of view
• Compression Styles: H.264 Baseline and Main Profile (MPEG-4 Part 10/AVC) Motion JPEG
• Frame Rate: 25 fps with power line frequency 50 Hz, 30 fps with power line frequency 60 Hz
• Image Settings: Compression, color, brightness, sharpness, contrast, white balance, exposure control, exposure zones, backlight compensation, WDR - dynamic contrast, fine tuning of low light behavior Rotation: 0°, 90°, 180°, 270°, including Corridor Format Text and image overlay, mirroring of images
• Privacy Mask: Yes
• Built-in Microphone: Yes
• Audio Capabilities: Two -Way, External microphone input or line input, line output Built-in microphone (can be disabled)
• Alarm/Event Management: Video motion detection, active tampering alarm Support for AXIS Camera Application Platform enabling installation of additional applications, Notification: email, HTTP and TCP, Video recording to edge storage, Pre- and post-alarm video buffering, PTZ preset, guard tour
• ONVIF: Yes
• Security: Password protection, IP address filtering, digest authentication, user access log, IEEE 802.1X** network access control, HTTPS** encryption
• On-board Storage: SD/SDHC/SDXC slot supporting memory card up to 64 GB (card not included) Support for recording to network share (network-attached storage or file server)
• Indoor/Outdoor: Indoor
• Housing/Enclosure Rating: IK10 impact-resistant & vandal resistant casing with aluminum base, Polycarbonate transparent cover Aluminum inner camera module with encapsulated electronics
• Color: White NCS S 1002-B
• Dimensions: 96 mm x 148 x 148 mm (3.8'' x 5.8'' x 5.8'')
• Weight: 650 g (1.4 lb.)
• Operating Temperature: 0 °C to 50 °C (32 °F to 122 °F)
• Operating Humidity: 10 - 85% RH (non-condensing)
• Power: Power over Ethernet IEEE 802.3af or Class 2; max 5.9 W
• Warranty: 3 Year
• What's Included: Installation Guide, Installation and Management Software CD, Windows decoder 1-user license, smoked transparent cover, Connector kit
• Please Note: Previously also available with a 6mm lens (0468-001), this version was discontinued Fall 2014

AXIS P3363-V (0508-001) Indoor Vandal Proof Network Camera Overview

The light-sensitive, vandal-resistent AXIS P3363-V Fixed Dome Network Camera offers exceptional image quality in H.264 and Motion JPEG. It delivers 30 fps in all resolutions up to SVGA. Remote zoom ensures that the viewing angle is optimized for the scene and required pixel resolution at installation. The remote focus function makes the installation convenient, eliminating the need for focusing at the camera position. AXIS P3363-V features P-Iris, a revolutionary iris control system that provides optimal image quality in all lighting conditions. It provides images with better contrast, clarity, resolution and depth of field. Having good depth of field—where objects at different distances from the camera are in focus simultaneously—is important in the video monitoring of, for example, a long corridor or parking. AXIS P3363-V also features Axis' ground-breaking Lightfinder technology. The advantages of the Lightfinder technology are high light sensitivity, excellent image quality with low noise but a wealth of details, and better color reproduction in low light. AXIS P3363-V with its vandal-resistant casing, is a fixed dome specifically designed for indoor environments where discreet and compact solutions are required. With two-way audio & a built-in microphone the AXIS P3363-V privides full audio support. Along with intelligent capabilities such as enhanced video motion detection, audio detection and detection of camera tampering attempts like blocking or spray-painting the AXIS P3363-V is the perfect solution for unobtrusive video surveillance in exposed areas such as airports, city surveillance, banking, school and university campuses. The built in SD/SDHC memory card slot povides an extra source of storage. Along with PoE or Power over Ethernet the AXIS P3363-V is a great choice for a wide variety of applications.
