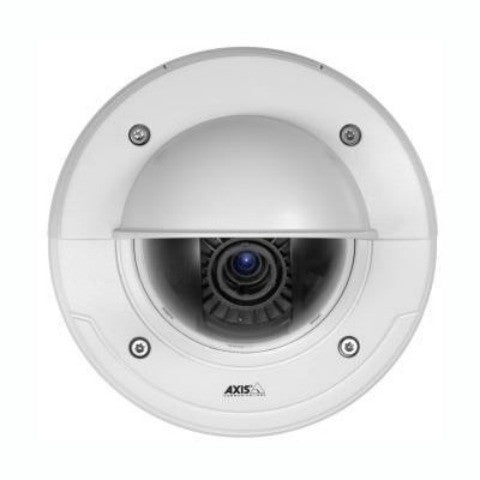

AXIS P3363-VE (0483-001) Outdoor Vandal Proof Network Camera

Discontinued, replaced by the P3364-VE.

AXIS P3363-VE (0483-001) Features

• Resolution: 800x600 (SVGA) to 160x90
• Image Sensor:Progressive scan RGB CMOS 1/3”
• Day/Night: Yes
• Mechanical IR Cut Filter: Yes
• Minimum Illumination: Color: 0.15 lux, F1.4, B/W: 0.03 lux, F1.4
• IR Illuminators: No
• IR Illuminator Range: N/A
• Lens Type: Varifocal, remote focus and zoom, IR corrected, P-Iris control, megapixel resolution
• Focal Length: 12 mm is 3.3-12 mm
• Zoom: Yes
• Focus: Auto
• Field of View: 82° - 24° horizontal angle of view
• Compression Styles: H.264 Baseline and Main Profile (MPEG-4 Part 10/AVC) Motion JPEG
• Frame Rate: 25 fps with power line frequency 50 Hz, 30 fps with power line frequency 60 Hz
• Image Settings: Compression, color, brightness, sharpness, contrast, white balance, exposure control, exposure zones, backlight compensation, WDR - dynamic contrast, fine tuning of low light behavior Rotation: 0°, 90°, 180°, 270°, including Corridor Format, Text and image overlay, mirroring of images
• Privacy Mask: Yes
• Built-in Microphone: No
• Audio Capabilities: Two -Way, External microphone input or line input, line output
• Alarm/Event Management: Video motion detection, active tampering alarm, audio detection, Support for AXIS Camera Application Platform enabling installation of additional applications Intelligent video, external input, edge storage events
• ONVIF: YES
• Security: Password protection, IP address filtering, digest authentication, user access log, IEEE 802.1X** network access control, HTTPS** encryption
• On-board Storage: SD/SDHC/SDXC slot supporting memory card up to 64 GB (card not included), Support for recording to network share (network-attached storage or file server)
• Indoor/Outdoor: Outdoor
• Housing/Enclosure Rating: IP66- and NEMA 4X-rated, IK10 impact-resistant casing with aluminum base and dehumidifying membrane, Polycarbonate transparent cover, Aluminum inner camera module with encapsulated electronics
• Color: White NCS S 1002-B
• Dimensions: 123 mm x 178 x 178 mm (4.8'' x 7.0'' x 7.0'')
• Weight: 1.5 kg (3.3 lb)
• Operating Temperature: -40 °C to 55 °C (-40 °F to 131 °F)
• Operating Humidity: 10 - 100% RH (condensing
• Power: Power over Ethernet IEEE 802.3af or Class 3; max 12.1 W
• Warranty: 3 Year
• What's Included: Installation Guide, Installation and Management Software CD, Windows decoder 1 user license, connector kit, weather shield, mounting bracket, 5 m (16 ft.) network cable with pre-mounted gasket, smoked transparent cover
• Please Note: Previously available in a 6mm version (0468-001), this version was discontinued Fall 2014

AXIS P3363-VE (0483-001) Outdoor Vandal Proof Network Camera Overview

The light-sensitive, outdoor-ready AXIS P3363-VE fixed dome offers exceptional image quality in H.264 and Motion JPEG. It delivers 30 fps in all resolutions up to SVGA. The camera also supports digital pan/tilt/zoom and multi-view streaming, where the full view and several areas cropped from the full view can be streamed simultaneously. The remote zoom and pixel counter features ensure that the camera’s angle of view is optimized for the area to be monitored and the required pixel resolution. AXIS P3363-VE integrates Axis' Lightfinder technology. The outstanding light sensitivity, with maintained colors even in very poor lighting conditions, is obtained by a combination of Axis' expertise in image processing, system-on-chip development and selection of the best optical components. The camera also supports P-Iris control, allowing the camera to precisely control the position of the iris. The iris opening is optimized for depth of field, lens resolution and light inlet, resulting in superb image quality with optimal sharpness. AXIS P3363-VE with its weather-proof and vandal-resistant casing, is a fixed dome perfectly adapted for harsh environments. It operates in extreme temperatures from -40° to 55° C (-40° to 131 °F), powered by standard Power over Ethernet (IEEE 802.3af) only. Power over Ethernet (IEEE 802.3af), also eliminates the need for power cables and reduces installation costs. With built in intelligent capabilities such as two-way audio support, built-in SD/SDHC memory card slot, enhanced video motion detection, audio detection and detection of camera tampering attempts like blocking or spray-painting it is the perfect solution for video surveillance systems in areas such as airports, city surveillance, banking, school and university campuses.
