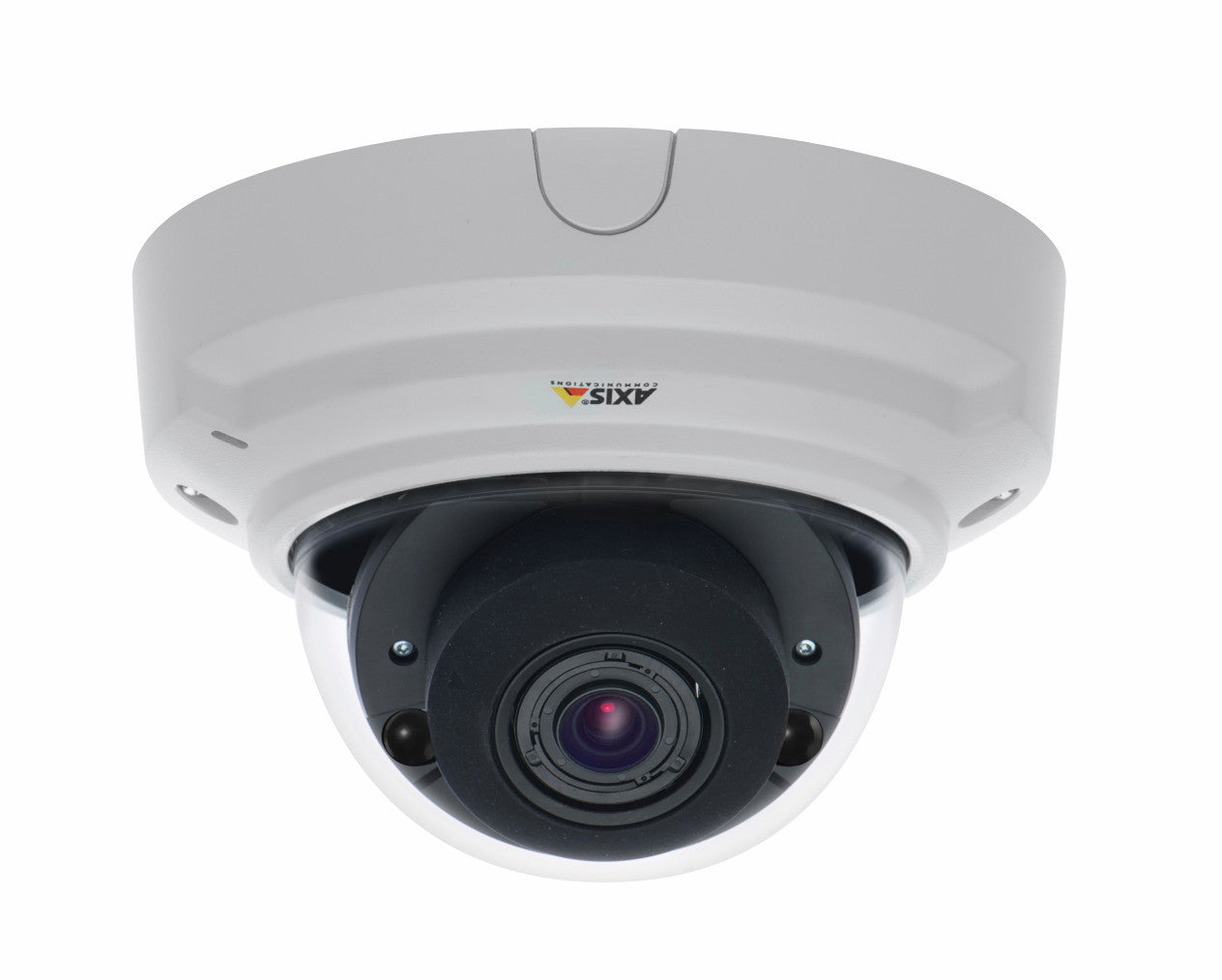

AXIS P3364-LV (0486-001) IR Dome Network Camera

AXIS P3364-LV Features

• Resolution: 1280x960* (approx. 1.3 MP) to 160x90
• Image Sensor: Progressive scan RGB CMOS 1/3
• Day/Night: Yes
• Mechanical IR Cut Filter: Yes, automatically removable infrared-cut filter
• Minimum Illumination: Color: 0.18 lux, F1.4, B/W: 0 04 lux, 0 lux with IR illumination on
• IR Illuminators: Yes
• IR Illuminator Range: Up to 30 meters (100ft)
• Lens Type: Varifocal
• Focal Length: 3.3-12 mm, F1.4
• Zoom: Auto
• Iris: P-Iris
• Focus: Auto
• Field of View: 82° - 24° view horizontal
• Compression Styles: H.264 Baseline and Main Profile (MPEG-4 Part 10/AVC), Motion JPEG
• Frame Rate: 25/30 fps with power line frequency 50/60 Hz
• Image Settings: Compression, color, brightness, sharpness, contrast, white balance, exposure control, exposure zones, backlight compensation, WDR - dynamic contrast, fine tuning of low light behavior; Rotation: 0°, 90°, 180°, 270°, including Corridor Format; AXIS P3384-V: WDR - dynamic capture: Up to 120 dB (0.5 - 500,000 lux) depending on scene
• Privacy Mask: No
• Built-in Microphone: Yes, can be disabled
• Audio Capabilities: Two-way, External microphone input or line input, line output
• Alarm/Event Management: Intelligent video, edge storage events, File upload: FTP, HTTP, network share and email, Notification: email, HTTP and TCP, Video recording to edge storage, Pre- and post-alarm video buffering, PTZ preset, guard tour, Activation of IR illumination
• ONVIF: Yes
• Security: Password protection, IP address filtering, digest authentication, user access log, IEEE 802.1X** network access control, HTTPS** encryption
• Users: N/A
• On-board Storage: SD/SDHC/SDXC slot supporting memory cards up to 64 GB (card not included)
• Indoor/Outdoor: Indoor
• Housing/Enclosure Rating: IK10 impact-resistant casing with aluminum base
• Dimensions: 96 mm x 148 mm x 148 mm (3.8'' x 5.8'' x 5.8'')
• Weight: 670 g (1.5 lb.)
• Operating Temperature: 0 °C to 50 °C (32 °F to 122 °F)
• Operating Humidity: Humidity 10 - 85% RH (non-condensing)
• Power: Power over Ethernet IEEE 802.3af; IR illumination on: Class 3; max 12.1 W; IR illumination off: max 5.9 W
• Warranty: 3 Years
• What's Included: Installation Guide, Installation and Management Software CD, Windows decoder 1-user license, Connector kit
• Please Note: Available with a 6mm (0485-001) or 12mm (0486-001) lens

AXIS P3364-LV Overview

The AXIS P3364-LV is a 1-megapixel day and night fixed dome network camera that offers superb video performance. It delivers 30 fps in all resolutions up to HDTV 720p/1MP. AXIS P3364-LV features built-in IR illumination based on new, long-life LED technology that is highly power efficient. This results in high-quality, low-noise video also when the environment is completely dark. The built-in IR solution in AXIS P3364-LV automatically adapts the illumination angle with the zoom level, which simplifies installation. AXIS P3364-LV integrates Axis' Lightfinder technology. The outstanding light sensitivity, with maintained colors even in very poor lighting conditions, is obtained by a combination of Axis' expertise in image processing, system-on-chip development and selection of the best optical components. The camera also supports P-Iris control, allowing the camera to precisely control the position of the iris. The iris opening is optimized for depth of field, lens resolution and light inlet, resulting in superb image quality with optimal sharpness. AXIS P3364-LV with its vandal-resistant casing is a fixed dome specifically designed for indoor environments where discreet and compact solutions are required. It is the perfect solution for video surveillance in exposed areas such as airports, schools and prisons.
