AXIS P3364-LVE dimensions
AXIS P3364-LVE internal camera

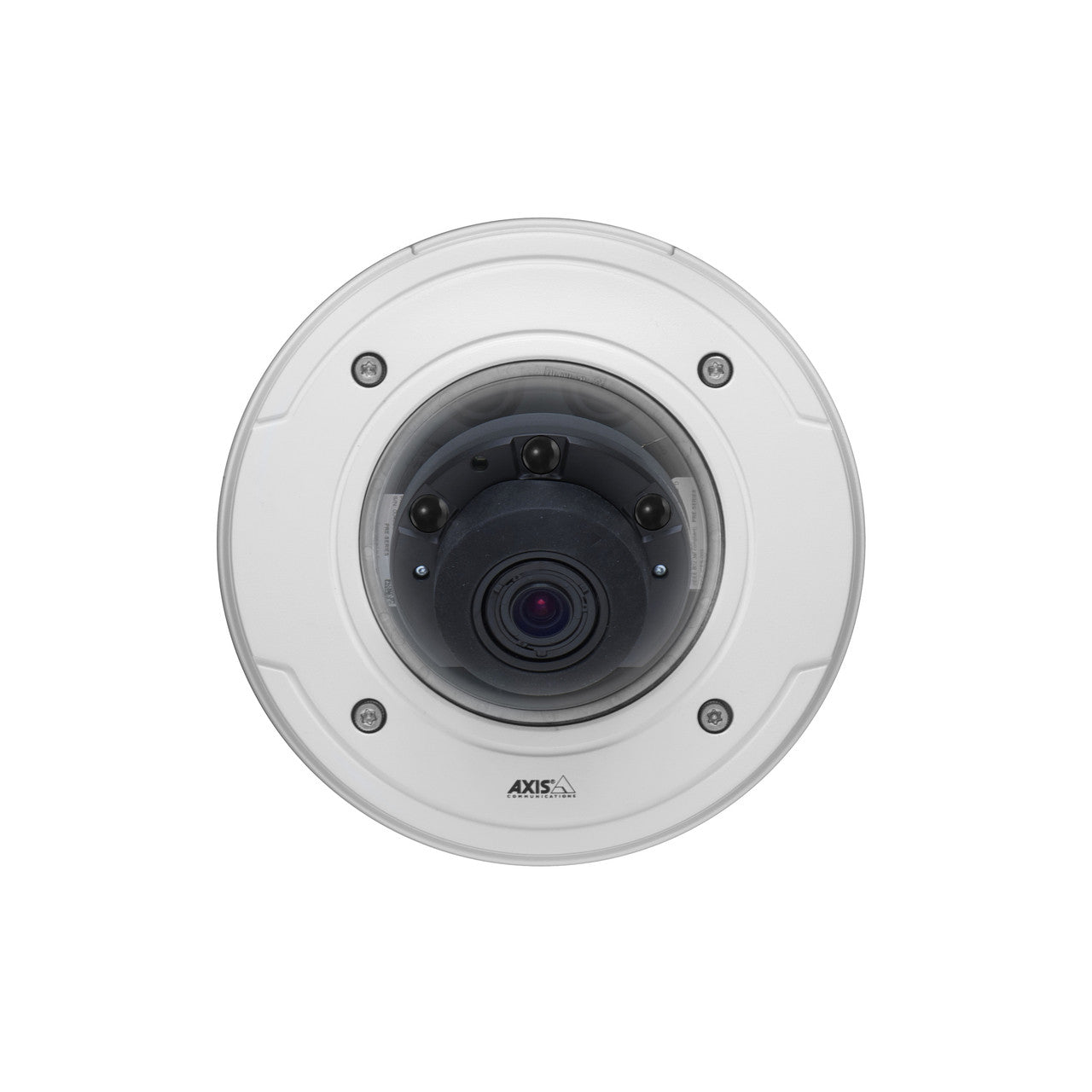

AXIS P3364-LVE (0473-001) Vandal-Resistant IR Dome Network Camera


AXIS P3364-LVE (0473-001) Vandal-Resistant IR Dome Network Camera

Sale price$999.00
SKU: P3364-LVE (0473-001)

Replaced by: AXIS P3375-LVE (01063-001)


AXIS P3364-LVE Features

  • Resolution: 1280x960 (approx. 1.3 MP) to 160x90
  • Image Sensor: Progressive scan RGB CMOS 1/3”
  • Day/Night: Yes
  • Mechanical IR Cut Filter: Automatically removable infrared-cut filter
  • Minimum Illumination: Color: 0.18 lux, F1.4, B/W: 0.04 lux, F1.4, 0 lux with IR illumination on
  • IR Illuminators: Yes
  • IR Illuminator Range: Up to 30m (100ft)
  • Lens Type: Varifocal, IR corrected, P-Iris control
  • Focal Length: 3.3-12 mm / F1.4
  • Zoom: Remote
  • Focus: Remote
  • Field of View: 82° - 24° horizontal angle of view
  • Compression Styles: H.264 Baseline and Main Profile (MPEG-4 Part 10/AVC) Motion JPEG
  • Frame Rate: 25/30 fps with power line frequency 50/60 Hz
  • WDR Technology: Yes
  • Image Settings: Compression, color, brightness, sharpness, contrast, white balance, exposure control, exposure zones, backlight compensation, WDR - dynamic contrast, fine tuning of low light behavior; Rotation: 0°, 90°, 180°, 270°, including Corridor Format.
  • Privacy Mask: Yes
  • Built-in Microphone: No
  • Audio Capabilities: Supports two -way audio via external microphone input or line input, line output
  • Alarm/Event Management: Video motion detection, active tampering alarm, audio detection, Support for AXIS Camera Application Platform enabling installation of additional applications Intelligent video, external input, edge storage events, File upload: FTP, HTTP, network share and email, Notification: email, HTTP and TCP, Video and audio recording to edge storage, Pre- and post-alarm video buffering, External output activation, Play audio clip
  • ONVIF: Yes
  • Security: Password protection, IP address filtering, digest authentication, user access log, IEEE 802.1X network access control, HTTPS encryption
  • On-board Storage: SD/SDHC/SDXC slot supporting memory card up to 64 GB (card not included)
  • Indoor/Outdoor: Outdoor
  • Housing/Enclosure Rating: IP66 weatherproof, IK10 vandal-proof, NEMA 4X-rated
  • Dimensions: Please See Diagram in Pictures
  • Weight: 1.4 kg (3.1 lb), without weather shield
  • Operating Temperature: -40 °C to 55 °C (-40 °F to 131 °F)
  • Operating Humidity: Humidity 10 - 100% RH (condensing)
  • Power: Power over Ethernet IEEE 802.3af or Class 2; max 5.9 W
  • Warranty: 3 Year
  • What's Included: Installation Guide, Installation and Management Software CD, Windows decoder 1-user license, Connector kit, Mounting bracket, 5 m (16 ft) network cable with pre-mounted gasket, Resistorx T20 screw driver, Drill hole template, weathershield not included
  • Please Note: 6mm lens is the AXIS P3364-LVE (0476-001) & 12mm lens is the AXIS P3364-LVE (0473-001)
AXIS P3364-LVE Overview

The AXIS P3364-LVE is a 1-megapixel day and night fixed dome network camera that offers superb video performance. It delivers 30 fps in all resolutions up to HDTV 720p/1MP. AXIS P3364-LVEfeatures built-in IR illumination based on new, long-life LED technology that is highly power efficient. This results in high-quality, low-noise video also when the environment is completely dark. The built-in IR solution in AXIS P3364-LVEautomatically adapts the illumination angle with the zoom level, which simplifies installation. AXIS P3364-LVE integrates Axis' Lightfinder technology. The outstanding light sensitivity, with maintained colors even in very poor lighting conditions, is obtained by a combination of Axis' expertise in image processing, system-on-chip development and selection of the best optical components. The camera also supports P-Iris control, allowing the camera to precisely control the position of the iris. The iris opening is optimized for depth of field, lens resolution and light inlet, resulting in superb image quality with optimal sharpness. AXIS P3364-LVE with its weather-proof and vandal-resistant casing, is a fixed dome perfectly adapted for harsh environments. It operates in a wide temperature range from -40° to 55° C (-40°to 131 °F), powered by standard Power over Ethernet (IEEE 802.3af) only. It is the perfect solution for video surveillance systems in areas with tough quality and efficiency requirements such as airports, city surveillance, banking, school and university campuses.
