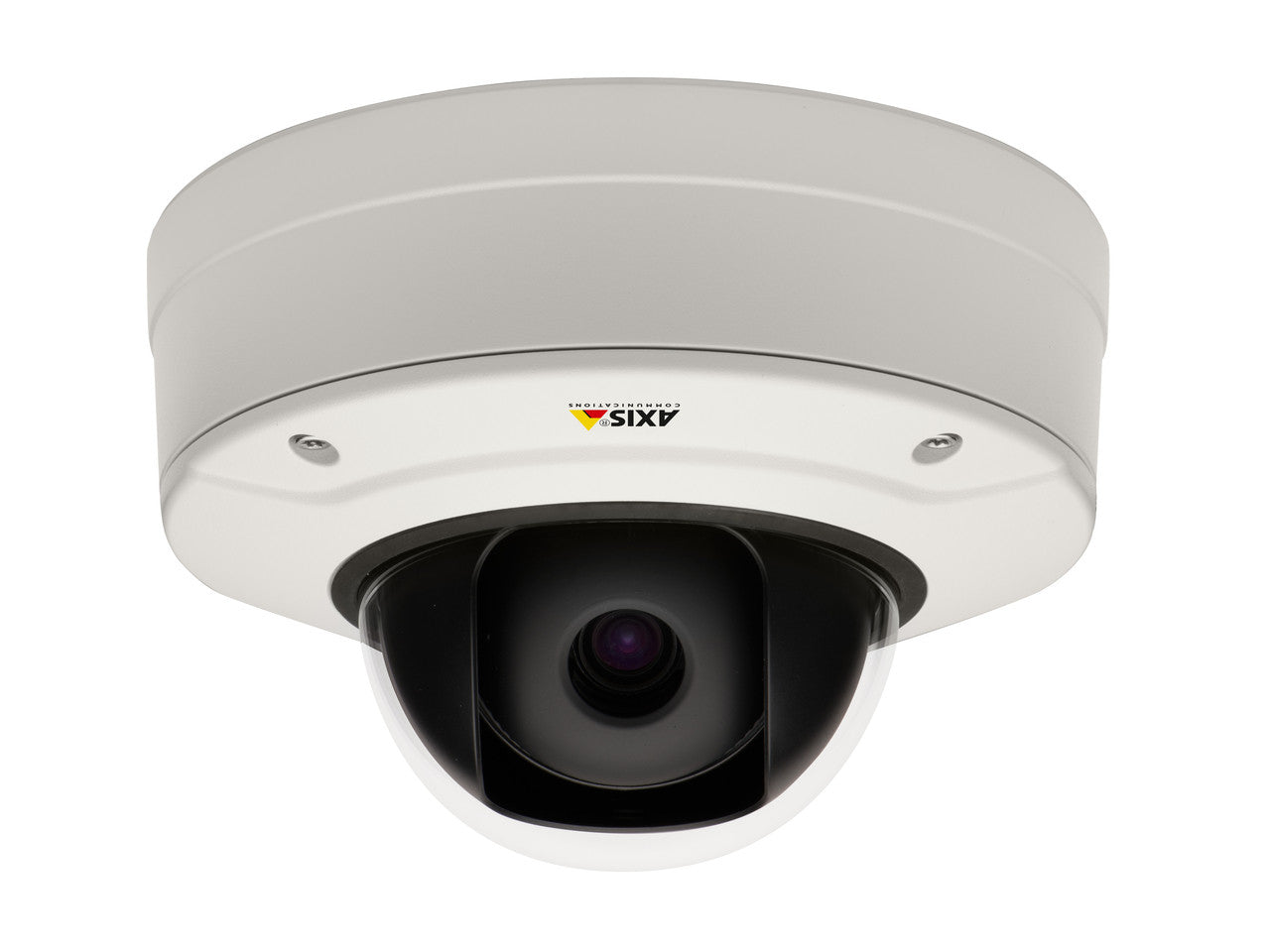

AXIS P3365-VE (0587-001) Wide Angle Outdoor 1080p HD Dome Network Camera

AXIS P3365-VE (0587-001) Features

• Resolution: 1920X1080 (2 MP) to 160x90
• Image Sensor: 1/2.8" Progressive Scan RGB CMOS
• Day/Night: Yes
• Mechanical IR Cut Filter: Automatically removable infrared-cut filter
• Minimum Illumination: Color: 0.2 lux, F1.3, B/W: 0.04 lux, F1.3
• IR Illuminators: No
• IR Illuminator Range: N/A
• Lens Type: Varifocal, P-Iris control
• Focal Length: 3–9 mm / F1.3
• Zoom: Remote, Digital PTZ
• Iris: Fixed
• Focus: Remote
• Field of View: 100°–35° view
• Compression Styles: H.264 Main and Baseline Profile (MPEG-4 Part 10/AVC); Motion JPEG
• Frame Rate: 30 fps
• WDR Technology: Yes
• Image Settings: Compression, Color, Brightness, Sharpness, Contrast, White balance, Exposure control, Exposure zones, Backlight compensation, Fine tuning of behavior at different light levels, WDR - Dynamic Contrast, Text and image overlay, Privacy mask, Mirroring of images, Rotation: 0°, 90°, 180°, 270°, including Corridor Format
• Privacy Mask: Yes
• Built-in Microphone: No
• Audio Capabilities: None
• Alarm/Event Management: Video motion detection, Active tampering alarm, Audio detection, AXIS Camera Application Platform enabling installation of additional applications, Intelligent video, Edge storage events, External input, File upload: FTP, HTTP, network share and email, Notification: email, HTTP and TCP, Video and audio recording to edge storage, Pre- and post-alarm video buffering, External output activation, Play audio clip
• ONVIF: Yes
• Security: Password protection, IP address filtering, HTTPS encryption, IEEE 802.1X network access control, digest authentication, user access log
• Users: 1
• On-board Storage: microSD/microSDHC/microSDXC slot supporting memory card up to 64 GB (card not included)
• Indoor/Outdoor: Outdoor
• Housing/Enclosure Rating: IP66 weather proof, NEMA 4X-rated, IK10 vandal proof
• Dimensions: 178mm (W) x 123mm (H) (7" x 4.8")
• Weight: 1.7 kg (3.7 lb), with weather shield
• Operating Temperature: -40 °C to 55 °C (-40 °F to 131 °F)
• Operating Humidity: 10 - 100% RH (condensing)
• Power/Comsumption: PoE IEEE 802.3af/802.3at Type 1 Class 3 / max. 8.6 W
• Warranty: 3 Year
• What's Included: Camera, Installation Guide, Installation and Management Software CD, Windows decoder 1-user license, Connector kit, Mounting bracket, 5 m (16 ft) network cable with pre-mounted gasket, Resistorx T20 screw driver, Drill hole template, Weather shield, Smoked cover

AXIS P3365-VE (0587-001) Overview

The AXIS P3365-VE is a 2-megapixel day and night fixed dome network camera that offers exceptional video performance. It delivers full frame rate HDTV 1080p (1920x1080) in compliance with the SMPTE 274M standard in resolution, color representation, 16:9 aspect ratio and frame rate. Multiple H.264 streams, as well as Motion JPEG streams, can be provided simultaneously. The camera also supports digital pan/tilt/zoom and multi-view streaming, where the full view and several areas cropped from the full view can be streamed simultaneously. The remote zoom adjusts the angle of view over the network and the remote focus eliminates the need for manual focusing. AXIS P3365-VE features P-Iris, a precise iris control system that provides optimal image quality in all lighting conditions. It provides images with better contrast, clarity, resolution and depth of field. Having good depth of field—where objects at different distances from the camera are in focus simultaneously—is important in the video monitoring of, for example, a long corridor or parking lot. AXIS P3365-VE also features wide dynamic range and day/night functionality, which enables clear images both in daylight and in dark lighting conditions. AXIS P3365-VE with its weather-proof and vandal-resistant casing is a fixed dome perfectly adapted for harsh environments. The camera operates in-40 °C (-40 °F) to +55 °C (+131 °F), powered by standard Power over Ethernet (IEEE 802.3af) only. AXIS P3365-VE is the perfect solution for video surveillance in areas with tough quality and efficiency requirements such as university campuses and railway stations.
