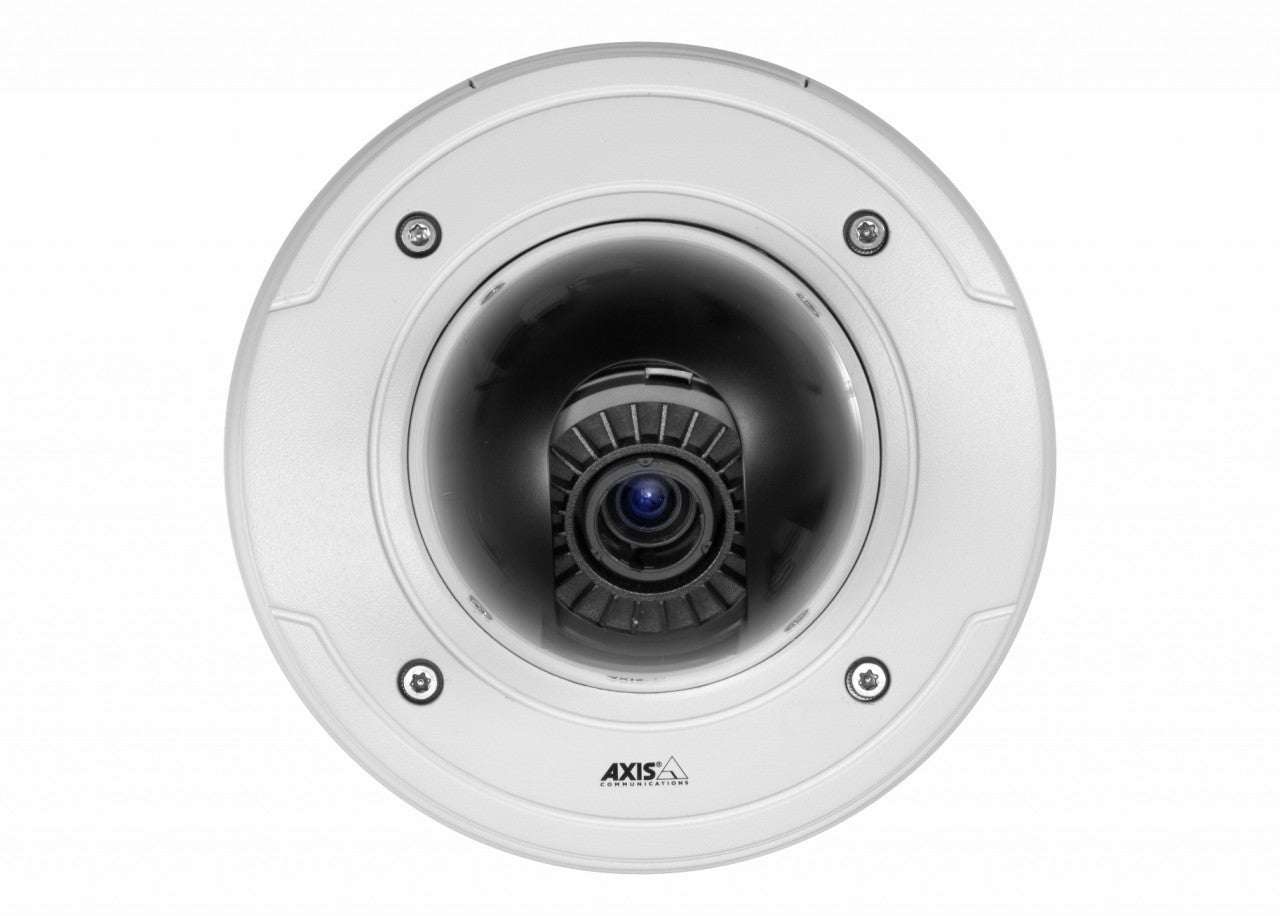

AXIS P3367-VE (0407-001) 5MP Outdoor Dome Network Camera

AXIS P3367-VE Features

• Resolution: 2592x1944 (5 MP) to 160x90
• Image Sensor: Progressive scan RGB CMOS 1/3.2”
• Day/Night: YES
• Mechanical IR Cut Filter: YES
• Minimum Illumination: Color: 0.2 lux, B/W: 0.04 lux, F1.2
• IR Illuminators: NO
• IR Illuminator Range: N/A
• Lens Type: Varifocal, remote focus and zoom, IR corrected, P-Iris control, megapixel resolution
• Focal Length: 3-9 mm
• Zoom: Remote
• Focus: Remote
• Field of View: 84° - 30° horizontal angle of view
• Compression Styles: H.264 Baseline and Main Profile (MPEG-4 Part 10/AVC) Motion JPEG
• Frame Rate: 5 MP capture mode: 12 fps in all resolutions; and capable of all AXIS P3346/-V capture modes
• Image Settings: Compression, color, brightness, sharpness, contrast, white balance, exposure control, exposure zones, backlight compensation, WDR - dynamic contrast, fine tuning of low light behavior Rotation: 0°, 90°, 180°, 270°, including Corridor Format Text and image overlay, privacy mask, mirroring of images
• Privacy Mask: YES
• Built-in Microphone: No
• Audio Capabilities: Two -Way, External microphone input or line input, line output
• Alarm/Event Management: Video motion detection, active tampering alarm, audio detection, support for AXIS Camera Application Platform enabling installation of additional applications, Intelligent video, external input, edge storage events, File upload: FTP, HTTP, network share ad email, Notification: email, HTTP and TCP, External output activation, Video and audio recording to edge storage, Pre- and post-alarm video buffering, play audio clip, ptz preset, guard tour
• ONVIF: YES
• Security: Password protection, IP address filtering, digest authentication, user access log, IEEE 802.1X** network access control, HTTPS** encryption
• On-board Storage: SD/SDHC/SDXC slot supporting memory card up to 64 GB (card not included) Support for recording to network share (network-attached storage or file server)
• Indoor/Outdoor: Outdoor
• Housing/Enclosure Rating: IP66- and NEMA 4X-rated, IK10 impact-resistant casing with aluminum base and dehumidifying membrane, Power over Ethernet IEEE 802.3af, Class 3; max 12.1 W
• Color: White NCS S 1002-B
• Dimensions: Please See Diagram in Pictures
• Weight: 700 g (1.6 lb.)
• Operating Temperature: -40 °C to 55 °C (-40 °F to 131 °F)
• Operating Humidity: 10 - 100% RH (condensing)
• Power: Power over Ethernet IEEE 802.3af or Class 3; max 12.1 W
• Warranty: 3 Year
• What's Included: Installation Guide, Installation and Management Software CD, Windows decoder 1-user license, connector kit, mmounting bracket, 5m (16ft) network cable with pre-mounted gasket, Weather shield, smoked transparent cover

AXIS P3367-VE Overview

The AXIS P3367-VE is a day and night fixed dome network camera that offers superb video performance. Based on Axis’ image processing technology and a very light-sensitive sensor, it provides outstanding light-sensitivity at 5 megapixel resolution.This camera benefits from both large area overview and low-light sensitivity. It delivers full frame rate HDTV 1080p (2592x1944) in compliance with the SMPTE 274M standard in resolution, color representation, 16:9 aspect ratio and frame rate. Multiple H.264 streams, as well as Motion JPEG streams, can be provided simultaneously.The camera also supports digital pan/tilt/zoom and multi-view streaming, where the full view and several areas cropped from the full view can be streamed simultaneously. The remote zoom and pixel counter features ensure that the camera’s angle of view is optimized for the area to be monitored and the required pixel resolution. AXIS P3367-VE also features P-Iris, a new and revolutionary precise iris control system that provides optimal image quality in all lighting conditions. It provides images with better contrast, clarity, resolution and depth of field. Having good depth of field—where objects at different distances from the camera are in focus simultaneously—is important in the video monitoring of, for example, a long corridor or parking lot. It also features wide dynamic range and day/night functionality enable clear images both in daylight and in dark lighting conditions. AXIS P3367-VE with its weather-proof and vandal-resistant casing, is a fixed dome perfectly adapted for harsh environments. It operates in extreme temperatures from -40° to 55° C (-40° to 131 °F), powered by standard Power over Ethernet (IEEE 802.3af) only. It is the perfect solution for video surveillance systems in areas with tough quality and efficiency requirements such as university campuses and railway stations.
