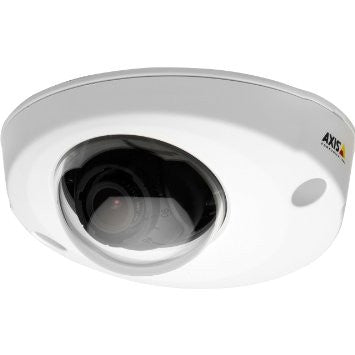

AXIS P3905-R (0639-001) 1080P M12 Mobile Network IP Camera


AXIS P3905-R (0639-001) 1080P M12 Mobile Network IP Camera

Sale price$549.00
SKU: P3905-R (0639-001)

Replaced by: AXIS P3905-R Mk II M12 (01073-001)


AXIS P3905-R Features

  • Resolution: 1920x1080 to 160x90
  • Image Sensor: 1/2.8" progressive scan RGB CMOS
  • Day/Night: No
  • Mechanical IR Cut Filter: No
  • Minimum Illumination: Color: 0.2 lux
  • IR Illuminators: No
  • IR Illuminator Range: N/A
  • Lens Type: M12 mount
  • Focal Length: N/A
  • Zoom: Digital PTZ
  • Iris: Fixed
  • Focus: Manual
  • Field of View: 87° (H), 47° (V), 102° (D)
  • Compression Styles: H.264 Main and Baseline Profiles (MPEG-4 Part 10/AVC), Motion JPEG
  • Frame Rate: 30 fps in all resolutions
  • WDR Technology: Yes
  • Image Settings: Compression, Color, Brightness, Sharpness, Contrast, White balance, Exposure control, Exposure zones, Backlight compensation, Fine tuning of behavior at low light, Wide dynamic range - dynamic contrast, Rotation: 0°, 90°, 180°, 270° including Corridor Format, Text and image overlay, Privacy mask, Mirroring of images, Traffic Light mode, Digital PTZ, Preset Positions, Guard Tour, Control Queue
  • Privacy Mask: Yes
  • Built-in Microphone: No
  • Audio Capabilities: None
  • Alarm/Event Management: Video motion detection, Active tampering alarm, AXIS Camera Application Platform enabling installation of additional applications, Intelligent video, Time scheduled, Edge storage events, File upload: FTP, HTTP, Email Notification: Email, HTTP, TCP, Video recording to edge storage, Pre- and post-alarm video buffering, Status LED activation
  • ONVIF: Yes
  • Security: Password protection, IP address filtering, HTTPS encryption, IEEE 802.1X network access control, digest authentication, user access log
  • Users: N/A
  • On-board Storage: microSD/microSDHC/microSDXC slot supporting memory cards with up to 64 GB of storage (For best recording performance, use an SDHC or SDXC card with speed class 10)
  • Indoor/Outdoor: Indoor
  • Housing/Enclosure Rating: None
  • Dimensions: 107mm (W) x 49mm (H) (4.3" x 1.9")
  • Weight: 269 g (0.59 lb)
  • Operating Temperature: -30°C to 60°C (-22°F to 140°F)
  • Operating Humidity: 10% to 95% RH (non-condensing)
  • Power: Power over Ethernet IEEE 802.3af/802.3at Type 1 Class 2, max. 4.1 W
  • Warranty: 3 Years
  • What's Included: Installation and Management Software CD, Installation guide, Drill hole template, Top cover tool, Lens tool, Allen key resitorx, Windows decoder 1-user license
  • Please Note: TThis model comes with a Rugged, Female, D-coded M12 connector with rotatable coupling nut

AXIS P3905-R Overview

The AXIS P3905-R is a high-performance camera specially designed for mobile video surveillance in buses, trains, subway cars and emergency vehicles. The camera has protection against dust and water, and can withstand tough conditions such as vibrations, shocks, bumps and temperature fluctuations. The active tampering alarm can detect tampering attempts such as blocking or spray-painting. AXIS P3905-R has support for HDTV 1080p. The camera is specially adapted to respond quickly to changes in light levels, ensuring that high image quality is maintained. Traffic Light mode helps to better distinguish colors of traffic lights in very dark scenes. The use of progressive scan also produces clearer images of moving objects. The pixel counter helps verify that the pixel resolution of an object or face meets regulatory or specific customer requirements. The camera is designed for quick and reliable installation. The desired field of view and a leveled image can be easily achieved by using the supplied lens tool to direct and rotate the ball that holds the lens and image sensor. Since the AXIS P39-R Series shares the same physical interface as the preceding model, the AXIS M31-R Series, upgrades of existing installations are quick and easy. Power over Ethernet support further simplifies installation since only one cable is needed for carrying power and video.
