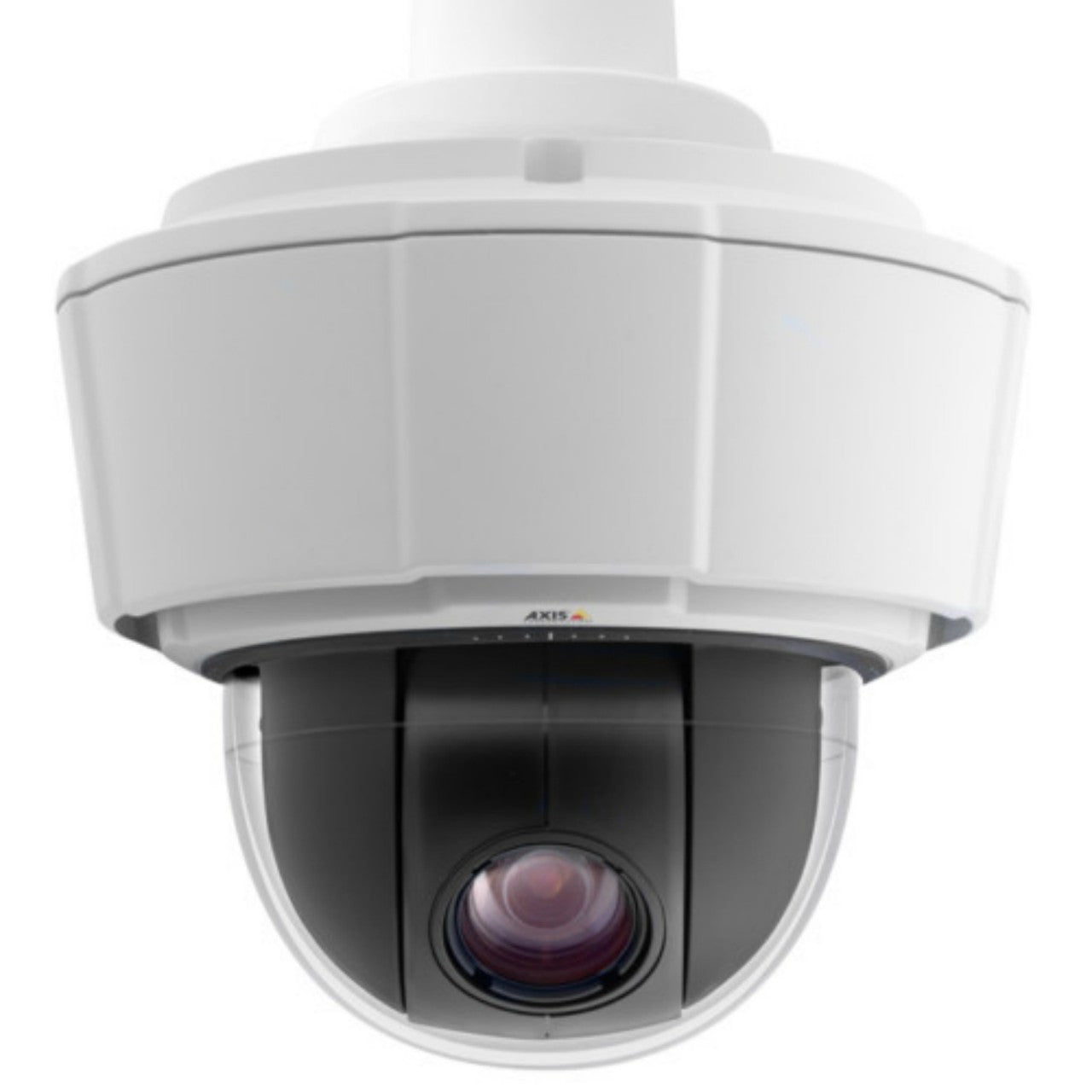

AXIS P5512-E (0411-001) PTZ Dome Network Camera
In-Ceiling Mount
Dimensions
AXIS P5512-E (0411-001) PTZ Dome Network Camera
AXIS P5512-E (0411-001) PTZ Dome Network Camera
AXIS P5512-E (0411-001) PTZ Dome Network Camera

AXIS

AXIS P5512-E (0411-001) PTZ Dome Network Camera

$1,499.00
Discontinued
SKU: P5512-E (0411-001)

Replaced by: AXIS P5514-E 60Hz (0771-001)

Link to Manufacturer's Page

Contact

AXIS P5512-E (0411-001) PTZ Dome Network Camera Features
  • Resolution: 704x480 to 176x120 (60 Hz); 704x576 to 176x144 (50 Hz)
  • Image Sensor: 1/4” CCD
  • Day/Night: Automatic
  • Mechanical IR Cut Filter: Yes
  • Minimum Illumination: Color: 1 lux at 30 IRE F1.6; B/W: 0.3 lux at 30 IRE F1.6
  • IR Illuminators: No
  • IR Illuminator Range: N/A
  • Lens Type: F1.6 – 2.7
  • Focal Length: f=3.8 – 46 mm
  • Zoom: 12x optical zoom and 4x digital zoom, total 48x zoom
  • Iris: N/A
  • Focus: Autofocus
  • Field of View: Horizontal angle of view 51.6° - 4.4°
  • Compression Styles: H.264 (MPEG-4 Part 10/AVC), Motion JPEG
  • Frame Rate: 30/25 fps in all resolutions & compressions
  • Image Settings: Manual shutter time, compression, brightness, sharpness, white balance, exposure control, backlight compensation, fine tuning of behavior at low light, rotation, aspect ratio correction, text and image overlay, image freeze on PTZ
  • Privacy Mask: No
  • Built-in Microphone: No
  • Audio Capabilities: N/A
  • Alarm/Event Management: Video motion detection, PTZ preset, temperature, memory card full, AXIS Camera Application Platform, File upload via FTP, HTTP and email, Notification via email, HTTP and TCP, Go to PTZ preset, run guard tour, record to local storage, Pre- and post-alarm video buffering
  • ONVIF: Yes
  • Security: Password protection, IP address filtering, HTTPS encryption*, IEEE 802.1X network access control, digest authentication, user access log
  • Users: N/A
  • On-board Storage: Yes
  • Indoor/Outdoor: Outdoor
  • Housing/Enclosure Rating: IP66- and NEMA 4X-rated aluminum and plastic casing, sunshield (PC/ASA)
  • Dimensions: In-Ceiling: 22 cm (8.6") x 8 cm (3.2") Hard-Ceiling: 16 cm (6.5") x 17 cm (6.7")
  • Weight: 1.2 kg (2.6 lb.)
  • Operating Temperature: -20 °C to 50 °C (-4 °F to 122 °F)
  • Operating Humidity: 15-100% RH (condensing)
  • Power: Power over Ethernet IEEE 802.3af Class 3
  • Warranty: Three Year
  • What's Included: Smoked dome cover, Installation Guide, Installation and Management Software CD, Windows decoder 1-user license, Sunshield, IP66-rated RJ-45 connector kit
AXIS P5512-E (0411-001) PTZ Dome Network Camera Overview
The outdoor-ready AXIS P5512-E PTZ Network Dome Camera is a compact and affordably priced day and night pan/tilt/zoom camera. It is suitable for surveillance applications in areas such as parking lots, construction sites and business premises. The camera enables users at a remote location to pan 360° for overview surveillance, tilt 180° and zoom in 12x with autofocus for detailed views. The Advanced Gatekeeper functionality enables the camera to automatically move to a preset position when motion is detected in a pre-defined area. The cameras offer 360° pan via Auto-flip, 180° tilt, and 12x optical and 4x digital zoom with autofocus. They also enable guard tours, whereby the cameras can automatically go to different preset positions to check on different areas of a scene. Advanced Gatekeeper enables AXIS P5512/-E cameras to automatically move to a preset position—for instance, zoom in to capture a license plate—when motion is detected in a pre-defined area and return to the home position after a set time.Thanks to the camera's day/night functionality, high image quality is maintained even in low light conditions. AXIS P5512-E provides H.264 and Motion JPEG streams at full frame rate in 4CIF resolution (704x480 in 60 Hz, 704x576 in 50 Hz). H.264 greatly optimizes bandwidth and storage without compromising image quality. AXIS P5512-E supports standard Power over Ethernet for easy installation. The camera simply connects either to a PoE-enabled switch or via a PoE midspan to a switch with one network cable for carrying power, video and PTZ controls. The camera also has IP66 and NEMA 4X ratings, which ensure protection against dust, rain, snow, ice and corrosion. It can operate in temperatures from -20 °C to 50 °F (-4 °F to 122 °F). AXIS P5512/-E cameras have IP ratings, in addition to a NEMA rating for the outdoor cameras, ensuring reliable operation in indoor or outdoor environments. No additional enclosures are required. The cameras are also designed with easy bayonet mounting to Axis’ standard mounting accessories for ceiling, wall, pole or corner installations.
