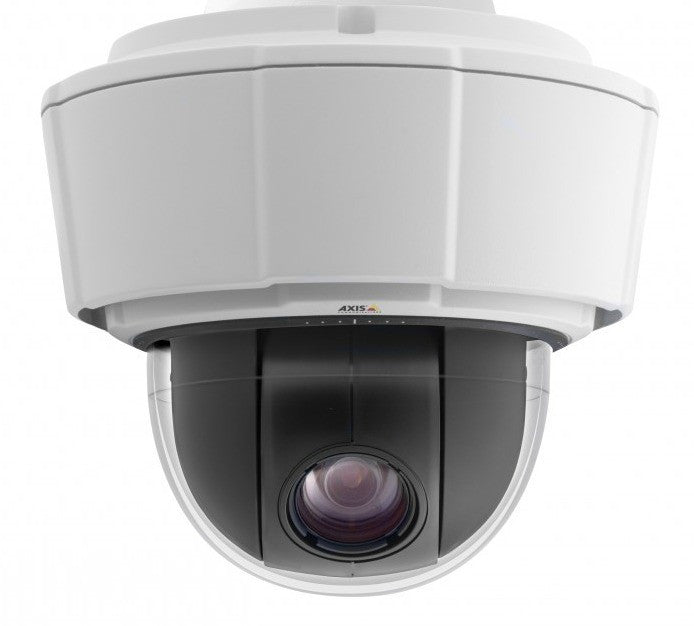

AXIS P5532-E (0312-004) PTZ Dome Network Camera
Axis P5532-E on the Pendant Mount
Axis P5532-E on the Wall Mount
Outdoor CAT-6 Ethernet cable that is included
AXIS P5532-E (0312-004) PTZ Dome Network Camera


AXIS P5532-E (0312-004) PTZ Dome Network Camera

Sale price$2,199.00
SKU: P5532-E (0312-004)

Replaced by: AXIS P5624-E (0671-001)


AXIS P5532-E (0312-004) PTZ Dome Network Camera Features

  • Resolution: 720x480 to 176x120 (60 Hz); 720x576 to 176x144 (50 Hz)
  • Image Sensor: 1/4" ExView HAD progressive scan CCD
  • Day/Night: Automatic
  • Mechanical IR Cut Filter: No
  • Minimum Illumination: Color: 0.5 lux at 30 IRE F1.4; B/W: 0.01 lux at 30 IRE F1.4
  • IR Illuminators: No
  • IR Illuminator Range: N/A
  • Lens Type: F1.43 – 3.67
  • Focal Length: f=3.6 – 104.4 mm
  • Zoom: 29x optical zoom and 12x digital zoom, total 348x zoom
  • Iris: N/A
  • Focus: Autofocus
  • Field of View: 53.1° - 2.0°
  • Compression Styles: H.264 (MPEG-4 Part 10/AVC), Motion JPEG
  • Frame Rate: 30/25 fps in all resolutions
  • Image Settings: Wide dynamic range (WDR), electronic image stabilization (EIS), manual shutter time, compression, color, brightness, sharpness,white balance, exposure control, exposure zones, backlight compensation, fine tuning of behavior at low light, rotation, aspect ratio correction, text and image overlay, 3D privacy mask, image freeze on PTZ
  • Privacy Mask: No
  • Built-in Microphone: Yes
  • Audio Capabilities: One-way Audio Streaming
  • Alarm/Event Management: Video motion detection, audio detection, AXIS Camera Application Platform, PTZ preset, memory card full, File upload via FTP, HTTP and email, Notification via email, HTTP and TCP, Go to PTZ preset, Video and audio recording to edge storage, Pre- and post-alarm video buffering
  • ONVIF: Yes
  • Security: Password protection, IP address filtering, HTTPS encryption*, IEEE 802.1X network access control, digest authentication, user access log
  • Users: N/A
  • On-board Storage: Yes
  • Indoor/Outdoor: Outdoor
  • Housing/Enclosure Rating: IP66 and NEMA 4X-rated metal casing (aluminum), acrylic (PMMA) clear dome, sunshield (PC/ASA)
  • Dimensions: 21 cm (8.3") x 21 cm (8.3")
  • Weight: 2.0 kg (4.4 lb.)
  • Operating Temperature: -20 °C to 50 °C (-4 °F to 122 °F)
  • Operating Humidity: 10 - 100% RH (condensing)
  • Power: High Power over Ethernet (High PoE) IEEE 802.3at, max. 30 W
  • Warranty: Three Years
  • What's Included: AXIS T8123 High PoE Midspan 1-port, IP66-rated RJ-45 connector kit, smoked dome cover, Installation Guide, Installation and Management Software CD, Windows decoder, 1-user license

AXIS P5532-E (0312-004) PTZ Dome Network Camera Overview

The AXIS P5532-E PTZ dome network camera is an outdoor camera that offers protection in severe weather conditions. It carries an IP66 rating, making it ideal for monitoring locations such as the outside of warehouses, malls and public transit stations. The camera is also equipped with full day and night functionality, allowing it to capture images in situations where lighting conditions are low. This camera also has powerful zoom functions and provides the ability to follow moving objects within the frame.
The AXIS P5532-E PTZ dome network camera can provide multiple video streams simultaneously. The camera uses two codecs, H.264 and Motion JPEG, both of which optimize bandwidth usage while providing crisp image quality. The camera also has the ability to pan a full 360 degrees. If the device follows an object or person underneath the camera, the image is automatically corrected for inversion. The AXIS P5532-E PTZ dome network camera is also capable of providing 29x optical zoom and 12x digital zoom. Combined with the camera’s powerful autofocus capabilities, this allows the user to zoom in on distant objects and action with excellent clarity.
Setting up the AXIS P5532-E PTZ dome network camera is made easy by the camera’s compatibility with Power over Ethernet (PoE) technology. This allows the camera to receive power directly from its network connection, reducing the costs and complexities of installation.
