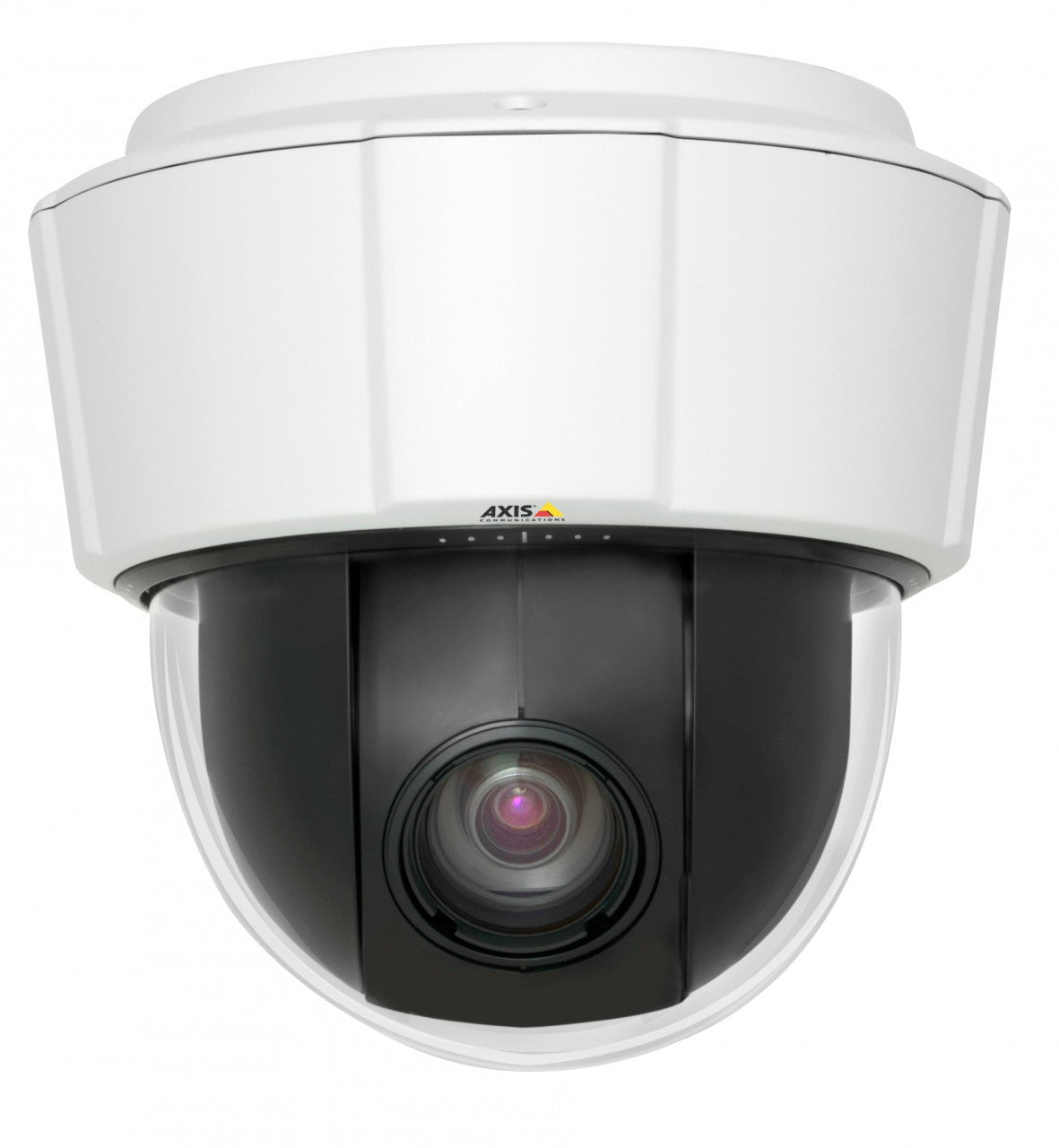

AXIS P5534 (0314-004) PTZ Dome Network Camera
AXIS P5534 with Axis T91A61 Wall Bracket
AXIS P5534 with Axis T91A61 Wall Bracket
Drop-ceiling mount
AXIS P5534 with T91A63 Ceiling Bracket
Dimensions
AXIS P5534 (0314-004) PTZ Dome Network Camera

AXIS

AXIS P5534 (0314-004) PTZ Dome Network Camera

Sale price$1,999.00
Discontinued
SKU: P5534 (0314-004)

Replaced by: AXIS P5624-E / If audio, IO or external power are used: AXIS P5635-E (0671-001 / 0670-001)

Discontinued.

AXIS P5534 (0314-004) PTZ Dome Network Camera Features
  • Resolution: HDTV 720p 1280x720 to 320x180
  • Image Sensor: 1/3" progressive scan CCD 1.3 megapixel
  • Day/Night: Automatic
  • Mechanical IR Cut Filter: Yes
  • Minimum Illumination: Color: 0.74 lux at 30 IRE F1.6; B/W: 0.04 lux at 30 IRE F1.6
  • IR Illuminators: No
  • IR Illuminator Range: N/A
  • Focal Length: f=4.7 – 84.6 mm
  • Zoom: 18x optical zoom and 12x digital zoom, total 216x zoom
  • Iris: N/A
  • Focus: Auto focus
  • Field of View: Horizontal angle of view 55.2° - 3.2°
  • Compression Styles: H.264 (MPEG-4 Part 10/AVC), Motion JPEG
  • Frame Rate: 30/25 fps in all resolutions & compressions
  • Image Settings: Wide dynamic range (WDR), manual shutter time, compression, color, brightness, sharpness,white balance, exposure control, exposure zones, backlight compensation, fine tuning of behavior at low light, rotation, text and image overlay, 3D privacy mask, image freeze on PTZ
  • Privacy Mask: No
  • Built-in Microphone: No
  • Audio Capabilities: Two-way Audio, Requires multi-connector cable (not included) for external microphone input or line input and line output
  • Alarm/Event Management: Video motion detection, audio detection, AXIS Camera Application Platform, PTZ preset, memory card full, File upload via FTP, HTTP and email, Notification via email, HTTP and TCP, Go to PTZ preset, Video and audio recording to edge storage, Pre- and post-alarm video buffering
  • ONVIF: Yes
  • Security: Password protection, IP address filtering, HTTPS encryption*, IEEE 802.1X network access control, digest authentication, user access log
  • Users: N/A
  • On-board Storage: Yes
  • Indoor/Outdoor: Indoor
  • Housing/Enclosure Rating: IP51-rated, metal casing (aluminum), acrylic (PMMA) clear dome
  • Dimensions: 19.5 x 18.3 x 18.3 cm (7.7" x 7.2" x 7.2")
  • Weight: 1.9 kg (4.2 lb.), 2.3 kg (5.1 lb.) with drop-ceiling mount
  • Operating Temperature: 0 °C to 50 °C (32 °F to 122 °F)
  • Operating Humidity: 18 - 85% RH (condensing)
  • Power: Power over Ethernet Plus (PoE+) IEEE 802.3at, max. 30 W; 20-24 V AC, max. 23.6 VA; 24-34 V DC, max. 17 W; AXIS T8123 High PoE Midspan 1-port: 100-240 V AC, max. 37 W
  • Warranty: Three Years
  • What's Included: AXIS T8123 High PoE Midspan 1-port, mounting kit for hard and drop ceilings, smoked dome cover, Installation Guide, Installation and Management Software CD, Windows decoder 1-user license
AXIS P5534 (0314-004) PTZ Dome Network Camera Features

The AXIS P5534 (0314-004) PTZ dome network camera is an HD camera suitable for monitoring in indoor environments where dust and water are hazards. It carries an IP51 rating, ensuring that the camera is insulated against damage from dripping water and dust. This makes the AXIS P5534 PTZ dome network camera appropriate for use in locations such as malls, warehouses, public transit stations and schools. The camera is also capable of providing excellent images in conditions where light levels are very low. The AXIS P5534 PTZ dome network camera provides images that meet SMTPE standards for color fidelity and clarity. The camera uses the 16:9 format at a resolution of 1280x720 resolution. The camera is capable of delivering multiple streams over the network simultaneously. It uses both the H.264 and Motion JPEG formats. H.264 provides very clear images while minimizing bandwidth consumption. Motion JPEG ensures that that device is compatible with a wide range of other technologies. The AXIS P5534 PTZ dome network camera can pan 360 degrees without interruption. The camera also comes with Advanced Gatekeeper functionality. This allows the AXIS P5534 PTZ dome network camera to automatically follow moving objects and persons when they enter the frame. This camera is also provided with High Power over Ethernet technology and comes with a midspan for the device.
