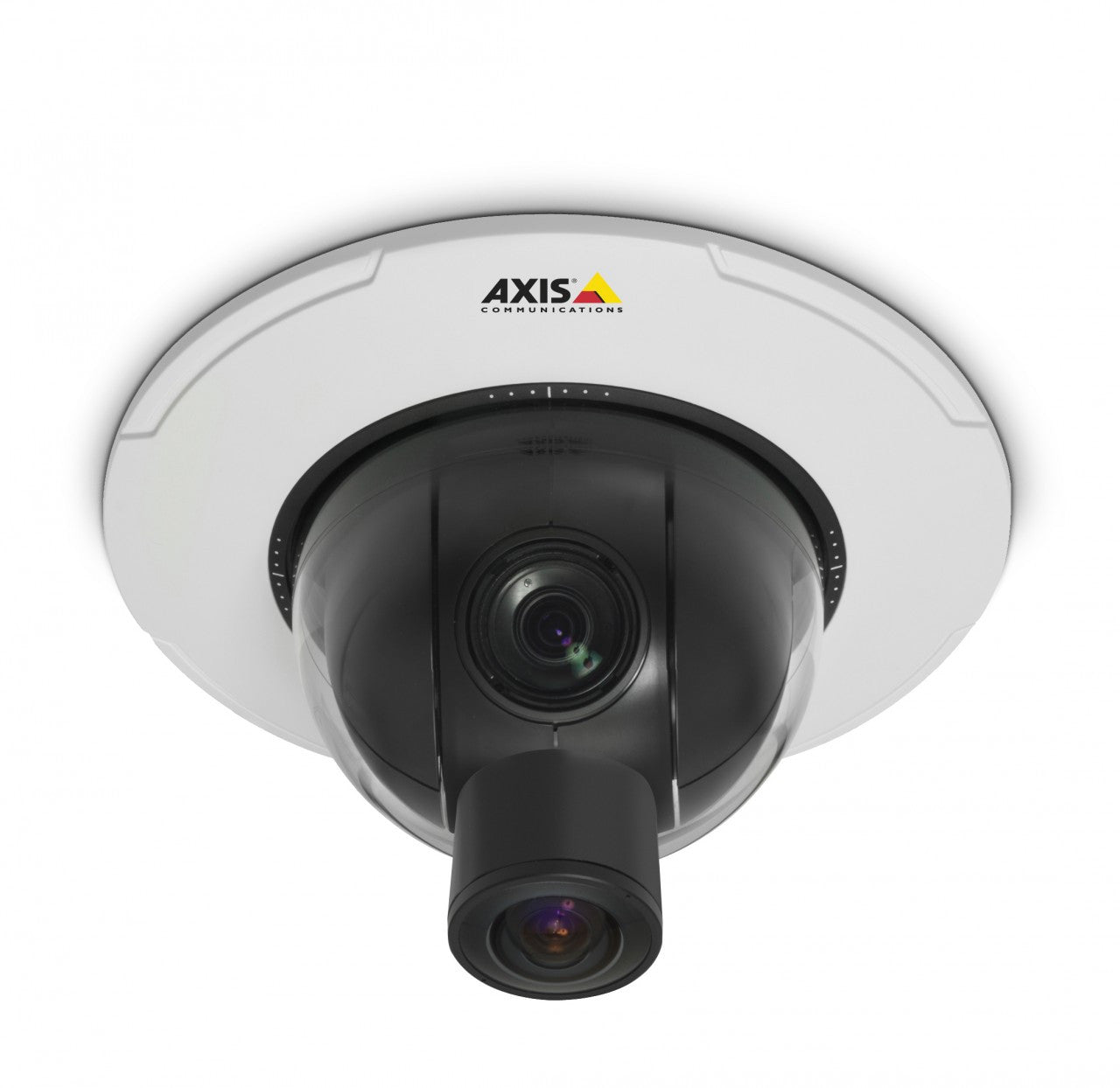

AXIS P5544 (0443-004) PTZ Dome Network Camera

Discontinued.

AXIS P5544 (0443-004) PTZ Dome Network Camera Features

• Resolution: HDTV 720p 1280x720 to 320x180
• Image Sensor: 1/3" progressive scan CCD 1.3 megapixel
• Day/Night: YES
• Mechanical IR Cut Filter: YES
• Minimum Illumination: Color: 0.74 lux at 30 IRE F1.6, B/W: 0.04 lux at 30 IRE F1.6
• IR Illuminators: NO
• IR Illuminator Range: N/A
• Lens Type: Vari-Focal
• Focal Length: f=4.7 – 84.6 mm
• Zoom: 18x optical zoom and 12x digital zoom, total 216x zoom
• Pan Range: Pan: 360° (with Auto-flip), 0.2° - 300°/s
• Tilt Range: Tilt: 180°, 0.2° – 300°/s
• Focus: Autofocus
• Field of View: Horizontal angle of view: 55.2° - 3.2°
• Compression Styles: H.264 (MPEG-4 Part 10/AVC) Motion JPEG
• Frame Rate: H.264 & Motion JPEG : Up to 30/25 fps (60/50 Hz) in all resolutions
• Image Settings: Wide dynamic range (WDR), manual shutter time, compression, color, brightness, sharpness, white balance, exposure control, exposure zones, backlight compensation, fine tuning of behavior at low light, text overlay, image freeze on PTZNormal mode: Image overlay
• Privacy Mask: 3D privacy mask
• Built-in Microphone: NO
• Audio Capabilities: Requires multi-connector cable (sold separately) for external microphone input or line input and line output
• Alarm/Event Management: Video motion detection, audio detection, external input, PTZ preset, temperature, memory card full, AXIS Camera Application Platform, File upload via FTP, HTTP and email Notification via email, HTTP and TCP External output, PTZ preset, video recording to edge storage, play audio clip Pre- and post-alarm video buffering
• ONVIF: YES
• Security: Password protection, IP address filtering, HTTPS* encryption, IEEE 802.1X* network access control, digest authentication, user access log
• On-board Storage: SD/SDHC memory card slot (card not included) Support for recording to network share (network-attached storage or file server
• Indoor/Outdoor: Indoor
• Housing/Enclosure Rating: IP51-rated, metal casing (aluminum), acrylic (PMMA) clear dome
• Dimensions:Camera with hard ceiling mount - Height x Width x Depth: 235 x 183 x 183 mm (9.3" x 7.2" x 7.2") Camera with drop ceiling mount - Height x Width x Depth: 235 x 238 x 238 mm (9.3" x 9.4" x 9.4")
• Weight: Camera: 1.9 kg (4.2 lb.), Camera with drop-ceiling mount: 2.3 kg (5.1 lb.)
• Operating Temperature: 0 °C to 50 °C (32 °F to 122 °F)
• Operating Humidity: 20 - 80% RH (non-condensing
• Power: Power over Ethernet Plus (PoE+) IEEE 802.3at, max. 30 W 20-24 V AC, max. 23.6 VA, 24-34 V DC, max. 17 W, (AXIS T8123 High PoE Midspan 1-port: 100-240 V AC, max. 37 W)
• Warranty: 3 Year
• What's Included: AXIS T8123 High PoE Midspan 1-port, mounting kit for hard and drop ceilings, Installation Guide, Installation and Management Software CD, Windows decoder 1-user license

AXIS P5544 (0443-004) PTZ Dome Network Camera Overview

AXIS P5544 PTZ Dome Network Camera is a unique indoor HDTV pan/tilt/zoom dome with 360° panoramic view and 18x optical zoom. It is ideal for live monitoring applications at airports, train stations, logistics centers, museums and big retail stores. AXIS P5544 provides a 360° field of view that covers more than 950 m² (10,000 sq. ft.) - more than the size of three tennis courts - enabling panoramic views not only for security purposes, but also for crowd, flow and queue management. With the capability to also pan 360°, tilt 180° and optically zoom in 18x, the camera enables flexible coverage over a wide area and sharp zoomed-in views for identification purposes in HDTV 720p. Using Axis’ unique Panopsis technology, AXIS P5544 incorporates two different lenses to ensure that there is no loss in image quality, whether in the 360° panoramic view or zoomed-in view. The user interface is also unique, with two viewing modes and features that enable the operator to quickly get to an area of interest for efficient monitoring of a wide area. The camera's day/night functionality ensures high image quality in both daylight and low light conditions. Multiple streams in H.264 and Motion JPEG formats are supported. AXIS P5544 provides Advanced Gatekeeper, which enables the camera to automatically move to a preset position when motion is detected in a pre-defined area. The camera also supports AXIS Camera Application Platform that enables the installation of additional intelligent video applications. Two-way audio, audio detection and inputs/outputs for external devices are supported when an optional multi-connector cable is used. The IP51-rated camera also supports Power over Ethernet Plus (PoE+) for easy installation. AXIS P5544 comes with a mounting kit for hard and drop ceilings.
