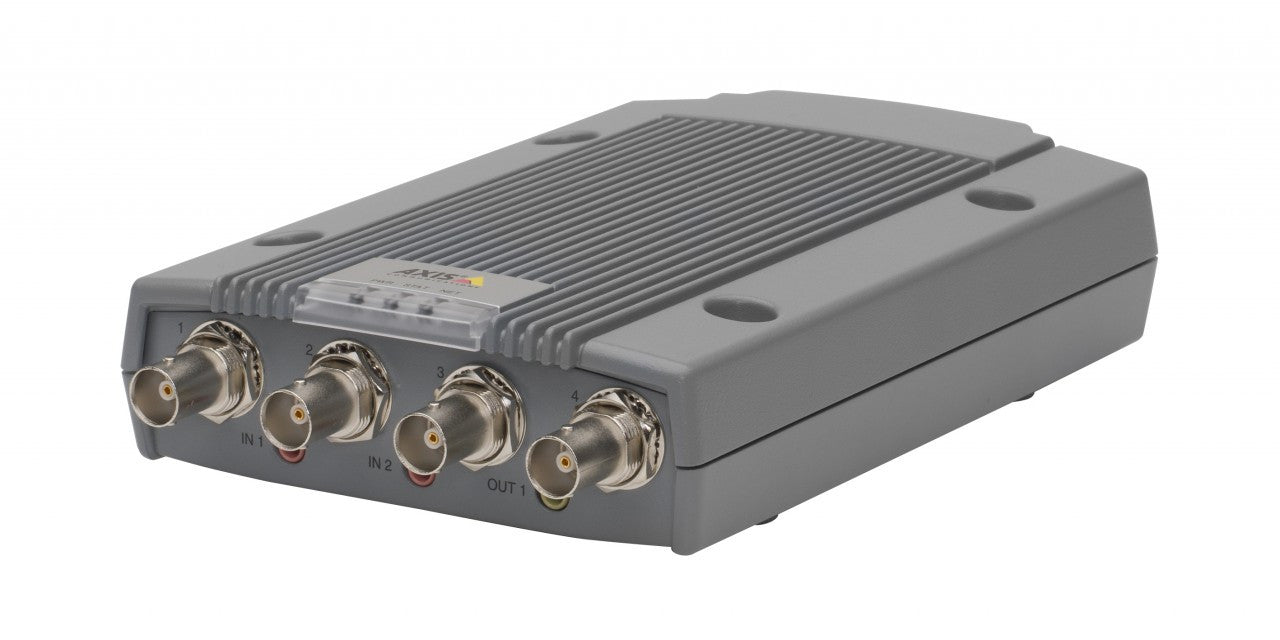

AXIS P7214 (0417-004) Video Encoder
Replaced by: AXIS P7304 (01680-001)
AXIS P7214 Features
- Resolution: 176x120 to 720x576,176x120 to 1536x1152 for quad view
- Channels: 4
- Compression Styles: H.264 (MPEG-4 Part 10/AVC) Baseline and Main Profile, Motion JPEG
- Frame Rate: 30/25 (NTSC/PAL) fps, 15 fps in all resolutions
- Image Settings: Compression, color, brightness, contrast; Rotation: 90°, 180°, 270°; Aspect ratio correction, mirroring of images, text and image overlay, privacy mask, enhanced deinterlace filter, video termination, antialiasing, temporal noise filtering
- Privacy Mask: Yes
- Audio Capabilities: Two-way, full duplex and half duplex, External microphone input or line input, Line level output, Audio streaming, record (AU) and play uploaded (WAV, AU) clips
- Connectors: DC input terminal block; RJ-45 10BASE-T/100BASE-TX PoE; Terminal block for four configurable external inputs/outputs; Terminal block for RS-485/422 (full duplex); 2 x 3.5mm jacks for microphone or line input (mono); 3.5mm jack for audio output (mono)
- Alarm/Event Management: Intelligent video, video loss; File upload via FTP, HTTP and email, Notification via email, HTTP and TCP, PTZ preset
- Security: Password protection, IP address filtering, HTTPS* encryption, IEEE 802.1X* network access control, digest authentication, user access log
- On-board Storage: Yes, One card slot, MicroSD/microSDHC/microSDXC slot supporting memory card up to 64 GB (card not included)
- Processor and Memory: ARTPEC-4, 512 MB RAM, 128 MB Flash
- Dimensions: 109mm (W) x 37mm (H) x 160mm (L) (4.3" x 1.5" x6.3")
- Weight: 570 g (1.26 lb.)
- Operating Temperature: 0 – 50 °C (32 – 122 °F)
- Operating Humidity: 20 – 80% RH (non-condensing)
- Power: 8-20 V DC, max 7W; Power over Ethernet IEEE 802.3af Class 3
- Warranty: 1 Year
- What's Included: Power supply, mounting and connector kits, Installation Guide, CD with installation and management tools, software and User’s Manual, Windows decoder user licenses.
AXIS P7214 Overview
AXIS P72 Video Encoder Series offers powerful, full-featured and efficient integration of analog cameras into an IP-based video surveillance system and is ideal for locations such as gas stations, convenience stores and small offices. AXIS P72 Series enables a cost-effective way to gain all the benefits of professional network video without discarding existing analog investments. The video encoders offer advanced network capabilities with great video performance and excellent audio quality. AXIS P72 Video Encoder Series comprises two 4-channel models and one 16-channel model providing H.264 and Motion JPEG streams. The support for H.264 offers a superb video compression format that drastically reduces bandwidth and storage requirements without compromising image quality. All video encoders in AXIS P72 Series offer one H.264 and one Motion JPEG stream per channel at full frame rate in all resolutions up to D1 (720x480 NTSC or 720x576 PAL). AXIS P72 Series offers intelligent video capabilities such as video motion detection, active tampering alarm and two-way audio with audio detection. AXIS P72 Series includes support for Power over Ethernet (IEEE 802.3af), which enables the encoders to receive power through the network cable. All Axis video encoder products also provide pan, tilt and zoom support, enabling control of analog PTZ cameras. The standalone versions also have microSDHC memory card slots for edge storage.
