AXIS P8514 HD Eye-level Covertly Mounted Network Camera

Sale price$649.00
Discontinued
SKU: P8514

AXIS P8514 Features

  • Resolution: 1280x800 to 160x90
  • Image Sensor: 1/4” progressive scan RGB CMOS
  • Day/Night: No
  • Mechanical IR Cut Filter: No
  • Minimum Illumination: 1 lux
  • IR Illuminators: No
  • IR Illuminator Range: N/A
  • Lens Type: Fixed
  • Focal Length: 3.7 mm, F1.8
  • Zoom: N/A
  • Iris: N/A
  • Focus: N/A
  • Field of View: 57° view
  • Compression Styles: H.264 (MPEG-4 Part 10/AVC), Motion JPEG
  • Frame Rate: 30 fps in all resolutions
  • Image Settings: Compression, color, brightness, sharpness, contrast, white balance, exposure control, exposure zones, backlight compensation, wide dynamic range - dynamic contrast, fine tuning of behavior at low light, mirroring of images, Rotation: 0°,90°, 180°, 270°, Text and image overlay, privacy mask
  • Privacy Mask: Yes
  • Built-in Microphone: No
  • Audio Capabilities: N/A
  • Alarm/Event Management: Video motion detection, active tampering alarm, Intelligent video, File upload via FTP, HTTP and email; notification via email, HTTP and TCP; pre- and post-alarm video buffering
  • ONVIF: Yes
  • Security: Password protection, IP address filtering, digest authentication, HTTPS** encryption, IEEE 802.1X**, user access log
  • Users: N/A
  • On-board Storage: No
  • Indoor/Outdoor: Indoor
  • Housing/Enclosure Rating: N/A
  • Dimensions: 2830 x 51 mm (111.4” x 2”)
  • Weight: 4.5 kg (9.9 lb.)
  • Operating Temperature: 0 °C to 50 °C (32 °F to 122 °F)
  • Operating Humidity: N/A
  • Power: Power over Ethernet IEEE 802.3af Class 1, max. 3.2 W
  • Warranty: No
  • What's Included: Clamps, Installation Guide, Height indicator decal premounted/included

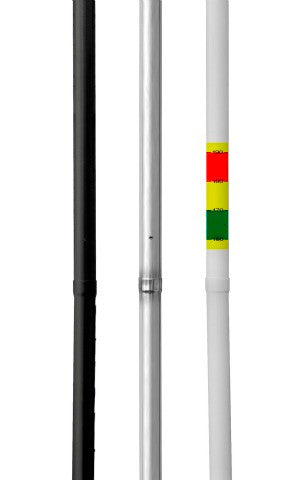

  • Notes: Available in White (0454-004), Black (0455-004), and Chrome (0456-001)

AXIS P8514 Overview

The Axis P8514 covert indoor surveillance camera is designed for monitoring at eye-level near entrances, exits, and other building pinch points. The unique pole mount available in while, black, and chrome hides the camera’s pinhole viewer making it inconspicuous to passers-by in retail stores, banks, and high-security buildings such as hospitals where clear face-level pictures and video are vital. The Axis P8514’s unusual mount and discreet design is new to the video surveillance market ; not only does this make the camera useful in terms of being unobtrusive in high-traffic areas but it’s disguise also helps prevent vandalism of the camera.

Ideally placed at a level of 160 cm, or 5.2 feet, the Axis P8514 camera is easily installed at eye level where it captures sharp images that are ideal for identification. Capable of providing multiple H.264 video streams, the Axis P8514 offers excellent video quality in HDTV 720p at full frame rate. The camera is also capable of supporting 1 Megapixel and HDTV 720p in both MJPEG and H.264 streams. With its Power over Ethernet, or PoE, technology, the Axis P8514 surveillance camera can be operated from a remote location where power may otherwise be unavailable. The camera also comes complete with a pre-mounted Ethernet cable, thereby making the installation process even easier. With its advanced security and network management features, which include HTTPS encryption with preserved performance, Quality of Service and IPv6, the Axis P8514 offers secure transmission of data. Whether viewing the video footage onsite or from afar, the Axis P8514 offers the technology to do it safely and securely.
