AXIS P8804 (01007-001)
AXIS P8804 (01007-001) with optional recess mount
AXIS P8804 (01007-001)
AXIS P8804 (01007-001)
AXIS P8804 (01007-001) Stereo Sensor Kit

AXIS

AXIS P8804 (01007-001) Stereo Sensor Kit

Sale price$499.00
Discontinued
SKU: P8804 (01007-001)

Replaced by: Contact Axis Sales (N/A)

Contact

Features

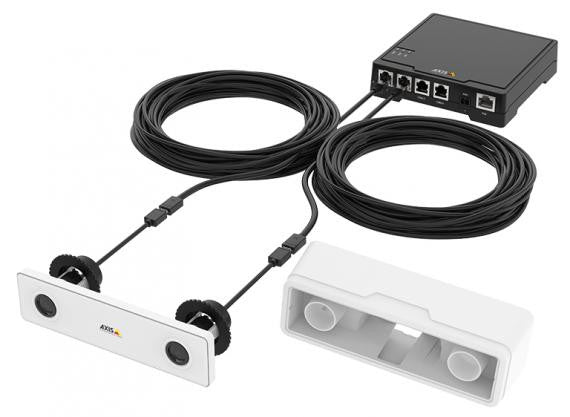

  • AXIS P8804 Stereo Sensor Kit provides synchronized stereo imaging from an AXIS F8804 Stereo Sensor Unit and an AXIS F34 Main Unit.
  • Stereoscopic imaging that enables precision counting with compatible analytics software
  • Option of recessed mount for a discreet installation or surface mount
  • Please note: this kit includes the required F Main Unit

Overview

Stereo imaging enables the creation of a three-dimensional depth map that helps improve the accuracy of analytics such as people counting. A 3D depth map enables such applications to overcome challenging situations where there are shadows, strong sunlight, glares or high flows of people to or from a location.

A depth map can allow an analytics software to define the height of objects to be counted and thereby avoid counting irrelevant objects such as carts and strollers. In addition, there is no need to remove merchandise, displays or shelves in the counting zone.

The stereo sensor unit is designed to be mounted indoors in ceilings – either recessed in a drop ceiling for a discreet installation, or surface-mounted with the included adapter.

A compatible analytics software would run on the main unit, which can be installed up to 8 meters (26 ft) from the sensor unit. The main unit can be powered through Power over Ethernet (PoE) or low voltage DC. AXIS P8804 is ideal for use in stores, banks, stations and airports.
