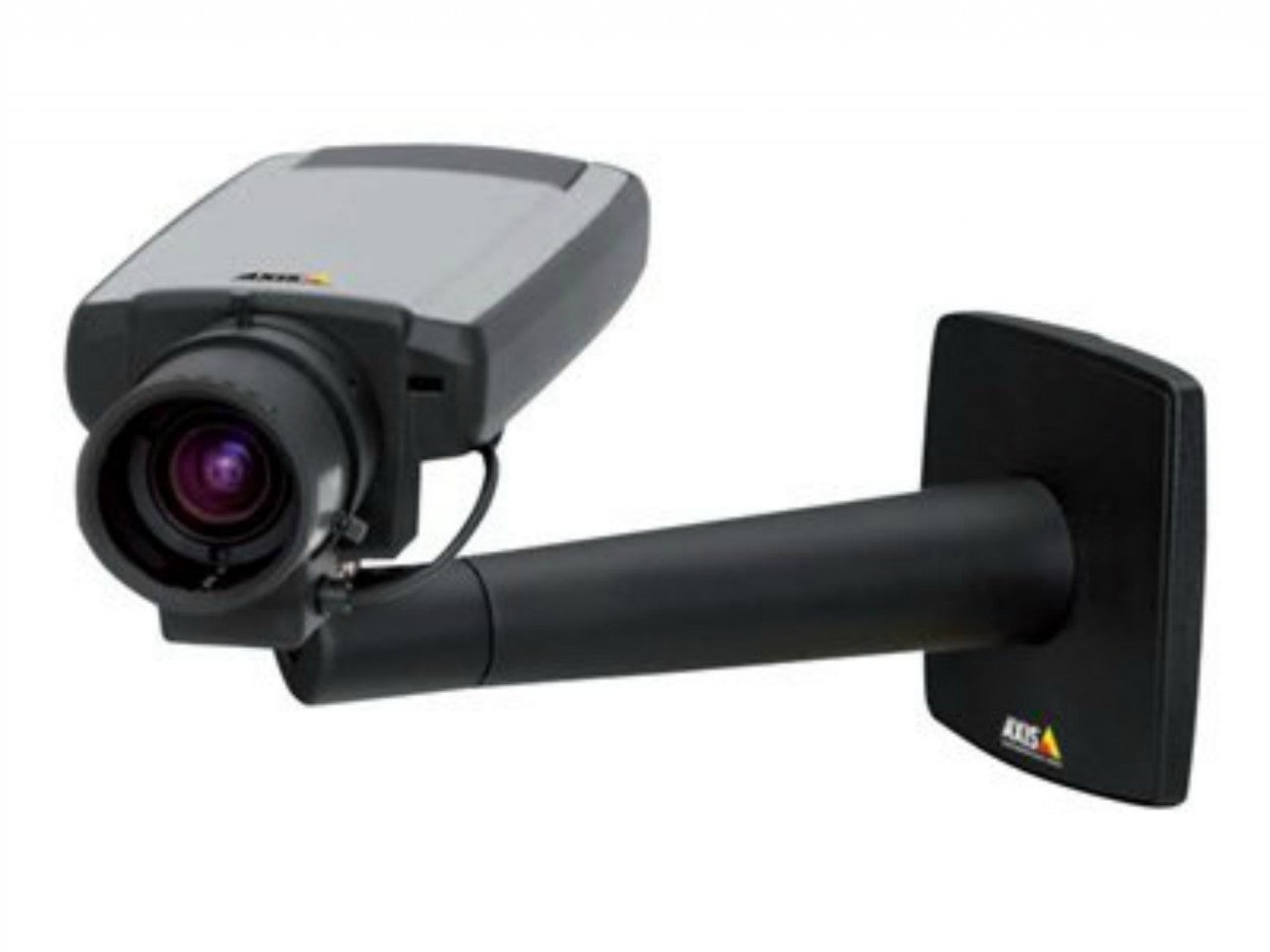

AXIS Q1602 (0437-001) PTZ Network Camera
AXIS Q1602 (0437-001) PTZ Network Camera
AXIS Q1602 (0437-001) PTZ Network Camera

AXIS

AXIS Q1602 (0437-001) PTZ Network Camera

Sale price$899.00
Discontinued
SKU: Q1602 (0437-001)

Replaced by: AXIS Q1614 NETWORK CAMERA (0550-001)

Discontinued, replaced by Q1602.

AXIS Q1602 Features

  • Resolution: 768x576 to 160x90
  • Image Sensor: Progressive scan RGB CMOS 1/3”
  • Day/Night: Yes
  • Mechanical IR Cut Filter: Yes
  • Minimum Illumination: Color: 0.05 lux, F1.2, B/W: 0.008 lux, F1.2
  • IR Illuminators: No
  • IR Illuminator Range: N/A
  • Lens Type: Varifocal
  • Focal Length: 2.8 - 8 mm F1.2
  • Zoom: N/A
  • Iris: P-Iris
  • Focus: N/A
  • Field of View: 100° - 34°
  • Compression Styles: H.264 Main and Baseline Profile (MPEG-4 Part 10/AVC) Motion JPEG
  • Frame Rate: 30 fps in all resolutions
  • Image Settings: Compression, color, brightness, sharpness, contrast, white balance, exposure control, exposure zones, backlight compensation, fine tuning of behavior at low light, wide dynamic range - dynamic contrast, Rotation: 0°, 90°, 180°, 270° and Corridor Format, Text and image overlay, privacy mask and mirroring of images
  • Privacy Mask: Yes
  • Built-in Microphone: Yes, can be disabled
  • Audio Capabilities: Two-way, External microphone input or line input, line output
  • Alarm/Event Management: Video motion detection, active tampering alarm, audio detection, support for AXIS Camera Appllication Platform emabling installation of additional application, Intelligent video, external input, edge storage events, File upload: FTP, HTTP, network share and email, Notification: email, HTTP and TCP, External output activation, Video and audio recording to edge storage, Pre- and post-alarm video buffering, Play audio clip
  • ONVIF: Yes
  • Security: Password protection, IP address filtering, HTTPS encryption**, IEEE 802.1X network access control**, digest authentication, user access log
  • Users: No
  • On-board Storage: Yes, SD/SDHC/SDXC slot supporting memory card up to 64 GB
  • Indoor/Outdoor: Indoor
  • Housing/Enclosure Rating: N/A
  • Dimensions: 78mm (W) x 46mm (H) x 151mm (L) (3.1" x 1.8" x 6.0")
  • Weight: 0.6 kg (1.3 lb.)
  • Operating Temperature: 0 °C to 50 °C (32 °F to 122 °F)
  • Operating Humidity: Humidity 10 - 85% RH (non-condensing)
  • Power: 8-20 V DC or Power over Ethernet (PoE) IEEE 802.3af, max. 6.5 W, PoE Class 3
  • Warranty: 3 Years
  • What's Included: Stand, connector kit, Installation Guide, Installation and Management Software CD, recording software and User Manual, Windows decoder, 1-user license

AXIS Q1602 Overview

Setting the focus on AXIS Q16 Series is made easy with the focus assistant, which indicates with a flashing green LED when an image is in focus after manually adjusting the lens. Additionally, it offers remote back focus, which allows the focus to be fine-tuned from a computer. The pixel counter further helps the installer verify that the pixel resolution of an object fulfills regulatory or customer requirements, for example, for facial identification. AXIS Q1602 incorporate Axis’ revolutionary Lightfinder technology. The outstanding performance in low light is the result of well-founded decisions regarding the sensor and lens combined with carefully tuned image processing. Compared with any analog or network cameras, the Lightfinder technology will give more life-like colors in low-light conditions. The noise reduction of the Lightfinder technology is vastly improved compared with any surveillance camera on the market, which in combination with the light sensitivity of the sensor gives a superior image quality.
