AXIS Q1604-E
AXIS Q1604-E Front View
AXIS Q1604-E Left View
Q1604-E diagram

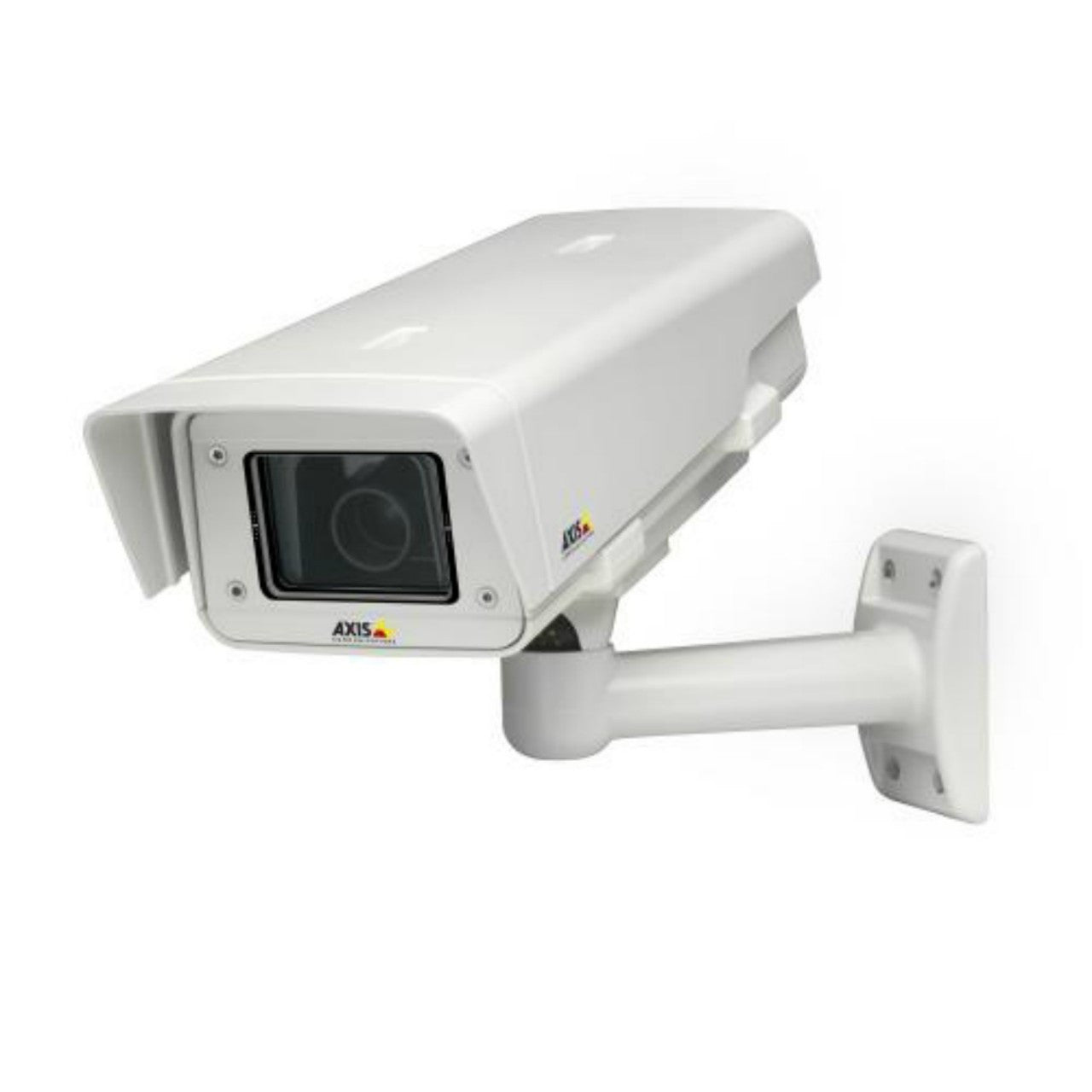

AXIS Q1604-E (0463-001) Outdoor Network Camera


AXIS Q1604-E (0463-001) Outdoor Network Camera

Sale price$1,299.00
SKU: Q1604-E (0463-001)


AXIS Q1604-E Features

  • Resolution: 1280x960* (1 MP) to 160x90; 1400x1050 (1.4 MP) scaled resolution available via VAPIX®
  • Image Sensor: 1/3" Progressive scan RGB CMOS
  • Day/Night: Yes
  • Mechanical IR Cut Filter: Yes
  • Minimum Illumination: Color: 0.1 lux, F1.2, B/W: 0.02 lux, F1.2; Color: 0.4 lux, F1.2, B/W: 0.06 lux, F1.2 with dynamic capture
  • IR Illuminators: No
  • IR Illuminator Range: N/A
  • Lens Type: Varifocal
  • Focal Length: 2.8 - 8 mm
  • Zoom: N/A
  • Iris: P-iris Lens
  • Focus: Focus assist with remote back focus
  • Field of View: 80° - 34° view Horizontal
  • Compression Styles: H.264 Main and Baseline Profile (MPEG-4 Part 10/AVC) Motion JPEG
  • Frame Rate: 30 fps in 60Hz capture mode, 25 fps in 50Hz capture mode
  • Image Settings: Compression, color, brightness, sharpness, contrast, white balance, exposure control, exposure zones, backlight compensation, fine tuning of behavior at low light, Wide Dynamic Range - dynamic contrast; WDR: Up to 120dB (0.4 - 400,000 lux) depending on scene; Rotation: 0°, 90°, 180°, 270° and Corridor Format; Text and image overlay, privacy mask and mirroring of images
  • Privacy Mask: Yes
  • Built-in Microphone: No
  • Audio Capabilities: Two-way, External microphone input or line input, line output
  • Alarm/Event Management: Intelligent video (Video motion detection, Active tampering alarm, Audio detection, Support for AXIS Camera Application Platform enablinginstallation of additional applications), Edge storage events, External input, File upload: FTP, HTTP, network share and email, Notification: email, HTTP and TCP, Video and audio recording to edge storage, Pre- and post-alarm video buffering, External output activation; Play audio clip
  • ONVIF: Yes
  • Security: Password protection, IP address filtering, HTTPS encryption, IEEE 802.1X network access control, digest authentication, user access log
  • Users: N/A
  • On-board Storage: Yes, SD/SDHC/SDXC Card slot supporting memory card up to 64GB
  • Indoor/Outdoor: Outdoor
  • Housing/Enclosure Rating: IP66- and NEMA 4X-rated, IK10 impact resistant aluminum enclosure with integrated dehumidifying membrane
  • Dimensions: 162mm (W) x 128mm (H) x 323mm (L) (6.4" x 5.0" x 13.5")
  • Weight: 3.1 kg (6.8 lb.)
  • Operating Temperature: -30 ºC to 50 ºC (-22 ºF to 122 ºF)
  • Operating Humidity: 10 - 100% RH (condensing)
  • Power: PoE IEEE 802.3af max. 12.95 W or High PoE max 25.5 W
  • Warranty: 3 Years
  • What's Included: Stand, connector kit, Installation Guide, Installation and Management Software CD, recording software and User Manual, Windows decoder; v1-user license, Wall mount bracket, sunshield

AXIS Q1604-E Overview

The AXIS Q1604-E Network Cameras with ‘dynamic capture’ offer ideal solutions for surveillance in highly variable lighting conditions, for instance when light comes through a glass window or entrance creating both dark and bright zones. In these demanding scenarios, AXIS Q1604-E allow the user to easily and clearly identify both people and objects. Together with advanced image processing, the result is video with exceptional clarity and sharpness, ensuring that no part of the image is too dark or too bright. The AXIS Q16-E Network Cameras save installation time and costs since they are ready out of the box for mounting outdoors. The IP66-rated cameras have protection against dust, rain, snow and sunlight, and can operate in temperatures as low as -40 ºC (-40 ºF). The cameras are powered by Power over Ethernet, which makes installation easy since there is no need for a separate power cable. An integrated dehumidifying membrane eliminates humidity caught in the camera enclosure during installation. The cameras enable easy mounting of an infrared illuminator under the enclosure. They come with a wall mount bracket and a sunshield.
