Q1614-E Front View
Q1614-E Side View
Q1614-E diagram

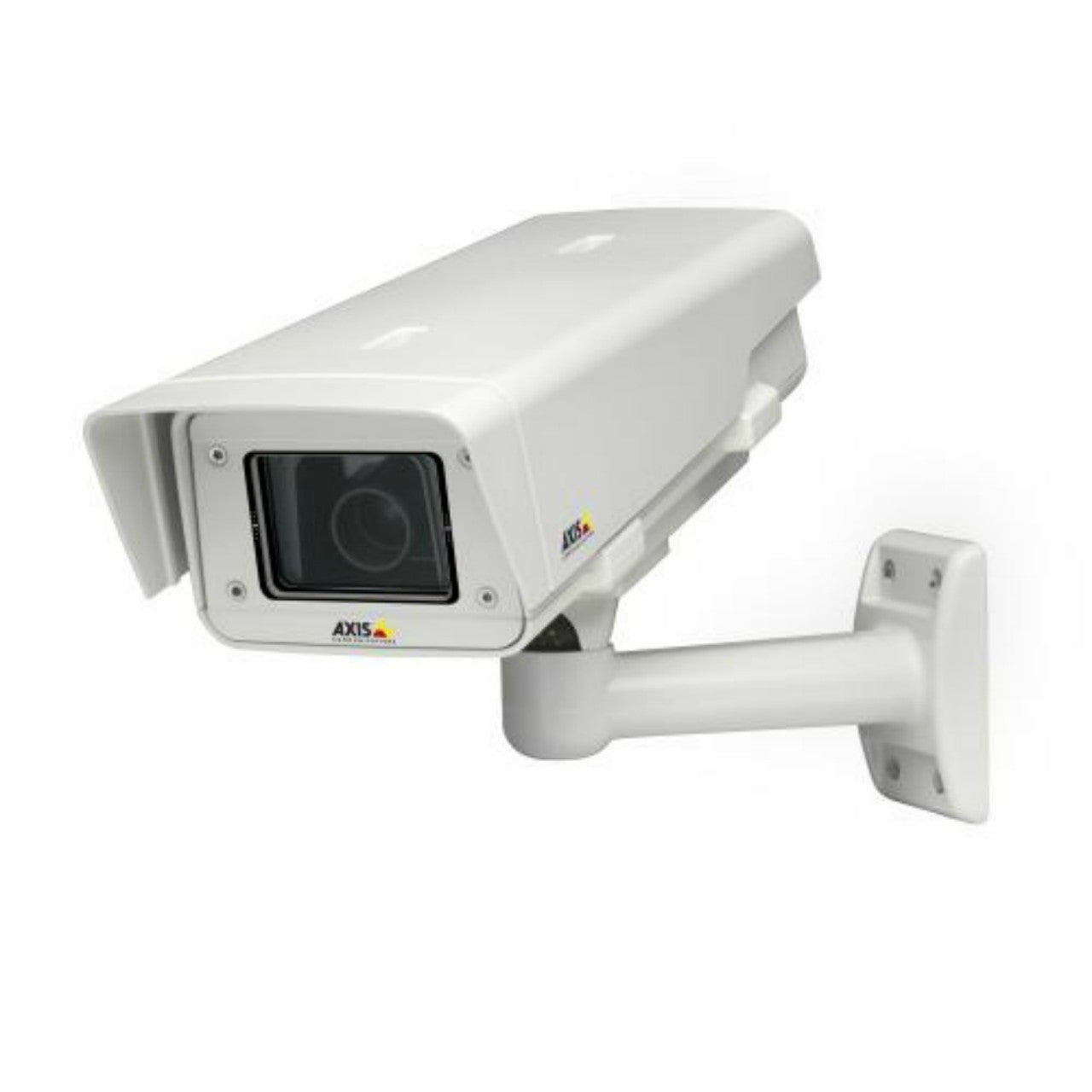

AXIS Q1614-E (0551-001) Outdoor Network Camera


AXIS Q1614-E (0551-001) Outdoor Network Camera

Sale price$1,399.00
SKU: Q1614-E (0551-001)

Replaced by: AXIS Q1615-E Mk II (0884-001)


AXIS Q1614-E Features

  • Max Resolution: 1280x960
  • Image Sensor: 1/3" Progressive scan RGB CMOS
  • Day/Night: Yes
  • Mechanical IR Cut Filter: Yes
  • Minimum Illumination: Color: 0.05 lux, F1.2, B/W: 0.008 lux, F1.2; With dynamic capture: Color: 0.4 lux, F1.2, B/W: 0.06 lux, F1.2
  • IR Illuminators: No
  • IR Illuminator Range: N/A
  • Lens Type: Varifocal, CS-mount
  • Focal Length: 2.8 - 8 mm/F1.2
  • Zoom: N/A
  • Iris: P-iris Lens
  • Focus: Focus assist with remote back focus and leveling assistant
  • Field of View: 80° - 34° view Horizontal
  • Compression Styles: H.264 Main and Baseline Profile, H.264 (MPEG-4 Part 10/AVC), Motion JPEG
  • Frame Rate: 25/30 fps: 1280x960 to 160x90; 50/60 fps: 1280x720 to 160x90; Extended D1: 768x576 to 160x90; 1400x1050 (1.4 MP) scaled resolution available via VAPIX®
  • Image Settings: Compression, color, brightness, sharpness, contrast, white balance, exposure control, exposure zones, backlight compensation, fine tuning of behavior at low light, Text and image overlay, privacy mask and mirroring of images, WDR-dynamic capture: Up to 120dB (0.4–400,000 lux) depending on scene, Auto-rotation, Shadow and highlight recovery, Day/night shift level
  • Privacy Mask: Yes
  • Built-in Microphone: No
  • Audio Capabilities: Two-way, External balanced/unbalanced microphone or line input, line output
  • Alarm/Event Management: Intelligent video (Video motion detection, Active tampering alarm, Audio detection, Support for AXIS Camera Application Platform enabling installation of additional applications), Edge storage events, External input, Shock detection, File upload: FTP, HTTP, network share and email, Notification: email, HTTP and TCP, Video and audio recording to edge storage, Pre- and post-alarm video buffering, External output activation; Play audio clip
  • ONVIF: Yes
  • Security: Password protection, IP address filtering, HTTPS encryption, IEEE 802.1X network access control, digest authentication, user access log
  • Users: N/A
  • On-board Storage: Yes, SD/SDHC/SDXC Card slot supporting memory card up to 64GB
  • Indoor/Outdoor: Outdoor
  • Housing/Enclosure Rating: IP66- and NEMA 4X-rated, IK10 impact resistant aluminum enclosure with integrated dehumidifying membrane
  • Dimensions: 161mm (W) x 142mm (H) x 404mm (L) (6.3" x 5.5" x 15.9")
  • Weight: 3525 g (7.7 lb)
  • Operating Temperature: -30 °C to 50 °C (-22 °F to 122 °F) with PoE; down to -40 °C (-40 °F) with Axis High PoE midspan, max. 30 W
  • Operating Humidity: 10 - 100% RH (condensing)
  • Power: PoE IEEE 802.3af/802.3at Type 1 Class 3, max. 12.95 W or High PoE max. 25.5 W
  • Warranty: 3 Years
  • What's Included: Stand, connector kit, ResiTorx20 tool, Installation Guide, Installation and Management Software CD, Windows decoder; v1-user license, Wall mount bracket, sunshield

AXIS Q1614-E Overview

XIS Q1614-E delivers highly detailed video in fast-paced environments. Identify of an incident is easy thanks to clear video with 50 or 60 frames per second in HDTV 720p video quality. The camera includes both Wide Dynamic Range with dynamic capture and Lightfinder technologies. Wide Dynamic Range-dynamic capture ensures that no part of the image is too dark or too bright. Additionally, the camera provides a manual fine tuning of the high-contrast image for ease and clear identification even in very complicated scenes. Lightfinder technology offers life-like colors video in low-light conditions. AXIS Q1614-E includes new innovative features to help installers to mount the camera. The leveling assistance guides to the correct level, meaning that the camera can be install wherever but always have a perfect image. The auto rotation functionality flips the image to the right orientation, also when Corridor Format. Moreover, AXIS Q1614-E supports focus assistant, remote back focus and pixel counter, capabilities already known in the AXIS Q16 Series. The camera is further protected with shock detection, a capability that sends an alarm to personnel during attempted vandalism. AXIS Q1614-E is IP66-rated and comes with a wall mount bracket, sunshield and Ethernet cable. It is protected from dust, rain, snow and sun, and can operate in temperatures from -40 °C to 50°C (-40 °F to 122 °F).
