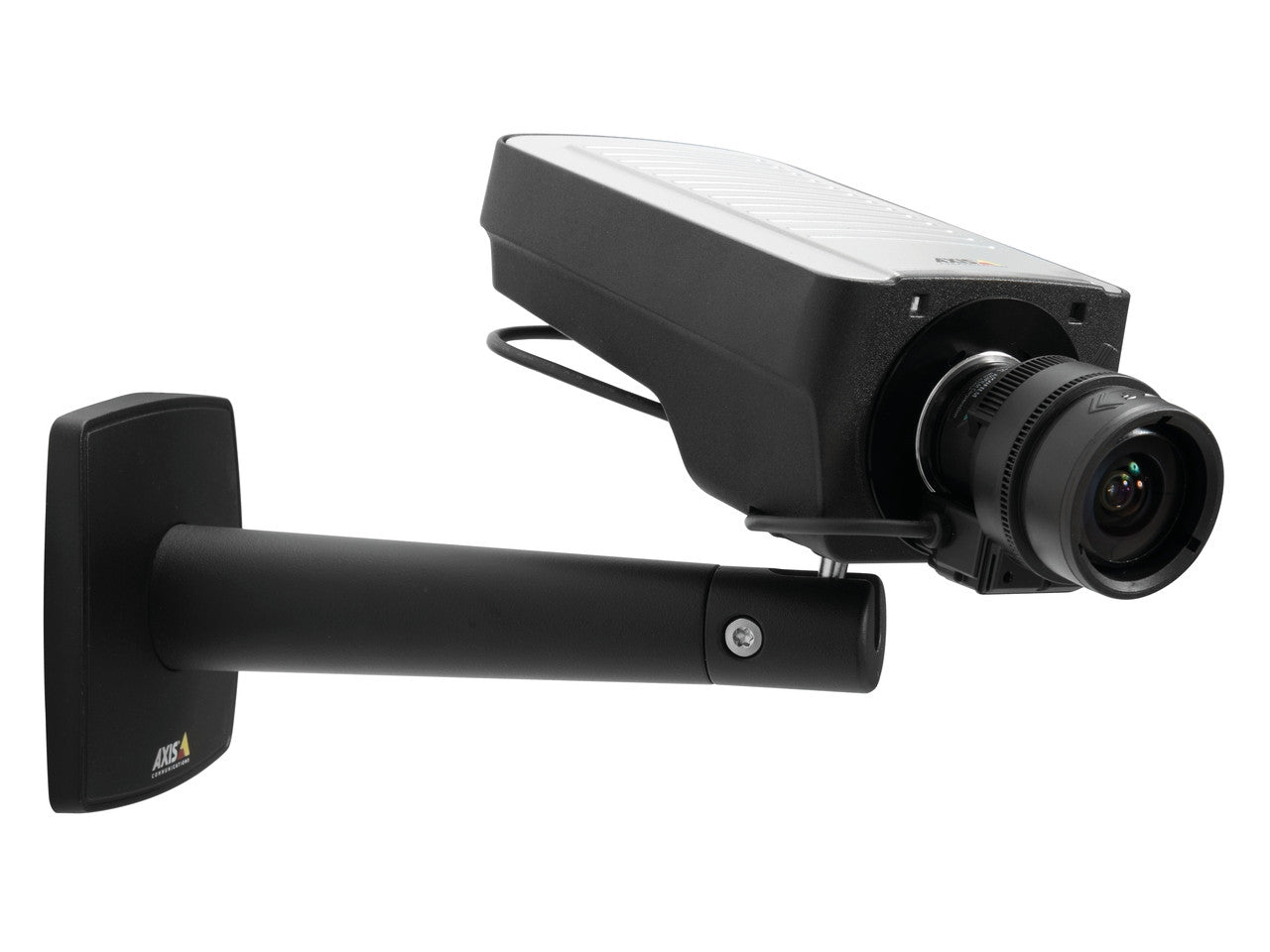

AXIS Q1615 (0629-001) 1080p 60FPS Network Camera
Replaced by: AXIS Q1615 Mk II (0883-001)
- Resolution: 1920x1200 to 160x90
- Image Sensor: Progressive scan RGB CMOS 1/2.8"
- Day/Night: Yes
- Mechanical IR Cut Filter: Yes
- Minimum Illumination: Color: 0.18 lux, F1.3, B/W: 0.04 lux, F1.3; 50/60 fps: Color: 0.36 lux, F1.3, B/W: 0.08 lux, F1.3; 25/30 fps with WDR-Forensic Capture: Color: 0.18 lux, F1.3, B/W: 0.04 lux, F1.3
- IR Illuminators: No
- IR Illuminator Range: N/A
- Lens Type: Varifocal, IR corrected, CS-mount
- Focal Length: 2.8–8 mm / F1.3
- Zoom: Digital PTZ
- Iris: N/A
- Focus: Focus assistant with remote back focus
- Field of View: 120°–40° view horizontal
- Compression Styles: H.264 (MPEG-4 Part 10/AVC), H.264 Main and Baseline Profile, Motion JPEG, High Profile
- Frame Rate: 50/60 fps (no WDR); 25/30 fps (WDR)
- WDR Technology: Yes, up to 120dB depending on scene
- Image Settings: Compression, Color, Brightness, Sharpness, Contrast, White balance, Exposure control, Exposure zones, Backlight compensation, Fine tuning of behavior at low light, Text and image overlay, Privacy mask, Mirroring of images, WDR-Forensic Capture: Up to 120 dB depending on scene, Auto-rotation, Barrel distortion correction, Day/Night shift level, Electronic Image Stabilization (EIS), Local contrast
- Privacy Mask: Yes
- Built-in Microphone: No
- Audio Capabilities: Supports two-way via xternal balanced/unbalanced microphone input or line input, line output
- Alarm/Event Management: Video motion detection, active tampering alarm, audio detection, Support for AXIS Camera Application Platform enabling installation of additional applications, Intelligent video, external input, edge storage events, externl input, shock detection, File upload: FTP, HTTP, network share and email, Notification: email, HTTP and TCP, video and audio recording to edge storage, pre- and post-alarm video buffering, play audio clip, Status LED, Overlaty text, Send video clip, Send SNMP trap
- ONVIF: Yes
- Security: Password protection, IP address filtering, HTTPS encryption, IEEE 802.1X network access control, digest authentication, user access log
- Users: N/A
- On-board Storage: Yes, SD/SDHC/SDXC Card slot supporting memory card up to 64GB
- Indoor/Outdoor: Indoor
- Housing/Enclosure Rating: N/A
- Dimensions: 82mm (W) x 58mm (H) x 136mm (L) (3.2" x 2.2" x 5.4") (not including stand)
- Weight: 914 g (2 lb)
- Operating Temperature: 0 °C to 55 °C (32 °F to 131 °F)
- Operating Humidity: 10 - 85% RH (non-condensing)
- Power: 8–28 V DC or Power over Ethernet IEEE 802.3af/802.3at Type 1 Class 3, max. 10.8 W
- Warranty: 3 Years
- What's Included: Stand, Connector kit, ResiTorx20 tool, Installation Guide, Installation and Management Software CD, Windows decoder 1-user license
AXIS Q1615 Overview
Axis’ WDR – Forensic Capture optimizes video for forensic purposes by enabling an extremely high level of detail to be visible in both dark and bright areas of a scene. AXIS Q1615 with WDR – Forensic Capture applies advanced algorithms to optimize image quality and includes the ability to seamlessly transition between WDR and Lightfinder mode. The electronic image stabilization greatly improves video quality in situations where the camera is subject to vibration and the video, without electronic image stabilization, would be troublesome to view. Hence, the vibration effects are greatly reduced resulting in smoother and steadier video. AXIS Q1615 includes new innovative features to help installers to mount the camera. The leveling assistance guides to the correct level, meaning that the camera can be installed wherever but always have a perfect image. The auto rotation functionality flips the image to the right orientation, also when Corridor Format. Moreover, AXIS Q1615 supports focus assistant, remote back focus and pixel counter, capabilities already known in the AXIS Q16 Series. The camera is further protected with shock detection, a capability that sends an alarm to personnel during attempted vandalism.
