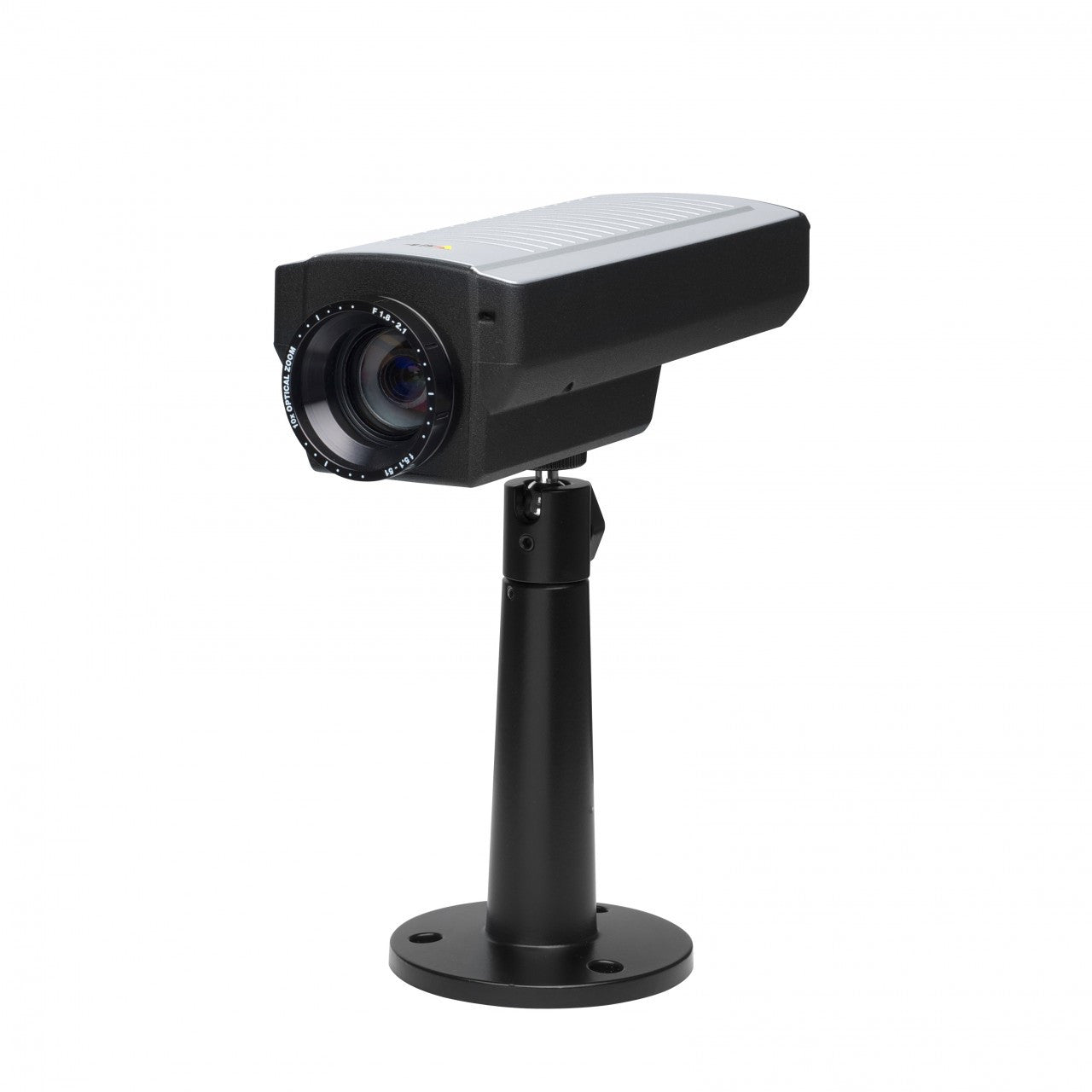

AXIS Q1755 (0304-001) HDTV Network Camera

Discontinued, replaced by the Q1755.

AXIS Q1755 Features

• Resolution: HDTV 1080i 1920x1080
• Image Sensor: 1/3’’ progressive scan CMOS
• Day/Night: Yes
• Mechanical IR Cut Filter: Yes
• Minimum Illumination: Color: 2 lux at 30 IRE, F1.8; B/W: 0.2 lux at 30 IRE, F1.8
• IR Illuminators: No
• IR Illuminator Range: N/A
• Lens Type: Vari-focal
• Focal Length: f=5.1 - 51 mm, F1.8 - 2.1
• Zoom: 10x optical and 12x digital, total 120x
• Iris: N/A
• Focus: autofocus
• Field of View: 48.1° - 5.1° Horizontally
• Compression Styles: H.264 (MPEG-4 Part 10/AVC); Motion JPEG
• Frame Rate: 30/25 fps in all resolutions
• Image Settings: Compression, brightness, sharpness, white balance, exposure control, backlight compensation, rotation - including Corridor Format™, mirroring of images, text and image overlay, privacy mask
• Privacy Mask: Yes
• Built-in Microphone: Yes
• Audio Capabilities: Two-way, external microphone or line input, line output
• Alarm/Event Management: Video motion detection, active tampering alarm, audio detection, Gatekeeper, temperature, external input, AXIS Camera Application Platform, File upload via FTP, HTTP and email; notification via email, HTTP and TCP; external output activation
• ONVIF: Yes
• Security: Password protection, IP address filtering, HTTPS encryption*, IEEE 802.1X network access control*, digest authentication, user access log
• Users: No
• On-board Storage: Yes, SD/SDHC memory card slot
• Indoor/Outdoor: Indoor
• Housing/Enclosure Rating: N/A
• Dimensions: 88mm (W) x 59mm (H) x 173mm (L) (3.5" x 2.4" x 6.8")
• Weight: 1.0 kg (2.2 lb.)
• Operating Temperature: 0 ºC to 45 ºC (32 ºF to 113 ºF)
• Operating Humidity: 20-80% RH (non-condensing)
• Power: 8–20 V DC max. 11.2 W ; 20-24 V AC max. 17.4 VA; Power over Ethernet IEEE 802.3af Class 3
• Warranty: 3 Years
• What's Included: Mounting and connector kits, Installation Guide, CD with installation tools, recording software and User’s Manual, Windows decoder 1-user license
• Optional Accessories: Wall bracket accessories, AXIS PoE Midspan 1-port, AXIS T8123 High PoE Midspan 1-port, AXIS T90A Illuminators, YP3040 Pan-Tilt Motor, AXIS T8414 Installation Display, AXIS Camera Station and video management software from Axis’ Application Development Partners

AXIS Q1755 Overview

The AXIS Q1755 network camera is designed for high-security usages where image clarity is of the utmost importance. With powerful zoom features and HD resolution, this camera provides crisp images and the ability to bring the smallest detail into focus. The camera is also provided with progressive scan technology that allows even fast motion to be captured in high resolution. With day or night functionality and the ability to receive power over its Ethernet connection, this camera is exceptionally flexible in terms of surveillance and installation.
The AXIS Q1755 network camera records images in HD format and transmits in either H.264 or Motion JPEG format. The camera is also capable of providing 10x optical zoom or of zooming in to 12x magnification digitally. The focal area is always crisp, thanks to the camera’s built-in autofocus capabilities. The camera retains its high image quality in low light conditions. This camera does have external storage capability in the form of a micro-SD slot right on the camera.
The AXIS Q1755 network camera has the ability to detect motion and sound. If someone attempts to sabotage surveillance by painting or blocking the lens, moving the camera or defocusing the lens, the AXIS Q1755 network camera will detect the attempt. The camera is also provided with IEEE 802.3af Power over Ethernet (PoE) capabilities. This means that the camera can draw its power directly from the network, eliminating the need for separate wiring.
