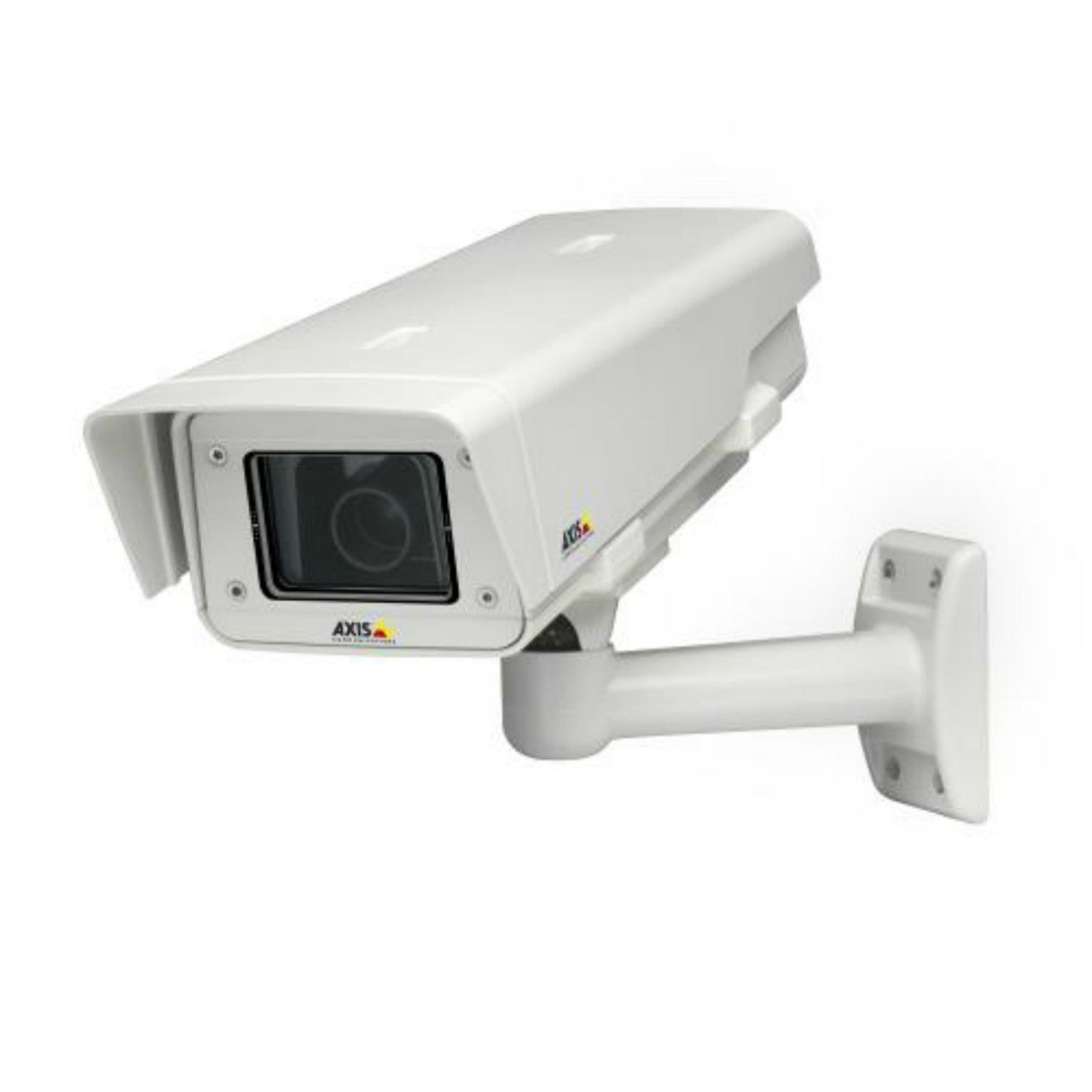

AXIS Q1755-E (0348-001) HDTV Outdoor Network Camera
AXIS Q1755-E (0348-001) HDTV Outdoor Network Camera
AXIS Q1755-E (0348-001) HDTV Outdoor Network Camera
AXIS Q1755-E (0348-001) HDTV Outdoor Network Camera
AXIS Q1755-E (0348-001) HDTV Outdoor Network Camera


AXIS Q1755-E (0348-001) HDTV Outdoor Network Camera

Sale price$1,799.00
SKU: Q1755-E (0348-001)

Discontinued. Replaced by the Q1775-E.

AXIS Q1755-E Features

  • Resolution: HDTV 1080i 1920x1080
  • Image Sensor: 1/3’’ progressive scan CMOS
  • Day/Night: Yes
  • Mechanical IR Cut Filter: Yes
  • Minimum Illumination: Color: 2 lux at 30 IRE, F1.8; B/W: 0.2 lux at 30 IRE, F1.8
  • IR Illuminators: No
  • IR Illuminator Range: N/A
  • Lens Type: Vari-focal
  • Focal Length: f=5.1 - 51 mm, F1.8 - 2.1
  • Zoom: 10x optical and 12x digital, total 120x
  • Iris: N/A
  • Focus: autofocus
  • Field of View: 48.1° - 5.1° Horizontally
  • Compression Styles: H.264 (MPEG-4 Part 10/AVC); Motion JPEG
  • Frame Rate: 30/25 fps in all resolutions
  • Image Settings: Compression, brightness, sharpness, white balance, exposure control, backlight compensation, rotation - including Corridor Format™, mirroring of images, text and image overlay, privacy mask
  • Privacy Mask: Yes
  • Built-in Microphone: Yes
  • Audio Capabilities: Two-way, external microphone or line input, line output
  • Alarm/Event Management: Video motion detection, active tampering alarm, audio detection, Gatekeeper, temperature, external input, AXIS Camera Application Platform, File upload via FTP, HTTP and email; notification via email, HTTP and TCP; external output activation
  • ONVIF: Yes
  • Security: Password protection, IP address filtering, HTTPS encryption*, IEEE 802.1X network access control*, digest authentication, user access log
  • Users: No
  • On-board Storage: Yes, SD/SDHC memory card slot
  • Indoor/Outdoor: Outdoor
  • Housing/Enclosure Rating: IP66- and NEMA 4X-rated, IK10 impact-resistant
  • Dimensions: 156mm (W) x 128mm (H) x 405mm (L) (6.1" x 5.6" x 15.9")
  • Weight: 3.5 kg (7.7 lb.)
  • Operating Temperature: -30 ºC to 45 ºC (-22 ºF to 113 ºF) with PoE; down to -40 ºC (-40 ºF) with High PoE; Arctic Temperature Control enables camera start-up at temperatures as low as -40 ºC (-40 ºF ) with High PoE
  • Operating Humidity: 20-80% RH (non-condensing)
  • Power: Power over Ethernet (PoE) IEEE 802.3af Class 3 or High Power over Ethernet (High PoE)
  • Warranty: 3 Years
  • What's Included: Mounting and connector kits, Installation Guide, CD with installation tools, recording software and User’s Manual, Windows decoder 1-user license, wall mount bracket, sunshield, cable glands
  • Optional Accessories: Wall bracket accessories, AXIS PoE Midspan 1-port, AXIS T8123 High PoE Midspan 1-port, AXIS T90A Illuminators, YP3040 Pan-Tilt Motor, AXIS T8414 Installation Display, AXIS Camera Station and video management software from Axis’ Application Development Partners

AXIS Q1755-E Overview

The AXIS Q1755-E network camera is designed to provide crisp images and motion capture in outdoor surveillance situations. The camera is ideal for areas where close-up detail is needed on moving objects, such as parking lots, public transit stations, airports and government facilities. This camera is fully weatherproof, being rated to IP66 standards, and is capable of providing day or night surveillance coverage, making it a good choice for outdoor environments where weather conditions are harsh and where surveillance needs to be conducted around the clock.
The AXIS Q1755-E network camera features 10x optical zoom capabilities. Digital zoom capabilities are up to 12x magnification and the focus is very crisp. The camera can record in two HD formats. Users may opt for 720p resolution or 1080i resolution for the clearest image capture possible. The camera delivers video on the H.264 format or in Motion JPEG format at full frame-rate. This camera has powerful autofocus capabilities and is compatible with pan and tilt motors.
The AXIS Q1755-E network camera can receive its power over its Ethernet connection. The IEEE 802.3af compatibility means that the camera can be powered up wherever it can be connected to an Ethernet cable, vastly increasing the flexibility of the camera where locating the device is concerned. It is also provided with external storage. Should it be disconnected from the network, the camera’s SD/SDHC card slot provides another option for storage. The camera is also equipped with Axis’s Arctic Temperature Control feature.
