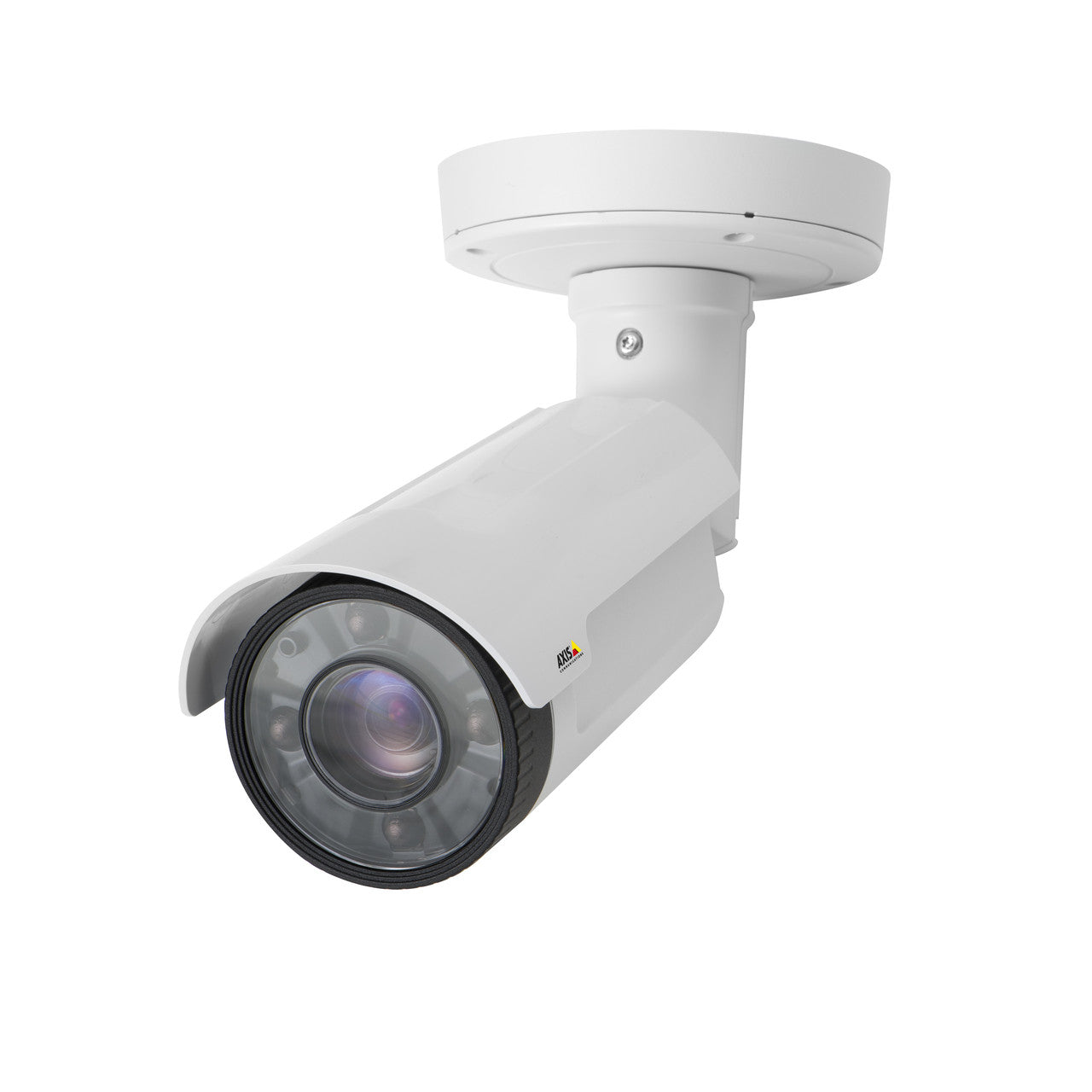

AXIS Q1765-LE (0509-001) HD Bullet Network Camera
Replaced by: AXIS Q1785-LE (01161-001)
Choose options
Replaced by: AXIS Q1785-LE (01161-001)
Replaced by: AXIS Q1785-LE (01161-001)
AXIS Q1765-LE Features
- Max Resolution: 1920x1080 (HDTV 1080p)
- Image Sensor: 1/2.9" progressive scan RGB CMOS
- Day/Night: Yes
- Mechanical IR Cut Filter: Yes
- Minimum Illumination: Color: 0.5 lux at 30 IRE F1.6; B/W: 0.04 lux at 30 IRE F1.6
- IR Illuminators: Yes
- IR Illuminator Range: 15m (50 ft)
- Lens Type: Varifocal
- Focal Length: f=4.7–84.6 mm, F1.6–2.8
- Zoom: 18x optical zoom and 12x digital zoom
- Iris: N/A
- Focus: Autofocus
- Field of View: Horizontal angle of view: 59° to 4°
- Compression Styles: H.264 Mainline and Baseline Profiles (MPEG-4 Part 10/AVC), Motion JPEG
- Frame Rate: H.264/Motion JPEG: Up to 30/25 fps (60/50 Hz) in all resolutions
- Image Settings: Manual shutter time, Compression, Color, Brightness, Sharpness, White balance, Exposure control, Exposure zones, Backlight compensation, Fine tuning of behavior at low light, Rotation, Text and image overlay, 3D privacy mask, Day/night shift level, Axis’ Corridor Format
- Privacy Mask: Yes
- Built-in Microphone: No
- Audio Capabilities: Two-way, Requires multi-connector cable (not included) for external microphone input or line input and line output
- Alarm/Event Management: Video motion detection, Active Gatekeeper, Active tampering alarm, Audio detection, AXIS Camera Application Platform enabling installation of additional applications, Intelligent video, External input, Edge storage event, File upload: FTP, HTTP, network share and email, Notification: email, HTTP and TCP, External output activation, Video and audio recording to edge storage, Pre- and post-alarm video buffering
- ONVIF: Yes
- Security: Password protection, IP address filtering, HTTPS encryption, IEEE 802.1X network access control, digest authentication, user access log
- Users: N/A
- On-board Storage: MicroSD/microSDHC/microSDXC slot supporting memory card up to 64 GB (card not included)
- Indoor/Outdoor: Outdoor
- Housing/Enclosure Rating: IP66- and NEMA 4X-rated, impact-resistant aluminum enclosure
- Dimensions: Ø146 mm x 344 mm (5.7" x 13.5")
- Weight: 1.8 kg (4.0 lb) including the bracket
- Operating Temperature: -40 °C to 50 °C (-40 °F to 122 °F)
- Operating Humidity: 10 - 100% RH (non-condensing)
- Power: Power over Ethernet IEEE 802.3af; max 12.95 W; 8-28 V DC max 15.2 W, 20-24 V AC max 22.0 VA
- Warranty: 3 Years
- What's Included: Connector kit, Installation Guide, Mini CD with installation tools, Recording software and User’s Manual, Windows decoder 1-user license, Allen key
AXIS Q1765-LE Overview
The bullet-style AXIS Q1765-LE Network Camera offers full HD image quality, 18x optical zoom and built-in IR illumination making it ideal for around-the-clock surveillance installations, where it covers great distances providing both wide overviews as well as detailed images for identification purposes. The outdoor-ready AXIS Q1765-LE is designed for monitoring entrances, exits and perimeter, and for pole mounting for surveillance of parking lots or general city surveillance purposes. The robust AXIS Q1765-LE is specifically designed for use in harsh environments and tough climates with its 18x optical zoom and built-in infra-red LEDs. Axis Communications, the world leader in network video, today presents a strong addition to its line of fixed cameras for outdoor surveillance. The AXIS Q1765-LE has a powerful 18x motorized optical zoom for covering long distances and autofocus that provides images in perfect focus. In addition, Axis’ unique Corridor Format allows for effective monitoring of vertical scenes such as long streets or long perimeters. “AXIS Q1765-LE is a slim and solid bullet-style camera designed for outdoor surveillance even in challenging conditions. Its outstanding robustness and reliability makes it especially suitable for critical installations like traffic junctions,” says Erik Frännlid, Director of Product Management, Axis Communications. The AXIS Q1765-LE has built-in high-efficient automatically adaptive infra-red LEDs. The IR LEDs allow the camera to cover at least 15 meter (50 ft.) in the widest field of view and up to 40 meter (130 ft.) in full tele view. The built-in IR illumination is especially beneficial for installations with the need for around-the-clock surveillance without artificial lighting. The compact AXIS Q1765-LE is lightweight yet tough. The camera is IP66/NEMA4X rated, making it resistant to water and dust. The Arctic Temperature Control capability allows reliable start-up in any temperatures from -40 °C to 50 °C (-40 °F to 122°F), making AXIS Q1765-LE perfect for installations in places with challenging weather. The camera is very convenient to install thanks to its light weight, one-cable installation, support for Power over Ethernet and AC/DC power.
