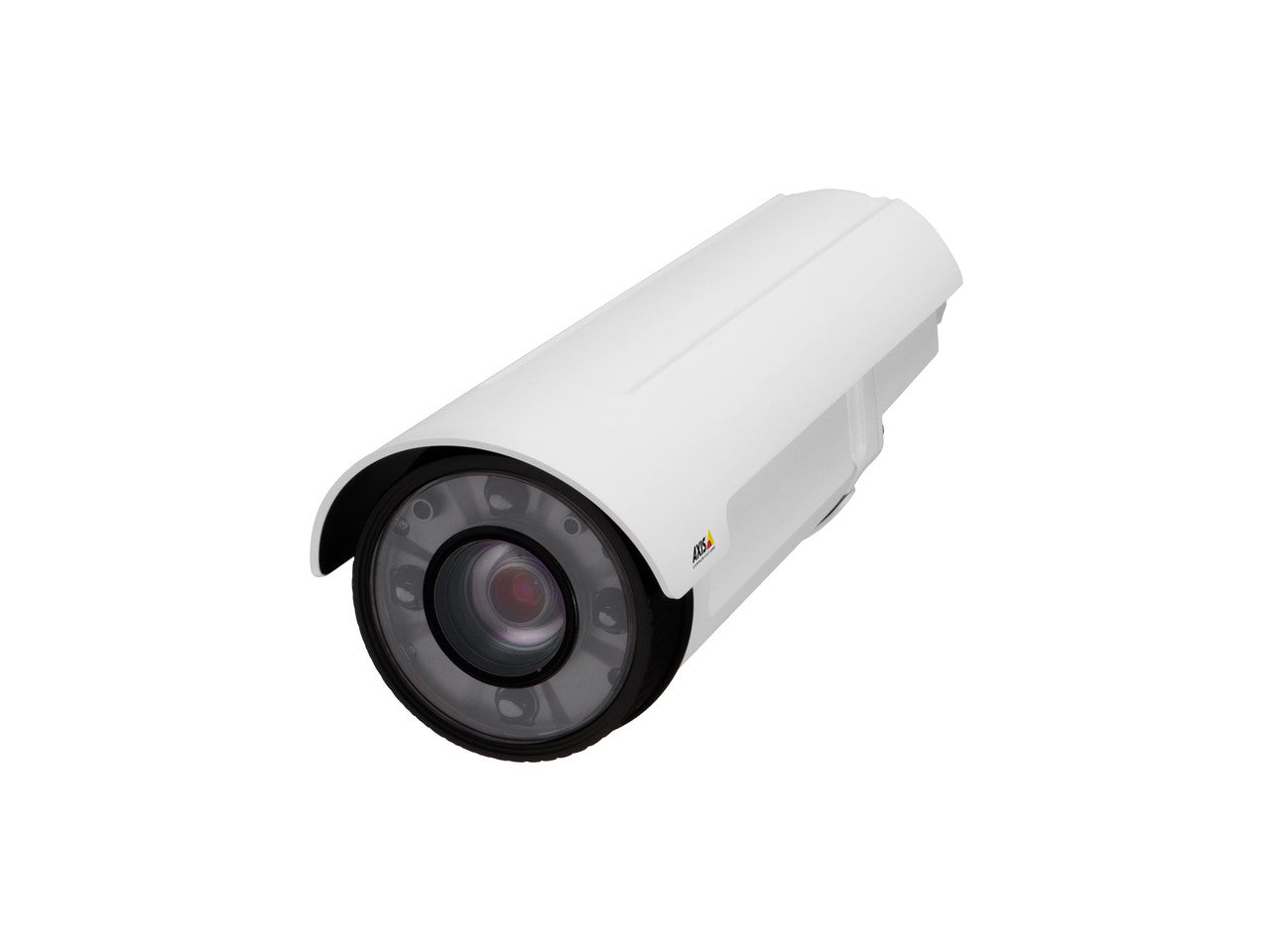

AXIS Q1765-LE (0644-001) PT Mount HD Bullet Network Camera
Replaced by: See Axis positioning cameras i.e AXIS Q8685-E PTZ Network Camera (N/A)
AXIS Q1765-LE PT Mount Features
- Max Resolution: 1920x1080 (HDTV 1080p)
- Image Sensor: 1/2.9" progressive scan RGB CMOS
- Day/Night: Yes
- Mechanical IR Cut Filter: Yes
- Minimum Illumination: Color: 0.5 lux at 30 IRE F1.6; B/W: 0.04 lux at 30 IRE F1.6
- IR Illuminators: Yes
- IR Illuminator Range: 15m (50 ft)
- Lens Type: Varifocal
- Focal Length: f=4.7–84.6 mm, F1.6–2.8
- Zoom: 18x optical zoom and 12x digital zoom
- Iris: N/A
- Focus: Autofocus
- Field of View: Horizontal angle of view: 59° to 4°
- Compression Styles: H.264 Mainline and Baseline Profiles (MPEG-4 Part 10/AVC), Motion JPEG
- Frame Rate: H.264/Motion JPEG: Up to 30/25 fps (60/50 Hz) in all resolutions
- Image Settings: Manual shutter time, Compression, Color, Brightness, Sharpness, White balance, Exposure control, Exposure zones, Backlight compensation, Fine tuning of behavior at low light, Rotation, Text and image overlay, 3D privacy mask, Day/night shift level, Axis’ Corridor Format
- Privacy Mask: Yes
- Built-in Microphone: No
- Audio Capabilities: None
- Alarm/Event Management: Video motion detection, Active Gatekeeper, Active tampering alarm, AXIS Camera Application Platform enabling installation of additional applications, Intelligent video, External input, Edge storage event, File upload: FTP, HTTP, network share and email, Notification: email, HTTP and TCP, External output activation, Video and audio recording to edge storage, Pre- and post-alarm video buffering
- ONVIF: Yes
- Security: Password protection, IP address filtering, HTTPS encryption, IEEE 802.1X network access control, digest authentication, user access log
- Users: N/A
- On-board Storage: MicroSD/microSDHC/microSDXC slot supporting memory card up to 64 GB (card not included)
- Indoor/Outdoor: Outdoor
- Housing/Enclosure Rating: IP66- and NEMA 4X-rated, impact-resistant aluminum enclosure
- Dimensions: 146mm (W) x 105mm (H) x 344mm (L) (5.7" x 4.1" x 13.5")
- Weight: 1.5 kg (3.3 lb)
- Operating Temperature: -40 °C to 50 °C (-40 °F to 122 °F)
- Operating Humidity: 10 - 100% RH (non-condensing)
- Power: Power over Ethernet IEEE 802.3af; max 12.95 W; 8-28 V DC max 15.2 W, 20-24 V AC max 22.0 VA
- Warranty: 3 Years
- What's Included: Connector kit, Installation Guide, Mini CD with installation tools, Recording software and User’s Manual, Windows decoder 1-user license, Allen key
AXIS Q1765-LE PT Mount Overview
AXIS Q1765-LE PT Mount Network Camera is a slim, bullet-style outdoor-ready network camera with 18x optical zoom and auto-focus. It delivers SMPTE-compliant HDTV 1080p video in multiple, individually configurable H.264 and Motion JPEG video streams. Furthermore, the camera features Axis' OptimizedIR with four auto-adjusting LEDs that are highly power-efficient. AXIS Q1765-LE PT Mount is used together with a pan-tilt motor (motor not included) to cover great distances providing both wide overviews as well as detailed images for identification purposes. AXIS Q1765-LE PT Mount is very convenient to install thanks to its light weight, one-cable installation, readily directed IR, support for standard Power over Ethernet and 24 VDC/AC input. It has a serial port for RS422/485 communication with pan-tilt motors that support Pelco D protocol.
