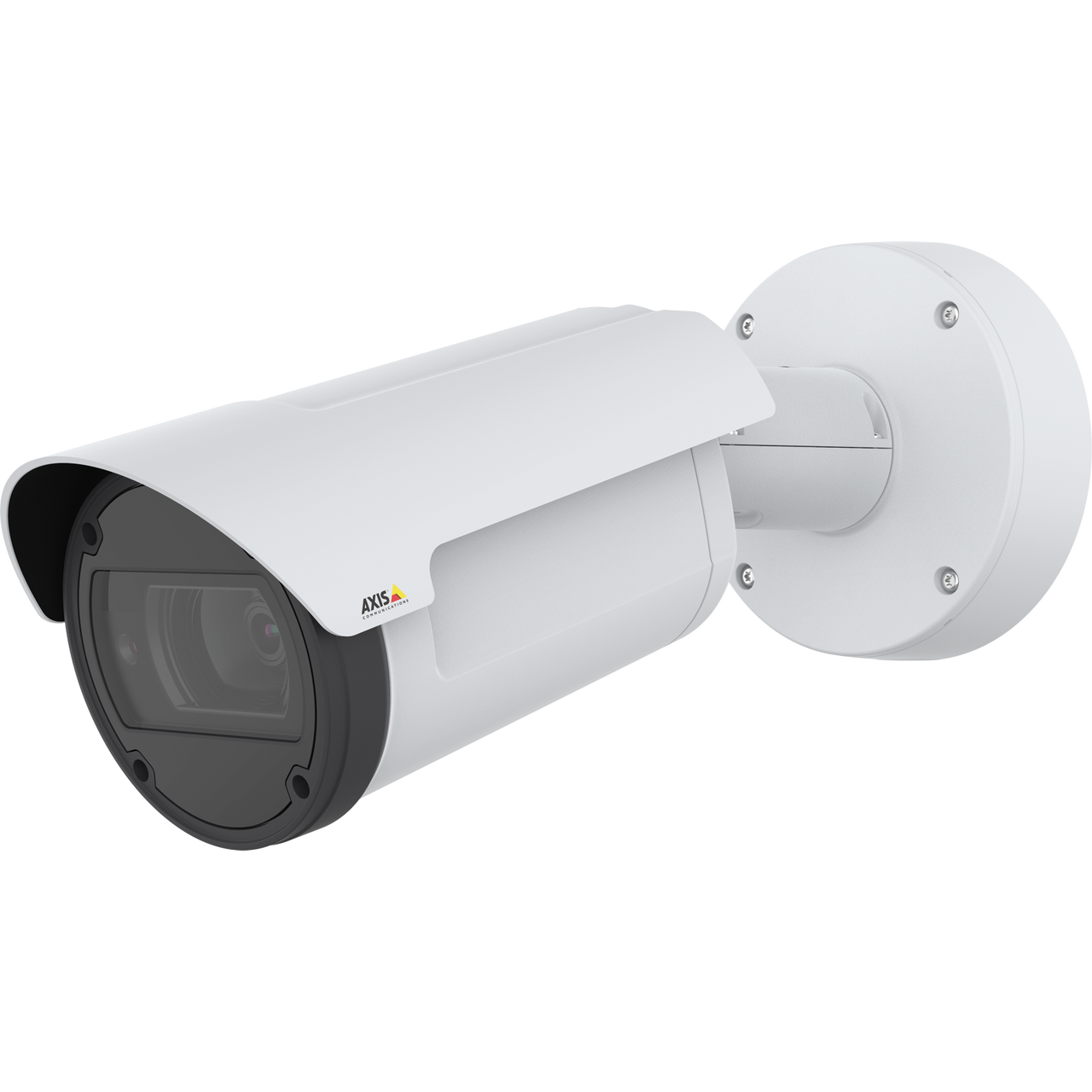

AXIS Q1798-LE 4K without compromise

AXIS Q1798-LE combines superior 4K resolution with ultra-high light sensitivity for large-scale surveillance. Including Lightfinder 2.0, it captures outstanding forensic images in low light scenes. Plus, Axis Zipstream enhanced with H.264 and H.265 dramatically lowers bandwidth and storage requirements.

• 4K / 10 MP resolutions 
• Ultra-high light-sensitive 4/3" sensor 
• 12 – 48 mm Canon lens
• Lightfinder 2.0
• Zipstream with support for H.264/H.265

Robust outdoor, NEMA 4X, IP66/67 and IK10-rated 10 MP/ 4K, day/night, fixed bullet camera providing Forensic WDR and Lightfinder 2.0 technology. Features a 4/3" type image sensor, built-in varifocal 12–48 mm, 4 x optical Canon zoom lens, 90°-21° HFOV, F1.7 with remote zoom and autofocus. Multiple, individually configurable H.264, H.265 and Motion JPEG streams; max 4K at 30 fps /10MP resolution at 20 fps. Axis Zipstream technology for reduced bandwidth and storage needs. Includes analytics AXIS Guard Suite, Video motion detection, shock detection and active tampering alarm. Corridor format, barrel distortion correction, defogging and electronic image stabilization. Scene profiles. Audio mic/line in, audio detection with optional analog or digital microphone. Supervised I/O for alarm/event handling. MicroSD/MicroSDHC memory card slot for optional local video storage. OptimizedIR, a power-efficient IR LED technology. Integrated bracket for easy mounting on wall and ceiling. Operation in -40°C to +60°C (-40 °F to 140 °F). Powered by PoE class 4 (IEEE 802-3at), 20-28 V DC or 20-24 V AC. Includes a removable sunshield, Torx T20 allen key, IP66/67- rated cable glands and optional IDC punch connector. Power supply or midspan not included.
