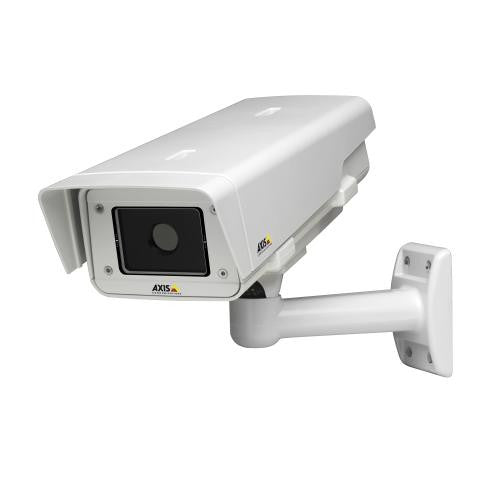

AXIS Q1910-E (0335-001) Thermal Network Camera

Discontinued.

AXIS Q1910-E (0335-001) Thermal Network Camera Features

• Resolution: Sensor is 160x128. Image can be scaled up to 720x576 (D1) and to standard VGA resolutions
• Image Sensor: Uncooled Micro bolometer 160 x 120, pixel size: 25 μm
• Sensitivity: NETD < 100 mK
• Day/Night: YES
• Mechanical IR Cut Filter: NO
• Minimum Illumination: N/A
• IR Illuminators: NO
• IR Illuminator Range: N/A
• Focal Length: 13 mm
• Zoom: NO
• Focus: Auto
• Field of View: 17° horizontal angle of view
• Compression Styles: H.264 (MPEG-4 Part 10/AVC), Motion JPEG
• Frame Rate: 8.33 fps
• Image Settings: Compression, brightness, exposure control, rotation, mirroring of images, text and image overlay, multiple palettes
• Privacy Mask: Yes
• Built-in Microphone: NO
• Audio Capabilities: Two-Way, External microphone input or line input, line output
• Alarm/Event Management: Video motion detection, active tampering alarm, audio detection. Support for AXIS Camera Application Platform enables installation of additional applications
• ONVIF: YES
• Security: Password protection, IP address filtering, digest authentication, user access log, IEEE 802.1X network access control, HTTPS encryption
• On-board Storage: SD/SDHC memory card slot (card is not included)
• Indoor/Outdoor: Indoor
• Housing/Enclosure Rating: IP66-rated aluminum casing and a germanium window
• Color: White
• Dimensions: Please See Diagram in Pictures
• Weight: 3520 g (7.76 lb)
• Operating Temperature: -40 °C to 50 °C (-40 °F to 122 °F )
• Operating Humidity: 20-80% RH (non-condensing)
• Shock resistance: 70 g shock pulse with a 11 ms half-sine profile
• Vibration resistance: 4.3 g random vibration for 8 hours (three axes
• Power: Power over Ethernet IEEE 802.3af Class 3, 8-20 V DC / 20-24 V AC 50-60 Hz, max 13 W, max 18 VA, Power supply not included
• Warranty: 3 Year
• What's Included: Connector kit, Installation Guide, Windows decoder 1-user license, wall mount bracket, 5 m (16 ft.) Ethernet cable

AXIS Q1910-E (0335-001) Thermal Network Camera Overview

The AXIS Q1910-E Thermal Network Camera is a perfect complement to any network video system that needs to secure an area 24 hours a day, seven days a week. The camera uses thermal imaging, which allows users to detect people, objects and incidents in complete darkness and difficult conditions such as smoke, haze, dust and light fog. AXIS Q1910-E is an out-of-the-box, outdoor-ready thermal network camera that is designed to withstand harsh weather conditions. It comes with a built-in heater for the window. AXIS Q1910-E Thermal Network Camera supports H.264 video compression, which reduces bandwidth usage and storage needs by up to 80% compared to Motion JPEG. The camera provides multiple, individually configurable video streams in H.264 and Motion JPEG. Each stream can have its own color palette setting. AXIS Q1910-E is the first thermal camera on the market with two-way audio support, which allows the user to communicate with visitors and intruders. Since thermal cameras are immune to problems with light conditions and normal shadows, they can achieve higher accuracy than conventional cameras in most intelligent video applications. AXIS Q1910-E Thermal Network Camera offers motion detection, audio detection, and detection of tampering attempts. The camera also provides capacity for third-party analytics modules, including support for AXIS Camera Application Platform. Installation is made easy and cost-effective with Power over Ethernet (IEEE 802.3af), which eliminates the need for power cables. AXIS Q1910-E Thermal Network Camera supports ONVIF for interoperability between network video products. With a built in built-in SD/SDHC memory card slot & support for Pan/Tilt heads using the Pelco-D protocol the AXIS Q1910-E Thermal Network Camera can do it all!
