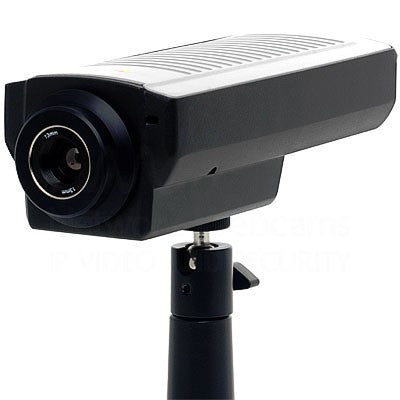

AXIS Q1921 (0384-001) Thermal Network Camera
AXIS Q1921 (0384-001) Thermal Network Camera
AXIS Q1921 (0384-001) Thermal Network Camera
AXIS Q1921 (0384-001) Thermal Network Camera
AXIS Q1921 (0384-001) Thermal Network Camera
AXIS Q1921 (0384-001) Thermal Network Camera

AXIS

AXIS Q1921 (0384-001) Thermal Network Camera

$3,999.00
Discontinued
SKU: Q1921 (0384-001)

Replaced by: Q1931-E 13mm (0601-001)

Link to Manufacturer's Page

Contact

Discontinued; replaced with the Q1922.

AXIS Q1921 (0384-001) Thermal Network Camera Features

  • Resolution: Sensor is 384x288. Image can be scaled up to 768x576 and to standard VGA resolutions.
  • Image Sensor: Uncooled Micro bolometer 384x288, pixel size: 25 µm
  • Sensitivity: NETD < 100 mK
  • Day/Night: YES
  • Mechanical IR Cut Filter: NO
  • Minimum Illumination: N/A
  • IR Illuminators: NO
  • IR Illuminator Range: N/A
  • Focal Length: 10 mm and 19 mm
  • Zoom: NO
  • Focus: Auto
  • Field of View: 17° horizontal angle of view
  • Compression Styles: H.264 (MPEG-4 Part 10/AVC); Motion JPEG
  • Frame Rate: up to 30 fps
  • Image Settings: Compression, brightness, exposure control, rotation, mirroring of images, text and image overlay, privacy mask, palettes
  • Privacy Mask: Yes
  • Built-in Microphone: NO
  • Audio Capabilities: Two-way, full duplex; Built-in microphone, external microphone or line input, line output
  • Alarm/Event Management: Video motion detection, active tampering alarm, audio detection. Support for AXIS Camera Application Platform enables installation of additional applications
  • ONVIF: YES
  • Security: Password protection, IP address filtering, digest authentication, user access log, IEEE 802.1X network access control, HTTPS encryption
  • On-board Storage: SD/SDHC memory card slot (card is not included)
  • Indoor/Outdoor: Indoor
  • Housing/Enclosure Rating: Zinc chassis
  • Color: White
  • Dimensions: Please See Diagram in Pictures
  • Weight: 950 g (2.10 lb.) - 970 g (2.14 lb.)
  • Operating Temperature: N/A
  • Operating Humidity: 20-80% RH (non-condensing)
  • Shock resistance: 70 g shock pulse with a 11 ms half-sine profile
  • Vibration resistance: 4.3 g random vibration for 8 hours (three axes
  • Power: Power over Ethernet IEEE 802.3af Class 3, 8-20 V DC, max 7 W or 20-24 V AC 50-60 Hz, max 13 VA, power supply not included
  • Warranty: 3 Year
  • What's Included: Connector kit, Installation Guide, CD with User’s Manual, recording software, installation and management tools, Windows decoder 1-user license

AXIS Q1921 (0384-001) Thermal Network Camera Overview

AXIS Q1921 Thermal Network Camera is a perfect complement to any network video system that needs to secure an area 24 hours a day, seven days a week. The camera uses thermal imaging and is designed for indoor surveillance. With built-in Pan/Tilt heads, it utilizes Pelco-D Protocol. It allows users to detect people, objects and incidents in complete darkness and difficult conditions such as smoke, haze, dust and light fog. AXIS Q1921 Thermal Network Camera supports H.264 video compression, which reduces bandwidth usage and storage needs by up to 80% compared to Motion JPEG. Built-in SD/SDHC memory card slots allow memory to be stored locally. The camera provides multiple, individually configurable video streams in H.264 and Motion JPEG. Each stream can have its own color palette setting. AXIS Q1921 has two-way audio support, which allows the user to communicate with visitors and intruders. With a resolution of 384x288 pixels and multiple lens alternatives, AXIS Q1921 can optimize detection performance to meet most application requirements:
