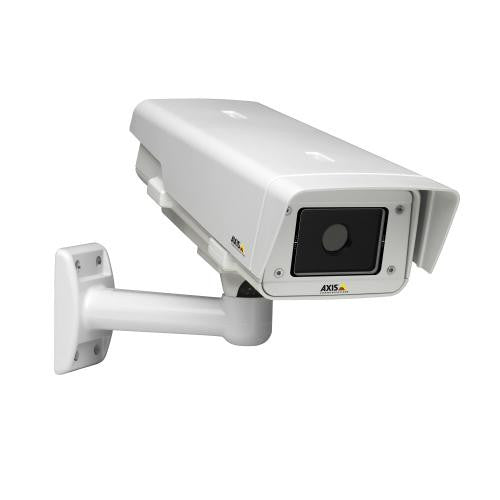

AXIS Q1921-E (0385-001) Thermal Network Camera
AXIS Q1921-E (0385-001) Thermal Network Camera
AXIS Q1921-E (0385-001) Thermal Network Camera
AXIS Q1921-E (0385-001) Thermal Network Camera
AXIS Q1921-E (0385-001) Thermal Network Camera

AXIS

AXIS Q1921-E (0385-001) Thermal Network Camera

$4,499.00
Discontinued
SKU: Q1921-E (0385-001)

Replaced by: Q1931-E 13mm (0601-001)

Link to Manufacturer's Page

Contact

Discontinued; Replaced by the Q1922-E.

AXIS Q1921-E (0385-001) Thermal Network Camera Features

  • Resolution: Sensor is 384x288. Image can be scaled up to 768x576 and to standard VGA resolutions.
  • Image Sensor: Uncooled Micro bolometer 384x288, pixel size: 25 µm
  • Sensitivity: NETD < 100 mK
  • Day/Night: No
  • Mechanical IR Cut Filter: NO
  • Minimum Illumination: N/A
  • IR Illuminators: NO
  • IR Illuminator Range: N/A
  • Focal Length: 10 mm, 19 mm, 35 mm and 60 mm
  • Zoom: NO
  • Focus: Auto
  • Field of View: 17° horizontal angle of view
  • Compression Styles: H.264 (MPEG-4 Part 10/AVC); Motion JPEG
  • Frame Rate: up to 30 fps
  • Image Settings: Compression, brightness, exposure control, rotation, mirroring of images, text and image overlay, privacy mask, palettes
  • Privacy Mask: Yes
  • Built-in Microphone: Yes
  • Audio Capabilities: Two-way, full duplex; External microphone or line input, line output
  • Alarm/Event Management: Video motion detection, active tampering alarm, audio detection. Support for AXIS Camera Application Platform enables installation of additional applications, Intelligent video and external input, File upload via FTP, HTTP and email; notification via email, HTTP and TCP; external output activation, pre- and post- alarm video buffering
  • ONVIF: YES
  • Security: Password protection, IP address filtering, digest authentication, user access log, IEEE 802.1X network access control, HTTPS encryption, IEEE 802.1X** network access control, digest authentication, user access log
  • On-board Storage: SD/SDHC memory card slot (card is not included)
  • Indoor/Outdoor: Outdoor
  • Housing/Enclosure Rating: IP66-rated aluminum casing and a germanium window
  • Color: White
  • Dimensions: Please See Diagram in Pictures
  • Weight: 3475 g (7.66 lb.) - 3650 g (8.05 lb.)
  • Operating Temperature: -40 ºC to +60 ºC (-40 ºF to 140 ºF)
  • Operating Humidity: 10-85% RH
  • Shock resistance: 70 g shock pulse with a 11 ms half-sine profile
  • Vibration resistance: 4.3 g random vibration for 8 hours (three axes
  • Power: Power over Ethernet IEEE 802.3af Class 3, 8-20 V DC, max 12 W or 20-24 V AC 50-60 Hz, max 18 VA, power supply not included
  • Warranty: 3 Year
  • What's Included: Connector kit, Installation Guide, CD with User’s Manual, recording software, installation and management tools, Windows decoder 1-user license, wall mount bracket, 5 m (16 ft.) Ethernet cable

AXIS Q1921-E (0385-001) Thermal Network Camera Overview

AXIS Q1921-E Thermal Network Camera is a perfect complement to any network video system that needs to secure an area 24 hours a day, seven days a week. The camera uses thermal imaging, which allows users to detect people, objects and incidents in complete darkness and difficult conditions such as smoke, haze, dust and light fog. Includes built-in support for Pan/Tilt heads using the Pelco-D Protocol and SD/SDHC card slot for storing memory locally. AXIS Q1921-E is an out-of-the-box, outdoor-ready thermal network camera that is designed to withstand harsh weather conditions. It comes with a built-in heater for the window. It's ideal for cost efficient 24/7 area or perimeter surveillance of all security applications such as roads, tunnels and airports. AXIS Q1921-E Thermal Network Camera supports H.264 video compression, which reduces bandwidth usage and storage needs by up to 80% compared to Motion JPEG. The camera provides multiple, individually configurable video streams in H.264 and Motion JPEG. Each stream can have its own color palette setting. AXIS Q1921-E has two-way audio support, which allows the user to communicate with visitors and intruders. With a resolution of 384x288 pixels and multiple lens alternatives, AXIS Q1921-E can optimize detection performance to meet most application requirements:
