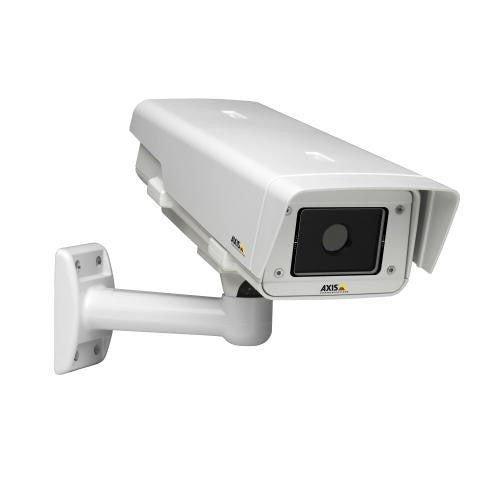

AXIS Q1922-E (0503-001) 19mm Thermal Network Camera

AXIS

AXIS Q1922-E (0503-001) 19mm Thermal Network Camera

$7,499.00
Discontinued
SKU: Q1922-E (0503-001)

Replaced by: AXIS Q1932-E/PT MOUNT 19MM THERMAL CAMERA (0609-001/0705-001)

Link to Manufacturer's Page

Contact

Discontinued; replaced by the Q1932-E.

AXIS Q1922-E Features

  • Resolution: Sensor is 640x480. Image can be scaled up to 800x600 (D1)
  • Image Sensor: Uncooled Micro bolometer 640x480, pixel size: 17µm
  • Sensitivity: NETD < 100 mK
  • Day/Night: No
  • Mechanical IR Cut Filter: No
  • Minimum Illumination: N/A
  • IR Illuminators: No
  • IR Illuminator Range: N/A
  • Zoom: No
  • Focus: Auto
  • Field of View: 32° horizontal angle of view
  • Compression Styles: H.264 (MPEG-4 Part 10/AVC); Motion JPEG
  • Frame Rate: Up to 30 fps within EU, Norway, Switzerland, Canada, USA, Japan, Australia, New Zealand; Up to 8.3 fps in other countries. (Frame rate above 9 fps may be subject to export control regulations)
  • Image Settings: Compression, brightness, exposure control, rotation, mirroring of
  • Privacy Mask: Yes
  • Built-in Microphone: No
  • Audio Capabilities: Supports two-way, full duplex via external microphone or line input, line output
  • Alarm/Event Management: Video motion detection, active tampering alarm, audio detection. Support for AXIS Camera Application Platform enables installation of additional applications
  • ONVIF: YES
  • Security: Password protection, IP address filtering, digest authentication, user access log, IEEE 802.1X network access control, HTTPS encryption
  • On-board Storage: SD/SDHC memory card slot (card is not included)
  • Indoor/Outdoor: Indoor
  • Housing/Enclosure Rating: IP66-rated aluminum casing and a germanium window
  • Dimensions: Please See Diagram in Pictures
  • Weight: 3475 g (7.66 lb.) - 3650 g (8.05 lb.)
  • Operating Temperature: -40 ºC to +60 ºC (-40 ºF to 140 ºF)
  • Operating Humidity: 10%-85% RH
  • Shock resistance: 70 g shock pulse with a 11 ms half-sine profile
  • Vibration resistance: 4.3 g random vibration for 8 hours (three axes
  • Power: Power over Ethernet IEEE 802.3af Class 3; 8-20 V DC, max 13 W or 20-24 V AC 50-60 Hz, max 20 VA, power supply not included
  • Warranty: 3 Years
  • What's Included: Connector kit, Installation Guide, CD with User’s Manual, recording software, installation and management tools, Windows decoder 1-user license, wall mount bracket, 5 m (16 ft.) Ethernet cable

AXIS Q1922-E Overview

AXIS Q1922-E Thermal Network Camera is a perfect complement to any network video system that needs to secure an area 24 hours a day, seven days a week. The camera uses thermal imaging, which allows users to detect people, objects and incidents in complete darkness and difficult conditions such as smoke, haze, dust and light fog. AXIS Q1922-E is an out-of-the-box, outdoor-ready thermal network camera that is designed to withstand harsh weather conditions. It comes with a built-in heater for the window. It's ideal for cost efficient 24/7 area or perimeter surveillance of all security applications such as roads, tunnels and airports. AXIS Q1922-E Thermal Network Camera supports H.264 video compression, which reduces bandwidth usage and storage needs by up to 80% compared to Motion JPEG. The camera provides multiple, individually configurable video streams in H.264 and Motion JPEG. Each stream can have its own color palette setting. AXIS Q1922-E has two-way audio support, which allows the user to communicate with visitors and intruders. With a resolution of 640x480 pixels and multiple lens alternatives, AXIS Q1922-E can optimize detection performance to meet most application requirements. Installation is made easy and cost-effective with Power over Ethernet (IEEE 802.3af), which eliminates the need for power cables. Since thermal cameras are less sensitive to problems with light conditions and normal shadows, they can achieve higher accuracy than conventional cameras in most intelligent video applications. AXIS Q1922 Thermal Network Camera offers VGA resolution, advanced software processing and a frame rate of up to 30 Fps which improve thermal image quality, providing more pixels on target and enhancing the possibility to efficiently integrate intelligent video applications. The camera also provides capacity for third-party analytics modules, including support for AXIS Camera Application Platform. AXIS Q1922-E Thermal Network Camera supports ONVIF for interoperability between network video products.
