AXIS

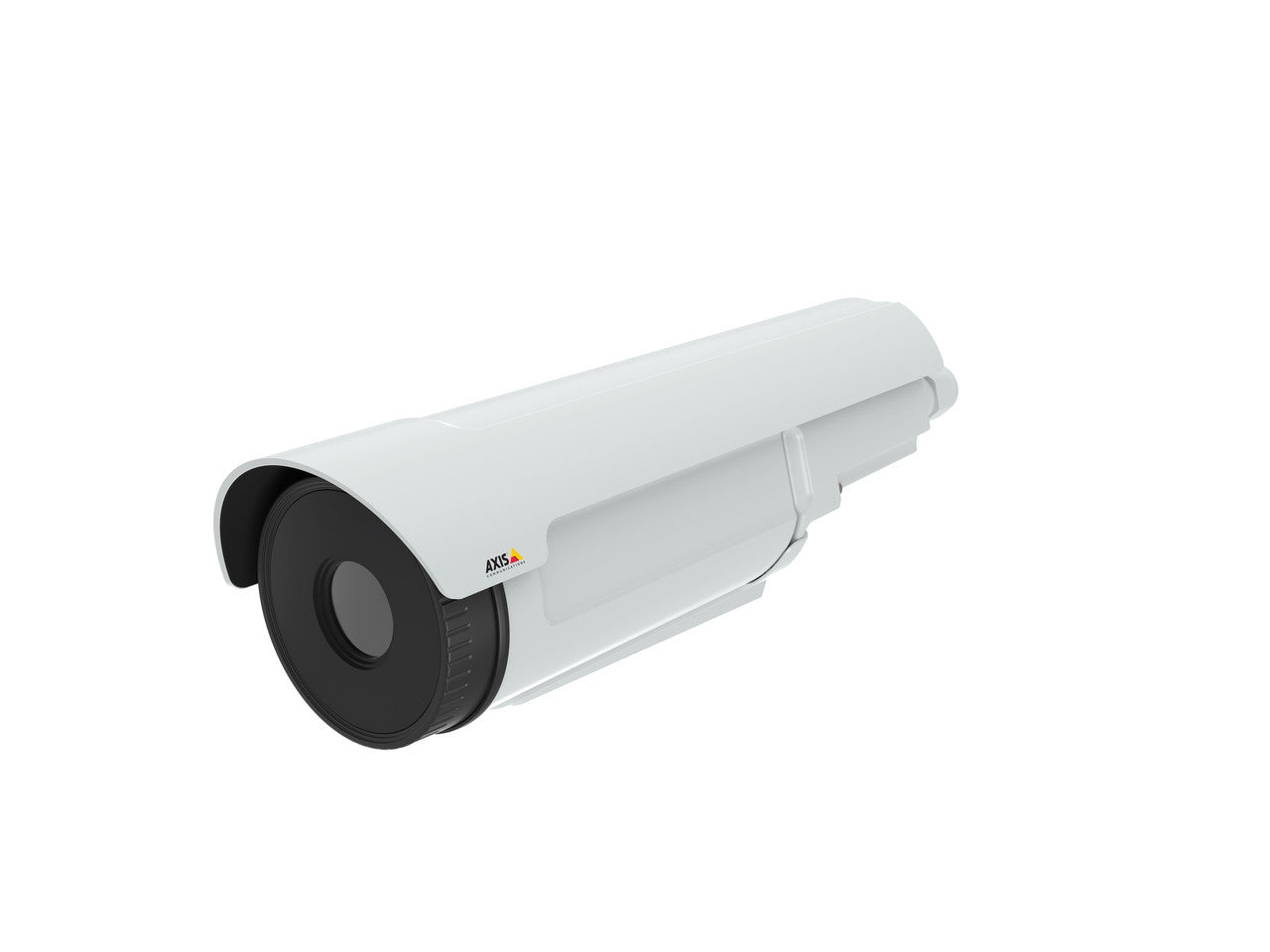

AXIS Q1931-E (0683-001) PT Mount 7mm Outdoor Thermal Network Camera
Replaced by: no replacement ()
- Max Resolution: 768x576
- Image Sensor: Uncooled Micro bolometer 384x288, pixel size: 17µm
- Day/Night: No
- Mechanical IR Cut Filter: No
- Minimum Illumination: N/A
- IR Illuminators: No
- IR Illuminator Range: N/A
- Lens: 7mm / F1.2
- Field of View: 55° horizontal
- Compression Styles: H.264 and Motion JPEG
- Frame Rate: up to 30 fps
- Image Settings: Compression, brightness, exposure control, rotation, mirroring of images, text and image overlay, privacy mask, Preset positions, Guard tour, Driver selection, Control queue
- Privacy Mask: Yes
- Built-in Microphone: No
- Audio Capabilities: None
- Alarm/Event Management: Video motion detection, Cross line detection, AXIS Camera Application Platform enabling installation of additional applications, Intelligent video, Temperature, External input, Time scheduled, Edge storage events, PTZ preset, File upload: FTP, HTTP, network share and email, Notification: email, HTTP and TCP, External output activation, Pre- and post-alarm video buffering, Video and audio recording to edge storage, PTZ preset, Guard tour
- ONVIF: Yes
- Security: Password protection, IP address filtering, digest authentication, user access log, IEEE 802.1X network access control, HTTPS encryption, digest authentication, user access log
- Users: N/A
- On-board Storage: microSD/microSDHC/microSDXC slot supporting memory card up to 64 GB (card not included)
- Indoor/Outdoor: Outdoor
- Housing/Enclosure Rating: IP66-rated metal casing (Aluminium) with integrated dehumidifying membrane and a germanium window
- Dimensions: 105mm (H) x 309mm (L) (4.1" x 12.2")
- Weight: 1800 g (4.0 lb)
- Operating Temperature: -40 °C to 60 °C (-40 °F to 140°F)
- Operating Humidity: 10-100% RH (condensing)
- Power: Power over Ethernet IEEE 802.3af Class 3, 8-20 V DC, max 12 W or 20-24 V AC 50-60 Hz, max 18 VA, power supply not included
- Warranty: 3 Years
- What's Included: Installation Guide, Installation and Management Software CD, Windows decoder 1-user license, AXIS Cross Line Detection license, AXIS Video Motion Detection 2.1, Torx T20 screw driver
- PLEASE NOTE: Also available with a 13mm lens (0684-001), 35mm lens (0685-001), and a 60mm lens (0686-001)
A broad range of lenses make it easy to detect and identify people, objects and incidents. Thanks to a new filter that removes the blur and ghost effects, the images are kept sharp in all conditions. AXIS Q1931-E PT Mount cameras offer an improved thermal imaging contrast, keeping the noise levels low at the same time as no details or temperature information are lost. The scene is easier to understand; surroundings are recognizable, and objects, accidents or people are identifiable. AXIS Q1931-E PT Mount includes intelligent video applications, such as AXIS Cross Line Detection license and AXIS Video Motion Detection 2.1. The thermal camera can complement any IP surveillance system being the first to detect accidents and sending notification to another network camera. Based on the alarm trigger, a PTZ network camera can be re-directed to the point of interest. Since thermal cameras are less sensitive to problems with light conditions and shadows, they can achieve higher accuracy and less false alarms than conventional cameras in most applications. AXIS Q1931–E PT Mount is a bullet-style outdoor-ready model that is specifically designed to be mounted on pan-tilt motors. This allows the camera to cover larger areas and also gives the option of directing the camera upwards. The thermal camera includes a serial port for RS422/RS485 communication with pan-tilt motors. (Pan-tilt motor not included). It comes with a built-in heater for the window. The camera is further protected with shock detection, a capability that sends an alarm to personnel during attempted vandalism.
