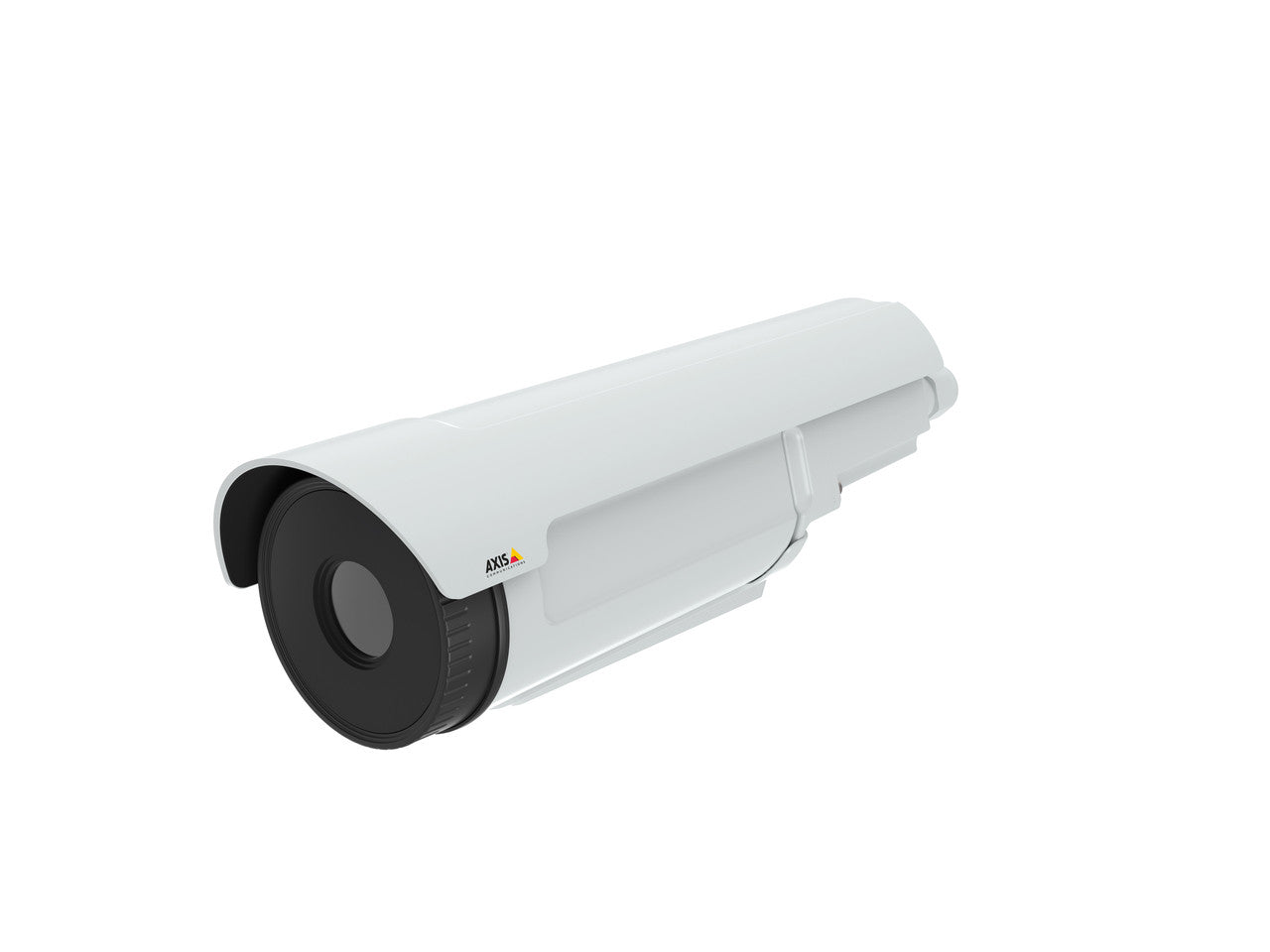

AXIS Q1932-E (0707-001) 60mm PT Mount Outdoor Thermal Network Camera

AXIS

AXIS Q1932-E (0707-001) 60mm PT Mount Outdoor Thermal Network Camera

Sale price$9,999.00
Discontinued
SKU: Q1932-E (0707-001)

Replaced by: AXIS Q1942-E PT MOUNT 60MM 30FPS (0987-001)

Contact

AXIS Q1932-E (0707-001) Features
  • Max Resolution: Sensor is 640x480. Image can be scaled up to 800x600 (SVGA)
  • Image Sensor: Uncooled Micro bolometer 640x480, pixel pitch: 17µm
  • Day/Night: No
  • Mechanical IR Cut Filter: No
  • Minimum Illumination: N/A
  • IR Illuminators: No
  • IR Illuminator Range: N/A
  • Lens Type: Fixed
  • Focal Length: 60mm / F1.25
  • Zoom: N/A
  • Pan/Tilt: Preset positions, Guard tour, Driver selection, Control queue
  • Iris: N/A
  • Focus: Auto
  • Field of View: 10° view
  • Compression Styles: H.264 (MPEG-4 Part 10/AVC), H.264 Main and Baseline Profile, Motion JPEG
  • Frame Rate: up to 30 fps
  • Image Settings: Compression, brightness, contrast, exposure control, rotation, mirroring of images, Multiple palettes, text and image overlay, privacy mask
  • Privacy Mask: Yes
  • Built-in Microphone: No
  • Audio Capabilities: None
  • Alarm/Event Management: Video motion detection, Cross line detection, Audio detection, shock detection, AXIS Camera Application Platform enabling installation of additional applications, Intelligent video, Temperature, External input, Time scheduled, Edge storage events, Notification: email, HTTP and TCP, External output activation, Pre- and post-alarm video buffering, Video recording to edge storage, Audio recording to edge storage, PTZ preset, Guard tour
  • ONVIF: Yes
  • Security: Password protection, IP address filtering, digest authentication, user access log, IEEE 802.1X network access control, HTTPS encryption
  • Users: N/A
  • On-board Storage: microSD/microSDHC/microSDXC slot supporting memory card up to 64 GB (card not included)
  • Indoor/Outdoor: Outdoor
  • Housing/Enclosure Rating: IP66-rated metal casing (Aluminium) with integrated dehumidifying membrane and a germanium window
  • Dimensions: 105mm (H) x 112mm (W) x 344mm (L) (4.13" x 4.13" x 13.54")
  • Weight: 2000 g (4.4 lb.)
  • Operating Temperature: -40 °C to 60 °C (-40 °F to 140°F)
  • Operating Humidity: 10-100% RH
  • Power/Consumption: Power over Ethernet IEEE 802.3af/802.3at Type 1 Class 3 /max. 10 W; 8-28 V DC / max. 11 W; 20-24 V AC 50-60 Hz / max. 15 VA (power supply not included)
  • Warranty: 3 Years
  • What's Included: Installation Guide, Installation and Management Software CD, Windows decoder 1-user license, AXIS Cross Line Detection license, AXIS Video Motion Detection 2.1, Torx T20 screw driver
  • PLEASE NOTE: Also available with a 10mm lens (0704-001), 19mm lens (0705-001), and a 35mm lens (0706-001)
AXIS Q1932-E Overview

With superb image quality and a VGA thermal resolution, AXIS Q1932-E and AXIS Q1932-E PT Mount optimize detection performance and perimeter surveillance to meet the most challenging requirements. The thermal resolution of 640x480 and a range of lenses make it easy to detect and identify people, objects, and incidents. Thanks to new image processing algorithms AXIS Q1932-E/Q1932-EPT Mount cameras offer improved image contrast while keeping noise levels low without adding blurs and ghost effects. Since thermal cameras are less sensitive to problems with light conditions and shadows, they can achieve higher accuracy and fewer false alarms than conventional cameras in most applications. Hence, enhancing the possibility to efficiently use intelligent video applications. These bullet-style cameras are outdoor-ready with IP66 rating and they are designed to withstand harsh weather conditions. AXIS Q1932-E and AXIS Q1932-E PT Mount operate in temperatures from -40ºC to 60 ºC (-40 ºF to 140 ºF) using Power over Ethernet (IEEE 802.3af), making the installation easy and cost-effective. AXIS Q1932-E PT Mount offers the possibility of mounting the camera on a pan/tilt motor to increase installation flexibility.
