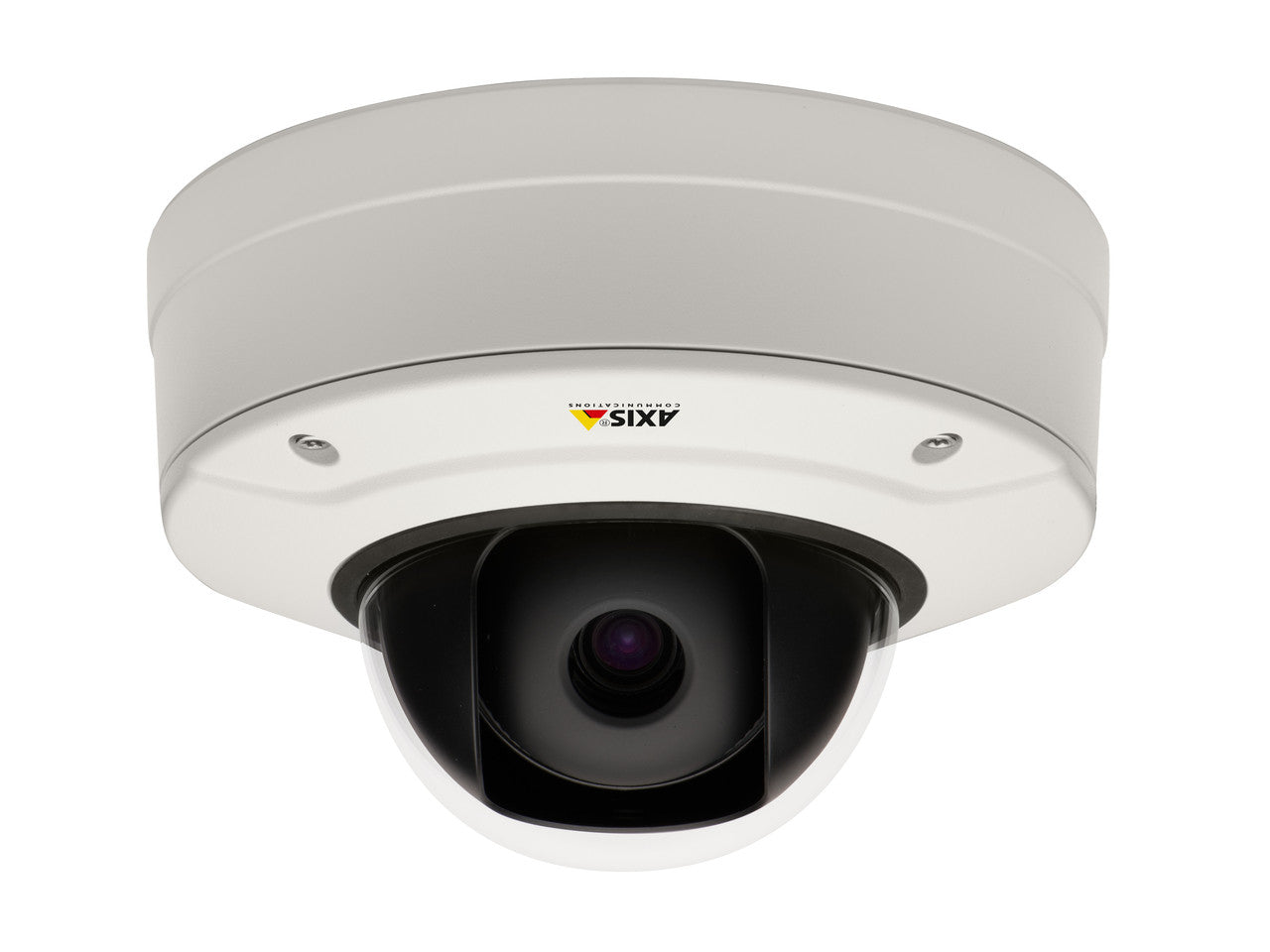

AXIS Q3505-V 9mm (0616-001) Indoor HD Dome Network Camera
Replaced by: AXIS Q3505-V 9MM MKII (0872-001)
AXIS Q3505-V 9mm (0616-001) Features
- Max Resolution: 1920x1200 (2.3 MP/HDTV 1080p)
- Image Sensor: 1/2.8” Progressive scan RGB CMOS
- Day/Night: Yes
- Mechanical IR Cut Filter: Yes
- Minimum Illumination: Color: 0.18 lux, F1.3; B/W: 0.04 lux, F1.3 (30fps); Color: 0.36 lux, F1.3; B/W: 0.08 lux, F1.3 (60fps)
- IR Illuminators: No
- IR Illuminator Range: N/A
- Lens Type: Varifocal with remote focus and zoom
- Focal Length: 3-9 mm / F1.3
- Zoom: 3x optical zoom and 2x digital zoom & digital PTZ
- Iris: P-iris
- Field of View: 105° - 35° horizontal angle of view
- Compression Styles: H.264 (MPEG-4 Part 10/AVC) Baseline, Main and High profiles, Motion JPEG
- Frame Rate: 30fps @ 1920x1080 (with WDR), 60fps @ 1920x1080 (without WDR)
- WDR Technology: Yes, up to 120dB
- Image Settings: Compression, Color, Brightness, Sharpness, Contrast, White balance, Exposure control, Exposure zones, Backlight compensation, Fine tuning of behavior at different light levels, Electronic Image Stabilization, Barrel distortion correction, Rotation: 0°, 90°, 180°, 270°, auto, including Corridor Format, Text and image overlay, Privacy masks, Mirroring of images
- Privacy Mask: Yes
- Built-in Microphone: No
- Audio Capabilities: Two way via external balanced/unbalanced microphone input or line input, line output
- Alarm/Event Management: Intelligent video (Video motion detection, Active tampering alarm, Audio detection, Gatekeeper, AXIS Camera Application Platform (ACAP) enabling installation of additional applications), External input, Edge storage events, Shock detection, File upload: FTP, HTTP, network share and email, Notification: email, HTTP and TCP, External output activation, Pre- and post-alarm video buffering, Video and audio recording to edge storage, Play audio clip, Zoom preset, Overlay text, Send SNMP trap
- ONVIF: Yes
- Security: Password protection, IP address filtering, HTTPS encryption, IEEE 802.1X network access control, digest authentication, user access log
- On-board Storage: MicroSD/SDHC/microSDXC slot supporting memory card up to 64 GB (card not included)
- Indoor/Outdoor: Indoor
- Housing/Enclosure Rating: IP52-rated, IK10 impact-resistant casing with polycarbonate dome, aluminum base and dehumidifyingmembrane
- Weight: 1.2 kg (2.6 lb)
- Operating Temperature: -10ºC to 50ºC (14ºF to 122ºF)
- Operating Humidity: 10 - 85% RH (non-condensing)
- Power: Power over Ethernet (PoE) IEEE 802.3af/802.3at Type 1 Class 2
- Warranty: 3 Year
- What's Included: Installation Guide, Installation and Management Software CD, Windows decoder 1-user license, Mounting bracket, Drill hole template, Cable gaskets, Resistorx T20 L-key, I/O connector
- Please note: This camera is also available with a 9-22mm varifocal lens, part number 0617-001
AXIS Q3505-V 9mm (0616-001) Overview
AXIS Q3505-V is a high-performance, vandal-resistant fixed dome for high-security applications indoors. The camera is available with wide or telephoto lens. The camera delivers HDTV 1080p video at up to 60 frames per second, providing smooth video even when capturing fast movements. The camera's Wide Dynamic Range (WDR) – Forensic Capture capability provides perfectly balanced video quality in scenes with strong variations in light, while the Lightfinder technology enables outstanding image usability in poor light. The camera can seamlessly transition between handling WDR and low-light conditions.AXIS Q3505-V also supports Axis’ Electronic Image Stabilization (EIS), which greatly improves video quality in situations where the camera is subject to vibration. Furthermore, the camera supports barrel distortion correction and includes optical zoom that can be used when monitoring a scene. When using the optical zoom for monitoring, an operator can zoom in on an object, or the camera can zoom in automatically when the Gatekeeper functionality is applied. AXIS Q3505-V is designed for reliable and vandal-resistant installation. It has IK10 impact resistance and IP52-rated dust and water protection. If the camera is hit, the shock detection capability can send an alarm to alert an operator. The camera’s versatile cable management features service loop space and optional connection to any type of conduit. AXIS Q3505-V includes a mounting bracket for mounting on junction boxes or directly on walls or ceilings, and supports accessories for recessed mounting or mounting on pendants. The remote zoom and focus capability provides convenient zooming and focusing over the network, eliminating the need for hands-on fine-tuning. The camera’s leveling assistant and autorotation aids are useful at installation to ensure horizontally aligned and correctly rotated images wherever or however the cameras are mounted. AXIS Q3505-V is ideal for high-security applications in areas such airports, railway stations, and industrial and critical infrastructure facilities.
