AXIS

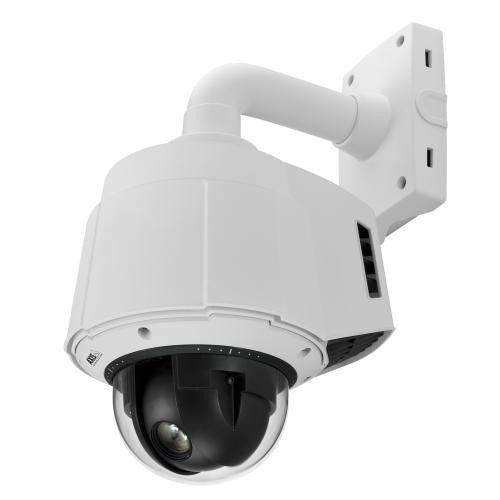

AXIS Q6032-C (0458-001) PTZ Dome Network Camera with Active Cooling
Replaced by: AXIS Q6042-C PTZ NETWORK CAMERA (0562-001)
Discontinued.
AXIS Q6032-C (0458-001) PTZ Dome Network Camera with Active Cooling Features
- Resolution: Extended D1 752x480 to 176x120 (60 Hz), Extended D1 736x576 to 176x144 (50 Hz)
- Image Sensor: 1/4” ExView HAD progressive scan CCD
- Sensor Size: 1/4"
- Day/Night: YES
- Mechanical IR Cut Filter: Yes
- Minimum Illumination: Color: 0.5 lux at 30 IRE F1.4; B/W: 0.008 lux at 30 IRE F1.4
- IR Illuminators: NO
- IR Illuminator Range: N/A
- Lens Type: Zoom
- Focal Length: f=3.3 – 119 mm
- Zoom: 36x optical zoom and 12x digital zoom, total 432x zoom
- Pan Range: Pan: 360° endless, 0.05° – 450°/s
- Tilt Range: Tilt: 220°, 0.05° – 450°/s
- Focus: Auto Focus
- Field of View: Horizontal angle of view: 57.2° - 1.7°
- Compression Styles: H.264 (MPEG-4 Part 10/AVC); Motion JPEG
- Frame Rate: H.264: Up to 30/25 fps (60/50 Hz) in all resolutions, Motion JPEG: Up to 30/25 fps (60/50 Hz) in all resolutions
- Image Settings: Wide dynamic range (WDR), manual shutter time, compression, color, brightness, sharpness, white balance, exposure control, exposure zones, backlight compensation, fine tuning of behavior at low light, rotation, text and image overlay, 32 individual 3D privacy masks, image freeze on PTZ (AXIS Q6032-C: Electronic image stabilization (EIS))
- Privacy Mask: 32 individual 3D privacy masks
- Built-in Microphone: N/A
- Audio Capabilities: External
- Alarm/Event Management: Video motion detection, autotracking, AXIS Camera Application Platform, external input, PTZ preset, temperature, memory card full
- Security: Password protection, IP address filtering, HTTPS encryption*, IEEE 802.1X network access control*, digest authentication, user access log
- Users: Software Dependent
- On-board Storage: SD/SDHC/SDXC slot supporting memory card up to 64 GB (card not included); support for recording to network share (networkattached storage or file server)
- Indoor/Outdoor: Outdoor
- Housing/Enclosure Rating: IP66- and NEMA 4X-rated metal casing (aluminum), polycarbonate (PC) clear dome, sunshield (PC/ASA)
- Dimensions: See Diagram in Pictures
- Weight: 5.6 kg (12.4 lb.)
- Operating Temperature: -20 °C to 75 °C (-4 °F to 167 °F) with active cooling
- Operating Humidity: Humidity 10 - 100% RH (condensing)
- Power: See specifications under AXIS T8605 Media Converter Switch
- Warranty: 3 Year
- What's Included:AXIS T8605 Media Converter Switch with 2xRJ-45, 2xSFP, 2x1/O, power in, Bracket Mount DIN Clip, 5 m (16 ft.) IP66-rated multi-connector cable, Installation Guide, Installation and
- Management Software CD including AXIS Camera Companion, Windows decoder 1-user license
AXIS Q6032-C (0458-001) PTZ Dome Network Camera with Active Cooling Overview
AXIS Q6032-C is an outdoor-ready PTZ dome network camera that provides reliable surveillance in environments such as deserts, where high ambient temperatures and solar radiation require cameras to operate in extreme heat. With extended D1 resolution and 36x optical zoom with autofocus, the camera enables coverage of large areas and great details. It is ideal for use at construction and open-pit mining sites, along pipelines, and for city surveillance. With a built-in active cooling system,AXIS Q6032-C can operate in temperatures up to75°C (167°F). The dust- and waterproof camera is IP66- and NEMA 4X-rated and meets the tough military standard, MIL-STD-810G, ensuring reliable operation in harsh weather conditions such as sandstorms. The supplied media converter switch allows AXIS Q6032-C to be connected in a daisy chain to the network using standard network or fiber optic cables that help lower the cost of installing the cameras over long distances. The media converter switch also enables the cameras to connect to external alarm devices via two configurable input/output ports, and to 12 V power. AXIS Q6032-C has a fast and precise pan/tilt response. In addition, it can tilt 20° above the horizon for a total tilt range of 220°, enabling better views, especially over uneven terrain. With Active Gatekeeper, the camera can automatically move to a preset position upon motion detection in a pre-defined area, and track the detected object. The camera also supports third-party intelligent video applications through the AXIS Camera Application Platform.
