AXIS

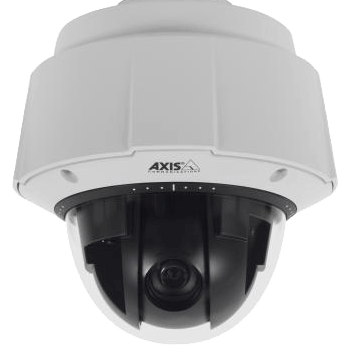

AXIS Q6032-E (0318-004) PTZ Dome Network Camera
Replaced by: AXIS Q6042-E PTZ NETWORK CAMERA (0560-004)
- Resolution: Extended D1 752x480 to 176x120 (60 Hz); Extended D1 736x576 to 176x144 (50 Hz)
- Image Sensor: 1/4” ExView HAD progressive scan CCD
- Day/Night: Automatic
- Mechanical IR Cut Filter: Yes
- Minimum Illumination: Color: 0.5 lux at 30 IRE F1.4, B/W: 0.008 lux at 30 IRE F1.4
- IR Illuminators: No
- IR Illuminator Range: N/A
- Focal Length: f 3.3 – 119 mm
- Zoom: 36x optical zoom and 12x digital zoom, total 432x zoom
- Focus: Autofocus
- Field of View: Horizontal angle of view: 57.2° - 1.7°
- Compression Styles: H.264 (MPEG-4 Part 10/AVC), Motion JPEG
- Frame Rate: Up to 30/25 fps (60/50 Hz) in all resolutions & compressions
- Image Settings: Wide dynamic range (WDR), electronic image stabilization (EIS), manual shutter time, compression, color, brightness, sharpness, white balance, exposure control, exposure zones, backlight compensation, fine tuning of behavior at low light, rotation, text and image overlay, 32 individual 3D privacy masks, image freeze on PTZ
- Privacy Mask: Yes
- Built-in Microphone: No
- Audio Capabilities: N/A
- Alarm/Event Management: Video motion detection, autotracking, AXIS Camera Application Platform, PTZ preset, temperature, memory card full, File upload: FTP, HTTP, network share and email, Notification: email, HTTP and TCP, PTZ preset, guard tour, video recording to edge storage, autotracking, day/night mode, Pre- and post-alarm video buffering
- ONVIF: Yes
- Security: Password protection, IP address filtering, HTTPS encryption*, IEEE 802.1X network access control*, digest authentication, user access log
- Users: N/A
- On-board Storage: Yes
- Indoor/Outdoor: Outdoor
- Housing/Enclosure Rating: IP66-, NEMA 4X- and IK10-rated, metal casing (aluminum), polycarbonate (PC) clear dome, sunshield (PC/ASA)
- Dimensions: 23 cm (9") x 28 cm (11")
- Weight: 3.5 kg (7.7 lb.)
- Operating Temperature: -40 °C to 50 °C (-40 °F to 122 °F)
- Operating Humidity: 15 - 100% RH (non-condensing)
- Power: High Power over Ethernet (High PoE), max. 60 W, AXIS T8124 High PoE Midspan 1-port: 100-240 V AC, max. 74 W
- Warranty: 3 Years
- What's Included: AXIS T8124 High PoE Midspan 1-port, RJ45 IP66-rated Pushpull Connector, sunshield, Installation Guide, Installation and Management Software CD, Windows decoder 1-user license
- Notes: Mounting bracket not included. Please see data sheet for mounting accessories.
AXIS Q6032-E (0318-004) PTZ Dome Network Camera Overview
The AXIS Q6032-E (0318-004) dome network camera is IP66 rated for weather protection. The device can function at temperatures ranging from -40 to 122 degrees Fahrenheit. The camera can power up at -40 degrees, as well, ensuring that monitoring resumes following a power outage. This camera is suitable for monitoring challenging outdoor locations. These locations include airports, parking lots, perimeters and city monitoring. The camera has day and night functionality, providing 24 hours of security for the user. This camera is housed in a sturdy dome that provides protection from the elements. If an object or a person moves through the frame, the AXIS Q6032-E dome network camera will automatically follow. The device has a powerful zoom lens, which provides 35x of optical magnification and 12x of digital magnification. The camera can capture clear, readable images of small objects such as license plates at over 500 feet. The camera is also capable of tilting to a full 20 degrees above the horizon. This makes it suitable for applications where terrain and constructed objects provide hindrances to clear lines of sight. The AXIS Q6032-E dome network camera can transmit two streams at once. It uses the H.264 format. This format saves bandwidth but also provides very high-quality images. The AXIS Q6032-E dome network camera is also provided with an Application Programming Interface (API) and has onboard flash memory for embedded applications.
