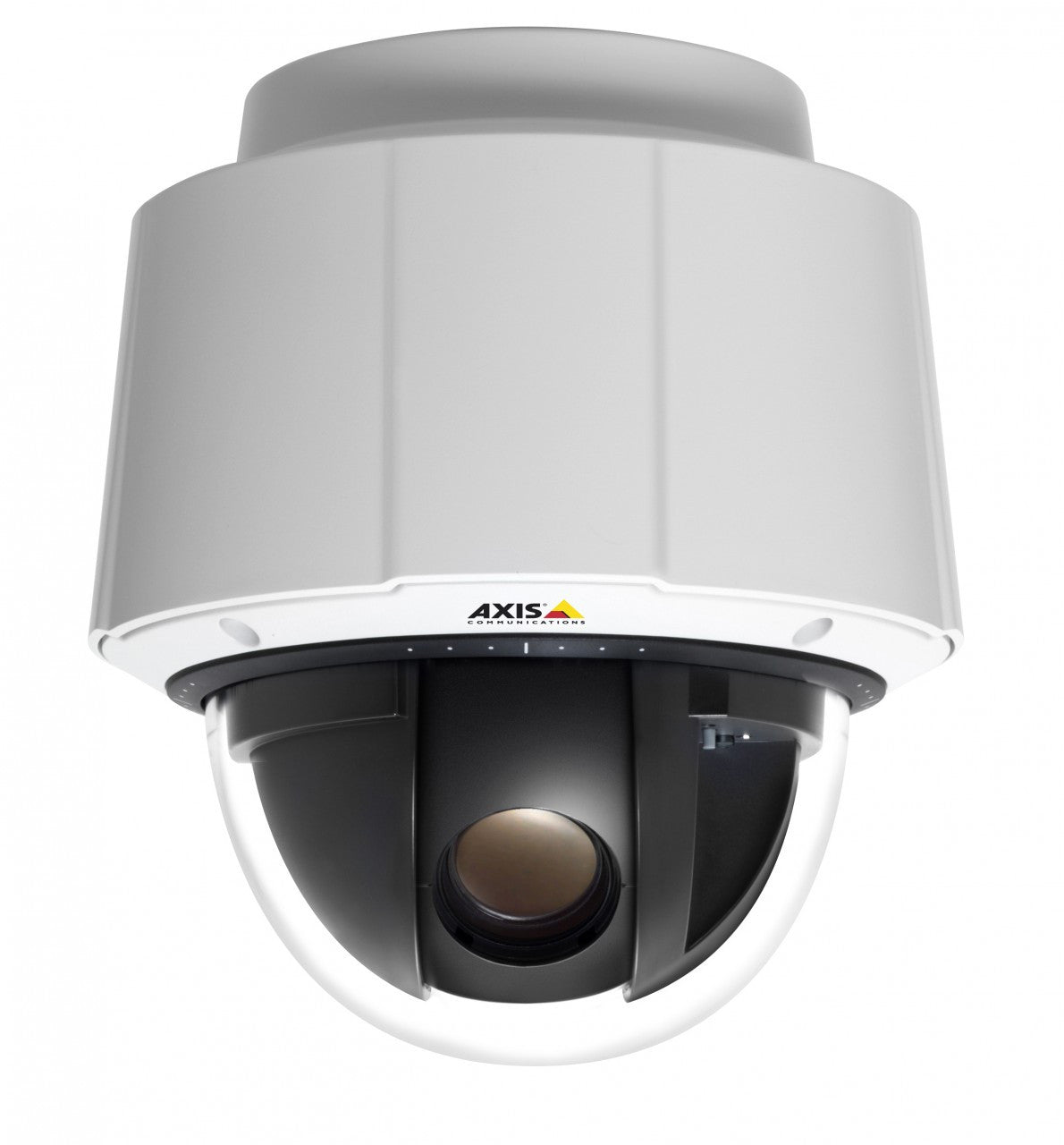

AXIS Q6034 (0363-004) PTZ Dome Network IP Camera
Replaced by: AXIS Q6044 PTZ NETWORK CAMERA (0570-004)
- Resolution: HDTV 720p 1280x720 to 320x180
- Image Sensor: 1/3” progressive scan CCD 1.3 megapixel
- Day/Night: automatic
- Mechanical IR Cut Filter: Yes
- Minimum Illumination: Color: 0.74 lux at 30 IRE F1.6; B/W: 0.04 lux at 30 IRE F1.6
- IR Illuminators: No
- IR Illuminator Range: N/A
- Focal Length: f 4.7 – 84.6 mm
- Zoom: 18x optical zoom and 12x digital zoom, total 216x zoom
- Iris: N/A
- Focus: autofocus
- Field of View: horizontal angle of view: 55.2° - 3.2°
- Compression Styles: H.264 (MPEG-4 Part 10/AVC), Motion JPEG
- Frame Rate: Up to 30/25 fps (60/50 Hz) in all resolutions & compressions
- Image Settings: Wide dynamic range (WDR), manual shutter time, compression, color, brightness, sharpness, white balance,exposure control, exposure zones, backlight compensation, fine tuning of behavior at low light, rotation, text and image overlay, 32 individual 3D privacy masks, image freeze on PTZ
- Privacy Mask: Yes
- Built-in Microphone: No
- Audio Capabilities: Two-Way but only available with the AXIS (5502-491) P55/Q60 Multi-connector cable
- Alarm/Event Management: Video motion detection, audio detection, autotracking, external input, PTZ preset, temperature, memory card full, File upload: FTP, HTTP, network share and email Notification: email, HTTP and TCP External output, PTZ preset, guard tour, play audio clip, video and audio recording to edge storage, autotracking, day/night mode, Pre- and post-alarm video buffering
- ONVIF: Yes
- Security: Password protection, IP address filtering, HTTPS encryption*, IEEE 802.1X network access control*, digest authentication, user access log
- Users: N/A
- On-board Storage: Yes
- Indoor/Outdoor: Indoor
- Housing/Enclosure Rating: IP52-rated, metal casing (aluminum), acrylic (PMMA) clear dome
- Dimensions: 24 x 20 x 20 cm (9.4" x 7.8" x 7.8")
- Weight: 2.6 kg (5.7 lb.); 3.2 kg (7.1 lb.) with drop-ceiling mount
- Operating Temperature: 0 °C to 50 °C (32 °F to 122 °F)
- Operating Humidity: 15 - 85% RH (non-condensing)
- Power: Power over Ethernet Plus (PoE+) IEEE 802.3at, max. 30 W; AXIS T8123 High PoE Midspan 1-port included: 100-240 V AC, max. 37 W; 20-24 V AC, max. 27 VA; 24-34 V DC, max. 19 W
- Warranty: 3 Years
- What's Included: AXIS T8123 High PoE Midspan 1-port, mounting kit for hard and drop ceilings, smoked dome cover, Installation Guide, Installation
The AXIS Q6034 (0363-004) PTZ dome network camera provides both wide-area coverage and the capability to zoom in to great detail on a scene. The camera has an IP52-rated housing, ensuring that dust and dripping water do not damage the device. This makes the AXIS Q6034 PTZ dome network camera ideal for use in warehouses, casinos, airports, sports venues and other locations where a large area needs to be monitored but where there is a need to zoom in on the action, as well. The HDTV format provides razor-sharp images that conform to SMPTE 296M standards. The AXIS Q6034 PTZ dome network camera captures images in 1280x720 resolution in the 16:9 format. The camera transmits these images in the H.264 codec, as well as the Motion JPEG format, with support for two separate streams. These formats allow the camera to provide clear images without overwhelming the network with data. The camera is also capable of providing 18x optical zoom and 12x digital zoom. Combined with the wide coverage area, this makes the AXIS Q6034 PTZ dome network camera flexible. The AXIS Q6034 PTZ dome network camera is also capable of being powered with High Power over Ethernet technology. This simplifies installation as only one cord is required to provide both power and network connectivity to the device. The night and day functionality means that the camera captures clear images under low lighting conditions.
