AXIS

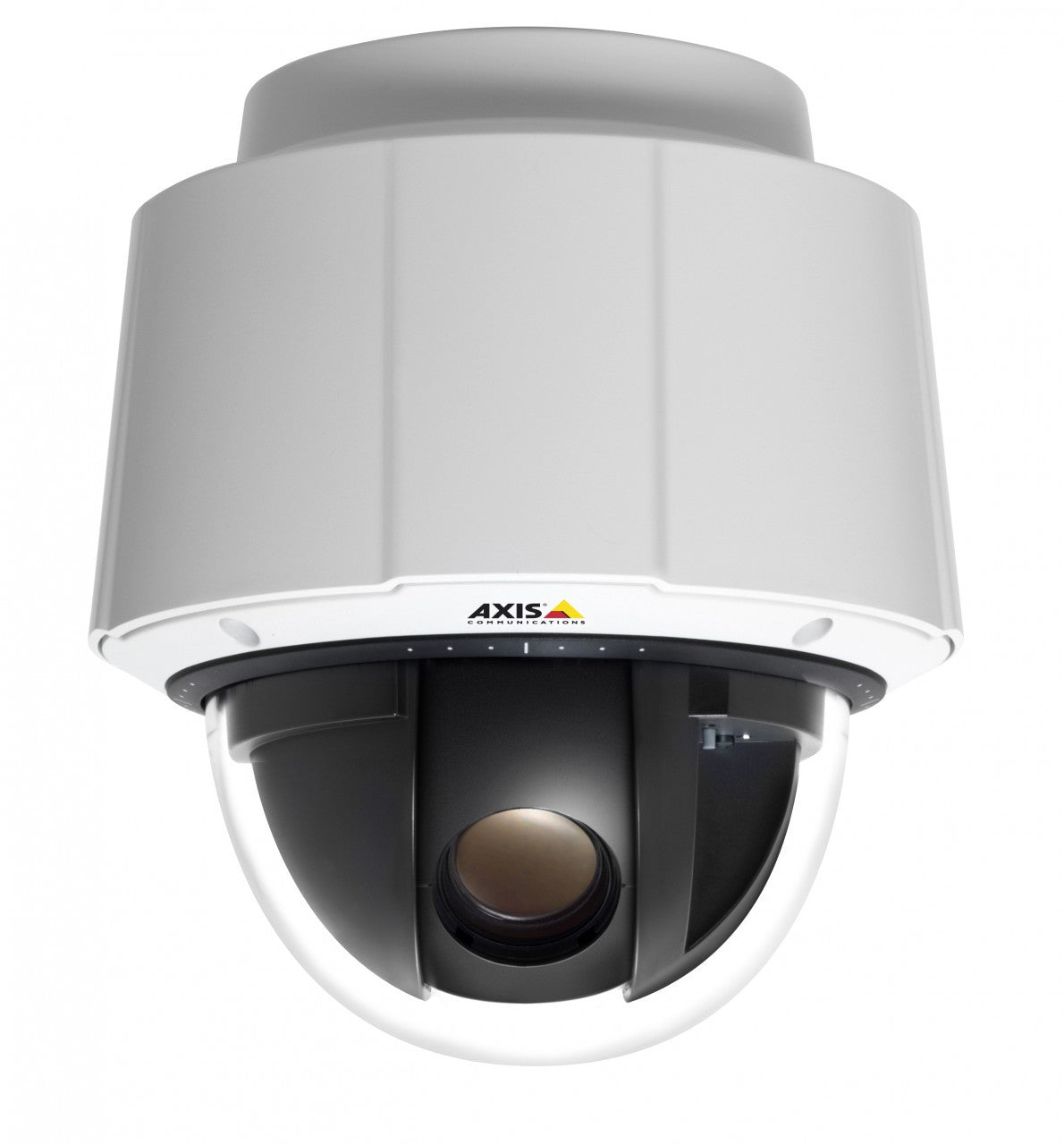

AXIS Q6034-E (0362-004) PTZ Dome Network Camera
Replaced by: AXIS Q6044-E PTZ NETWORK CAMERA (0572-004)
- Resolution: HDTV 720p 1280x720 to 320x180
- Image Sensor: 1/3” progressive scan CCD 1.3 megapixel
- Day/Night: Automatic
- Mechanical IR Cut Filter: Yes
- Minimum Illumination: Color: 0.74 lux at 30 IRE F1.6; B/W: 0.04 lux at 30 IRE F1.6
- IR Illuminators: No
- IR Illuminator Range: N/A
- Focal Length: f 4.7 – 84.6 mm
- Zoom: 18x optical zoom and 12x digital zoom, total 216x zoom
- Iris: N/A
- Focus: autofocus
- Field of View: horizontal angle of view: 55.2° - 3.2°
- Compression Styles: H.264 (MPEG-4 Part 10/AVC), Motion JPEG
- Frame Rate: Up to 30/25 fps (60/50 Hz) in all resolutions & compressions
- Image Settings: Wide dynamic range (WDR), manual shutter time, compression, color, brightness, sharpness, white balance,exposure control, exposure zones, backlight compensation, fine tuning of behavior at low light, rotation, text and image overlay, 32 individual 3D privacy masks, image freeze on PTZ
- Privacy Mask: Yes
- Built-in Microphone: No
- Audio Capabilities: N/A
- Alarm/Event Management: Video motion detection, autotracking, AXIS Camera Application Platform, PTZ preset, temperature, memory card full, File upload: FTP, HTTP, network share and email, Notification: email, HTTP and TCP, PTZ preset, video recording to edge storage, guard tour, autotracking, day/night mode, pre- and post-alarm video buffering
- ONVIF: Yes
- Security: Password protection, IP address filtering, HTTPS encryption*, IEEE 802.1X network access control*, digest authentication, user access log
- Users: N/A
- On-board Storage: Yes
- Indoor/Outdoor: Outdoor
- Housing/Enclosure Rating: IP66-, NEMA 4X- and IK10-rated, metal casing (aluminum), polycarbonate (PC) clear dome, sunshield (PC/ASA)
- Dimensions: 23 x 28 cm (9" x 11")
- Weight: 3.5 kg (7.7 lb.)
- Operating Temperature: -40 °C to 50 °C (-40 °F to 122 °F)
- Operating Humidity: 15 - 100% RH (condensing)
- Power: High Power over Ethernet (High PoE), max. 60 W; AXIS T8124 High PoE Midspan 1-port: 100-240 V AC, max. 74 W
- Warranty: 3 Years
- What's Included: AXIS T8124 High PoE Midspan 1-port, RJ45 IP66-rated Pushpull Connector, sunshield, Installation Guide, Installation and Management Software CD, Windows decoder 1-user license
AXIS Q6034-E (0362-004) PTZ Dome Network Camera Overview
The AXIS Q6034-E (0362-004) PTZ dome network camera is capable of functioning in extreme outdoor environments. The camera is rated at IP66, ensuring it stands up to the worst punishment the elements can deliver. This camera is not only capable of functioning at an extreme range of temperatures, but can start up in temperatures as low as -40 degrees Fahrenheit. This camera is also provided with HD image quality and powerful zoom features, making it suitable for use in locations such as airports, parking lots, warehouses and public transit stations. The AXIS Q6034-E PTZ dome network camera delivers rich video. Providing HDTV resolution that conforms to SMPTE 296M standards, the camera has excellent color fidelity and produces a 1280x720 pixel resolution image in the 16:9 format. The camera is capable of operating in low light conditions and can deliver simultaneous multiple streams in separate formats. The camera uses both the H.264 and Motion JPEG codecs, allowing for optimal bandwidth usage without compromising image quality. The camera delivers its images in full frame rate in HTDV 720p format. The camera also delivers 12x of digital zoom and 18x of optical zoom. The AXIS Q6034-E PTZ dome network camera can pan at 450 degrees per second, delivering fast coverage. It can also tilt a full 20 degrees above the horizon. The Automatic Gatekeeper function automatically tracks moving objects.
