AXIS Q6035-E
AXIS Q6035-E on a T91A61 Wall Bracket
AXIS Q6035-E on a T91A61 Wall Bracket
AXIS Q6035-E on a T91A63 Ceiling Bracket
AXIS Q6035-E with Drop Ceiling Mount
AXIS Q6035-E with Hard Ceiling Mount
Dimensions

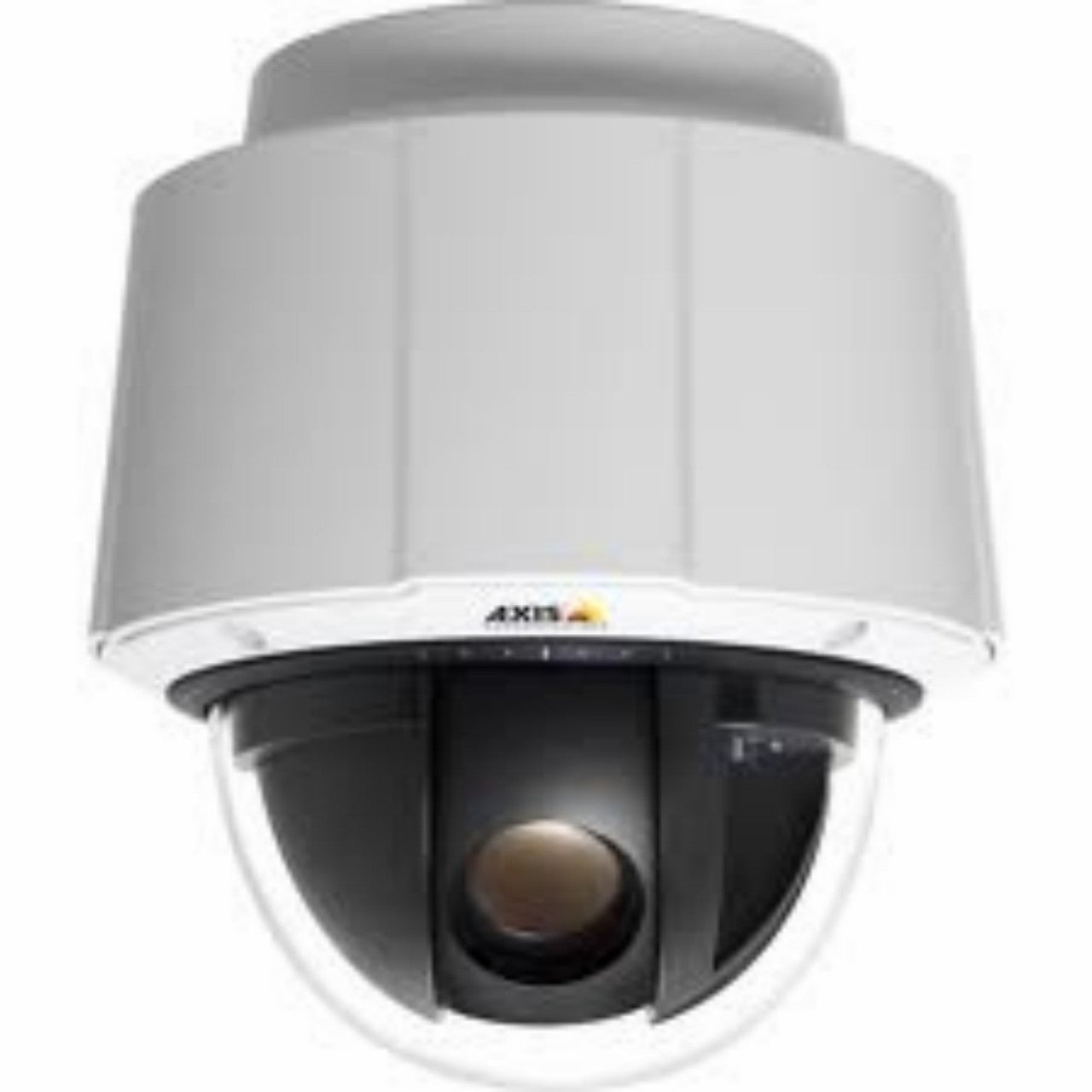

AXIS Q6035-E (0445-004) PTZ Dome Network Camera

AXIS

AXIS Q6035-E (0445-004) PTZ Dome Network Camera

$3,599.00
Discontinued
SKU: Q6035-E (0445-004)

Replaced by: AXIS Q6045-E PTZ NETWORK CAMERA (0566-004)

Link to Manufacturer's Page

Contact

Discontinued.

AXIS Q6035-E (0445-004) PTZ Dome Network Camera Features
  • Resolution: HDTV 1080p 1920x1080 to 320x180 or HDTV 720p 1280x720 to 320x180
  • Image Sensor: 1/2.8 progressive scan CMOS
  • Day/Night: Automatic
  • Mechanical IR Cut Filter: Yes
  • Minimum Illumination: Color: 0.8 lux at 30 IRE F1.6; B/W: 0.04 lux at 30 IRE F1.6
  • IR Illuminators: No
  • IR Illuminator Range: N/A
  • Lens Type: F1.6 - 3.5
  • Focal Length: f=4.7 - 94 mm
  • Zoom: 20x optical zoom and 12x digital zoom, total 240x zoom
  • Iris: N/A
  • Focus: Autofocus
  • Field of View: 54.1° - 2.9° (HDTV 1080p); 37.6° - 2° (HDTV 720p)
  • Compression Styles: H.264 (MPEG-4 Part 10/AVC) Motion JPEG
  • Frame Rate: H.264: Up to 30/25 fps (60/50 Hz) in HDTV 1080p or H.264: Up to 60/50 fps (60/50 Hz) in HDTV 720p
  • Image Settings: Wide dynamic range (WDR), manual shutter time, compression, color, brightness, sharpness, white balance, exposure control, exposure zones, backlight compensation, fine tuning of behavior at low light, rotation, text and image overlay, 32 individual 3D privacy masks, image freeze on PTZ
  • Privacy Mask: Yes
  • Built-in Microphone: Yes
  • Audio Capabilities: Two-Way
  • Alarm/Event Management: Video motion detection, autotracking, AXIS Camera Application Platform, PTZ preset, temperature, memory card full, File upload: FTP, HTTP, network share and email notification: email, HTTP and TCP; PTZ preset, guard tour, video recording to edge storage, autotracking, day/night mode, pre- and post-alarm video buffering
  • ONVIF: Yes
  • Security: Password protection, IP address filtering, HTTPS encryption*, IEEE 802.1X network access control*, digest authentication, user access log
  • Users: N/A
  • On-board Storage: Yes
  • Indoor/Outdoor: Outdoor
  • Housing/Enclosure Rating: IP66-, NEMA 4X- and IK09-rated, metal casing (aluminum), polycarbonate (PC) clear dome, sunshield (PC/ASA)
  • Dimensions: 23 cm (9") x 28 cm (11")
  • Weight: 3.5 kg (7.7 lb.)
  • Operating Temperature: -40 °C to 50 °C (-40 °F to 122 °F)
  • Operating Humidity: 15 - 100% RH (condensing)
  • Power: High Power over Ethernet, max. 60 W; AXIS T8124 High PoE Midspan 1-port: 100-240 V AC, max. 74 W
  • Warranty: 3 Years
  • What's Included: Installation Guide, Installation and Management Software CD, Windows decoder 1-user license, Sunshield, RJ45 IP66-rated Push-pull Connector, AXIS T8124 High PoE Midspan 1-port
AXIS Q6035-E (0445-004) PTZ Dome Network Camera Overview

For the highest video quality and performance, AXIS Q6035-E PTZ Dome Camera is the choice. Designed for the most demanding applications, the outdoor-ready PTZ dome provides HDTV coverage of large areas, great details when zooming in, and high-speed pan/tilt performance. It is ideal for city and perimeter surveillance, as well as at airports and seaports. The HDTV 1080p complies with the SMPTE 274M standard regarding a 1920x1080 pixel resolution (twice the resolution of HDTV 720p), full frame rate at 25/30 frames per second, HDTV color fidelity and a 16:9 format. AXIS Q6035-E also supports 50/60 frames per second in HDTV 720p, ideal for applications that require the capture of quick movements and smoother video. The high resolution together with 20x optical zoom with autofocus results in exception zoomed-in details. AXIS Q6035/-E provides a fast pan/tilt speed of 450° per second, enabling the camera to get to a different viewing position very quickly. The cameras support multiple H.264 and Motion JPEG video streams. H.264 greatly optimizes bandwidth and storage without compromising image quality. AXIS Q6035-E is IP66- and NEMA 4X-rated and requires no external housing, which minimizes installation mistakes. Its unique Arctic Temperature Control ensures camera start-up, even at -40 °C (-40 °F). Due to the HDTV 1080p resolution, the camera’s 20x optical zoom with autofocus provides extremely detailed zoomed-in views that are comparable to a 4CIF-resolution camera with more than twice the optical zoom. AXIS Q6035-E supports day/night functionality for clear video even in low light conditions, and wide dynamic range for better visibility of objects in dark and light areas of a scene. With Active Gatekeeper, the camera can automatically move to a preset position upon motion detection in a pre-defined area, and track the detected object. The camera also enables easy setup of an automatic tour using the tour recording functionality, which enables a device such as a joystick to be used to record an operator’s pan/tilt/zoom movements and length of time spent at each point of interest. The tour can then be activated at a touch of a button or at a scheduled time. Support for High Power over Ethernet (High PoE) simplifies installation since only one cable is required for power, video and PTZ controls. The AXIS Q6035-E PTZ Dome Network Camera collected the platinum award in the "IP Video Surveillance Cameras" category at the Govies Government Security Awards at GovSec in April 2012.
