AXIS

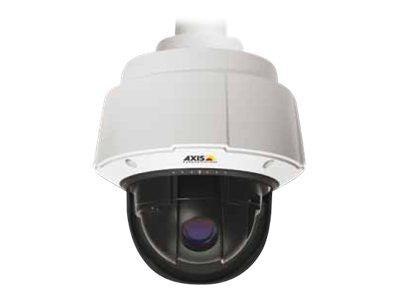

AXIS Q6044-E (0572-004) PTZ Dome Network Camera
Replaced by: AXIS Q6054-E 60Hz (0906-004)
- Max Resolution: 1280x720 (HDTV 720p)
- Image Sensor: 1/3” progressive scan CCD
- Day/Night: Yes
- Mechanical IR Cut Filter: Automatically removable infrared-cut filter
- Minimum Illumination: Color: 0.2 lux at 30 IRE F1.4; B/W: 0.04 lux at 30 IRE F1.4
- IR Illuminators: No
- IR Illuminator Range: N/A
- Focal Length: f=4.4–132 mm, F1.4–4.6
- Zoom: 30x optical zoom and 12x digital zoom, total 360x zoom
- Pan Range: 360° endless
- Tilt Range: 220°
- Number of Presets: 256
- Modes: E-flip, 256 preset positions, Tour recording, Guard tour, Control queue, On-screen directional indicator
- Focus: Autofocus
- Field of View: Horizontal angle of view: 62.9° – 2.2°
- Compression Styles: H.264 Main and Baseline Profiles (MPEG-4 Part 10/AVC); Motion JPEG
- Frame Rate: Up to 30/25 fps (60/50 Hz) in all resolutions & compressions
- Image Settings: Wide dynamic range (WDR), Manual shutter time, Compression, Color, Brightness, Sharpness, White balance, Exposure control, Exposure zones, Backlight compensation, Fine tuning of behavior at low light, Rotation, Text and image overlay, 32 individual 3D privacy masks, Image freeze on PTZ, Electronic image stabilization, Automatic defog
- Privacy Mask: Yes, 32 individual 3D privacy masks
- Built-in Microphone: No
- Audio Capabilities: N/A
- Alarm/Event Management: Video motion detection, Autotracking, Active Gatekeeper, AXIS Camera Application Platform enabling installation of additional applications, Automatic defog, Shock detection, Fan, Heater, Temperature, Manual trigger, Autotracking, Moving, PTZ preset, Edge storage events, File upload: FTP, HTTP, network share and email, Notification: email, HTTP and TCP, PTZ preset, Guard tour, Autotracking, Day/night mode, Video recording to edge storage, Pre- and post-alarm video buffering
- ONVIF: Yes
- Security: Password protection, IP address filtering, HTTPS encryption, IEEE 802.1X network access control, Digest authentication, User access log
- Users: N/A
- On-board Storage: Yes
- Indoor/Outdoor: Outdoor
- Housing/Enclosure Rating: IP66-, NEMA 4X- and IK10-rated, metal casing (aluminum), polycarbonate (PC) clear dome, sunshield (PC/ASA)
- Dimensions: 232 mm x 280 mm (9.1" x 11")
- Weight: 3.7 kg (8.2 lb.)
- Operating Temperature: -40 °C to 50 °C (-40 °F to 122 °F)
- Operating Humidity: 10 - 100% RH (non-condensing)
- Power: High Power over Ethernet (High PoE), max. 60 W, AXIS T8124 High PoE Midspan 1-port: 100-240 V AC, max. 74 W
- Warranty: 3 Years
- What's Included: AXIS T8124 High PoE Midspan 1-port, RJ45 IP66-rated Push-pull Connector, Sunshield, Installation Guide, Installation and Management Software CD, Windows decoder 1-user license
- Notes: Mounting bracket not included. Please see data sheet for mounting accessories.
AXIS Q6044-E (0572-004) Overview
AXIS Q6044-E is a top-of-the-line, outdoor-ready PTZ dome providing HDTV 720p, 30x optical zoom, and fast and precise pan/tilt performance for wide area coverage and great detail when zooming in. It is ideal for city surveillance, airports, train stations, harbors and stadiums. Designed for easy and reliable installation, the camera is vandal-resistant (IK10) and has shock detection, surge protection (railway standard), and protection against dust, rain and snow (IP66 and NEMA 4X). It can operate in temperatures ranging from -40 ºC to 50 ºC (-40 ºF to 122 ºF). The camera’s Arctic Temperature Control ensures safe start-up in extreme cold. In windy conditions, the camera’s electronic image stabilization provides clearer, more useful video and helps reduce the size of video files, which leads to lower bandwidth and storage use. AXIS Q6044-E also supports automatic defog, which, when activated, automatically detects fog in the scene and digitally filters it out of view to provide clearer video. The robust AXIS Q6044-E is designed for round-the-clock pan/tilt/zoom operation. It can be automatically directed to 256 preset positions using guard tour. AXIS Q6044-E can tilt 20º above the horizon, making it possible for the camera to see higher than its mounting position. This is helpful, for instance, at a stadium where there is a need to look up at the stands. Support for Active Gatekeeper enables the camera to automatically move to a preset position when motion is detected in a pre-defined area, and track the detected object. The camera also has substantial capacity for third-party intelligent video applications that are based on the AXIS Camera Application Platform. AXIS Q6044-E has a built-in memory card slot for local storage of recordings. The camera is powered by High Power over Ethernet using the supplied High PoE midspan.
