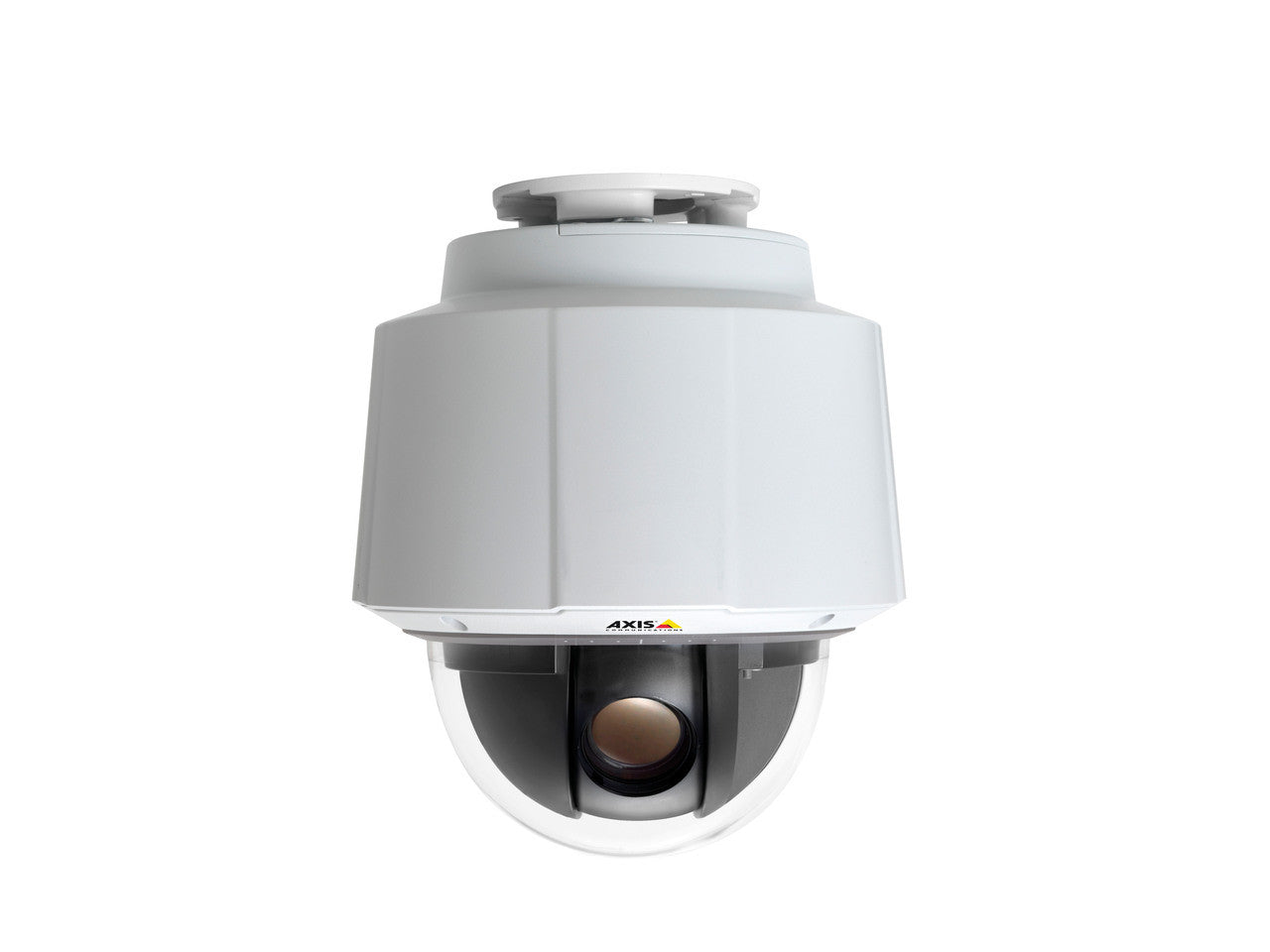

AXIS Q6045 (0564-004) PTZ Dome Network Camera
Replaced by: AXIS Q6045 Mk II 60Hz (0692-004)
- Max Resolution: 1920x1080 (HDTV 1080p)
- Image Sensor: 1/3” progressive scan CMOS
- Day/Night: Yes
- Mechanical IR Cut Filter: Automatically removable infrared-cut filter
- Minimum Illumination: Color: 0.6 lux at 30 IRE F1.6; B/W: 0.04 lux at 30 IRE F1.6
- IR Illuminators: No
- IR Illuminator Range: N/A
- Focal Length: f=4.45 – 89 mm, F1.6 – 2.9
- Zoom: 20x optical zoom and 12x digital zoom, total 240x zoom
- Pan Range: 360° endless
- Tilt Range: 180°
- Number of Presets: 256
- Modes: E-flip, 256 preset positions, Tour recording, Guard tour, Control queue, On-screen directional indicator
- Focus: Autofocus
- Field of View: Horizontal angle of view: 62.98° - 3.49°
- Compression Styles: H.264 Main and Baseline Profiles (MPEG-4 Part 10/AVC); Motion JPEG
- Frame Rate: Up to 30/25 fps (60/50 Hz) in all resolutions & compressions
- Image Settings: Wide dynamic range (WDR), Highlight compensation, Manual shutter time, Compression, Color, Brightness, Sharpness, White balance, Exposure control, Exposure zones, Backlight compensation, Fine tuning of behavior at low light, Rotation, Text and image overlay, 32 individual 3D privacy masks, Image freeze on PTZ
- Privacy Mask: Yes, 32 individual 3D privacy masks
- Built-in Microphone: No
- Audio Capabilities: Requires multi-connector cable (sold separately) for external microphone or line input, and line output
- Alarm/Event Management: Basic analytics (not to be compared with third-party analytics): Video motion detection, Highlight compensation, Object removed, Enter/exit detector, Fence detector, Object counter, Autotracking, Active Gatekeeper, AXIS Camera Application Platform enabling installation of additional applications, Shock detection, Fan, External input, Manual trigger, Autotracking, PTZ moving, PTZ preset, Edge storage events, File upload: FTP, HTTP, network share and email, Notification: email, HTTP and TCP, External output, PTZ preset, Guard tour, Play audio clip, Video and audio recording to edge storage, Autotracking, Day/night mode, Pre- and post-alarm video buffering
- ONVIF: Yes
- Security: Password protection, IP address filtering, HTTPS encryption, IEEE 802.1X network access control, Digest authentication, User access log
- Users: N/A
- On-board Storage: Yes, SD/SDHC/SDXC slot supporting memory card up to 64 GB
- Indoor/Outdoor: Indoor
- Housing/Enclosure Rating: IP52-rated metal casing (aluminum), acrylic (PMMA) clear dome
- Dimensions: 198 x 240mm (7.8" x 9.4")
- Weight: 2.6 kg (5.7 lb)
- Operating Temperature: °C to 50 °C (32 °F to 122 °F
- Operating Humidity: 10 - 85% RH (non-condensing)
- Power: Power over Ethernet Plus (PoE+) IEEE 802.3at, max. 30 W, AXIS T8123 High PoE midspan 1-port: 100-240 V AC, max. 37 W; 24–34 V DC, max. 19 W; 20–24 V AC, max. 27 VA
- Warranty: 3 Years
- What's Included: AXIS T8123 High PoE Midspan 1-port, Mounting kit for hard and drop ceilings, Smoked dome cover, Installation Guide, Installation and Management Software CD, Windows decoder 1-user license
- Notes: Mounting bracket not included. Please see data sheet for mounting accessories.
AXIS Q6045 (0564-004) Overview
AXIS Q6045 is a top-of-the-line indoor PTZ dome, offering a rich viewing experience with HDTV 1080p, 20x optical zoom, and fast and precise pan/tilt performance for superb wide area coverage and great detail when zooming in. It is ideal for airports, train stations, arenas, shopping malls, warehouses and manufacturing facilities. Endless 360° pan and high zoom, in combination with high resolution, enable AXIS Q6045 to monitor an extremely wide area and provide detailed surveillance at great distances. Supporting round-the-clock pan/tilt/zoom operation, the robust camera can be automatically directed to 256 preset positions using guard tour. AXIS Q6045 has IP52-rated protection against dust and dripping water, and support for Power over Ethernet Plus (IEEE 802.3at) using the supplied High PoE midspan. The PTZ dome also has shock detection, which mechanically detects and triggers an alarm if the camera has been hit. AXIS Q6045 comes with built-in video analytics such as highlight compensation (which masks bright lights for ease of viewing), object removed, fence detector, object counter, enter/exit detection, autotracking and Active Gatekeeper. The camera also has substantial capacity for third-party intelligent video applications. With an optional multi-connector cable, AXIS Q6045 supports two-way audio, audio detection, input/output ports for connection to external devices and AC/DC power. The camera has a built-in memory card slot for local storage of recordings
