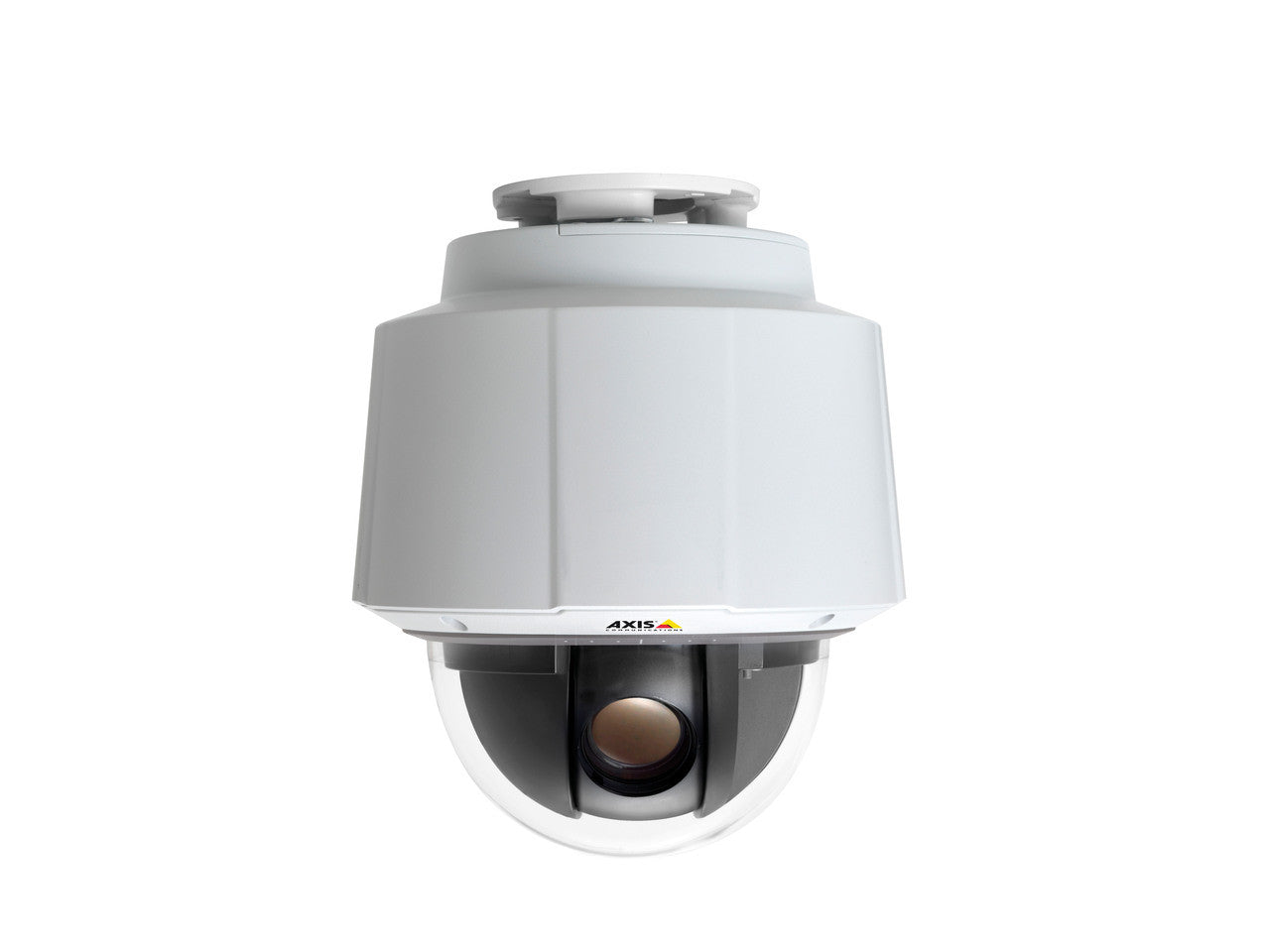

AXIS Q6045 Mk II (0692-004) PTZ Dome Network Camera
Replaced by: AXIS Q6055 60Hz (0908-004)
- Max Resolution: 1920x1080 (HDTV 1080p)
- Image Sensor: 1/2.8” Progressive Scan CMOS
- Day/Night: Yes
- Mechanical IR Cut Filter: Automatically removable infrared-cut filter
- Minimum Illumination: Color: 0.3 lux at 30 IRE F1.6;B/W: 0.03 lux at 30 IRE F1.6
- IR Illuminators: No
- IR Illuminator Range: N/A
- Focal Length: 4.44-142.6 mm, F1.6-4.41
- Zoom: 32x optical zoom and 12x digital zoom, total 384x zoom
- Pan Range: 360° endless
- Tilt Range: 180°
- Number of Presets: 256
- Modes: E-flip, 256 preset positions, Tour recording, Guard tour, Control queue, On-screen directional indicator, Set new pan 0°, Adjustable zoom speed
- Focus: Autofocus
- Field of View: Horizontal angle of view: 62.8˚-2.23˚; Vertical angle of view: 36.8˚-1.3˚
- Compression Styles: H.264 (MPEG-4 Part 10/AVC) Baseline and Main Profiles Motion JPEG
- Frame Rate: Up to 60/50 fps (60/50 Hz) in HDTV 720p; Up to 30/25 fps (60/50 Hz) in HDTV 1080p
- WDR Technology: Up to 120 dB depending on scene
- Image Settings: Manual shutter time, compression, color, brightness, sharpness, white balance, exposure control, exposure zones, backlight compensation, fine tuning of behavior at low light, rotation: 0°, 180°, text and image overlay, image freeze on PTZ, highlight compensation, automatic defog
- Privacy Mask: Yes, 32 individual 3D privacy masks
- Built-in Microphone: No
- Audio Capabilities: Requires multi-connector cable (sold separately) for external microphone or line input, and line output
- Alarm/Event Management: Analytics (Video motion detection, Shock detection, Autotracking, Active Gatekeeper Highlight compensation Basic Analytics (not to be compared with third-party analytics): Object removed, Enter/Exit detector, Fence detector, Object counter, Highlight compensation), Fan, Temperature, Manual trigger, PTZ moving, PTZ preset, Edge storage events, File upload: FTP, SFTP, HTTP, HTTPS network share and email Notification: email, HTTP, HTTPS and TCP External output activation Video recording to edge storage Pre- and post-alarm video buffering PTZ preset, Overlay text, Send SNMP trap Play audio clip, Audio recording to edge storage
- ONVIF: Yes
- Security: Password protection, IP address filtering, HTTPSa encryption, IEEE 802.1Xa network access control, Digest authentication, User access log, Centralized Certificate Management
- Users: N/A
- On-board Storage: SD/SDHC/SDXC slot
- Indoor/Outdoor: Indoor
- Housing/Enclosure Rating: IP52-rated metal casing (aluminum), acrylic (PMMA) clear dome
- Dimensions: Hard-ceiling: Ø198 x 240 mm (Ø7.8 x 9.4 in), Drop-ceiling: Ø248 x 243 mm (Ø9.8 x 9.6 in)
- Weight: Camera: 2.6 kg (5.7 lb); with drop-ceiling mount: 3.2 kg (7.1 lb)
- Operating Temperature: 0°C to 50 °C (32 °F to 122 °F
- Operating Humidity: 10 - 85% RH (non-condensing)
- Power: Power over Ethernet Plus (PoE+) IEEE 802.3at, max. 30 W; Axis High PoE Midspan 1-port: 100-240 V AC, max. 37 W; 24-34 V DC, max. 19 W; 20-24 V AC, max. 27 VA
- Warranty: 3 Years
- What's Included: Axis High PoE Midspan 1-port, Recessed mount for hard and drop ceilings, Smoked dome cover Installation Guide, Windows decoder 1-user license
AXIS Q6045 (0692-004) Mk II Overview
AXIS Q6045 Mk II is a top-of-the-line indoor PTZ dome, offering a rich viewing experience with HDTV 1080p, 32x optical zoom, and fast and precise pan/tilt performance for superb wide area coverage and great detail when zooming in. It is ideal for airports, train stations, arenas, shopping malls, warehouses and manufacturing facilities. Endless 360° pan and high zoom, in combination with high resolution, enable AXIS Q6045 Mk II to monitor an extremely wide area and provide detailed surveillance at great distances. Supporting round-the-clock pan/tilt/zoom operation, the robust camera can be automatically directed to 256 preset positions using guard tour. AXIS Q6045 Mk II has IP52-rated protection against dust and dripping water, and support for Power over Ethernet Plus (IEEE 802.3at) using the supplied High PoE midspan. The PTZ dome also has shock detection, which mechanically detects and triggers an alarm if the camera has been hit. AXIS Q6045 Mk II comes with built-in video analytics such as highlight compensation (which masks bright lights for ease of viewing), object removed, fence detector, object counter, enter/exit detection, autotracking and Active Gatekeeper. The camera also has substantial capacity for third-party intelligent video applications. With an optional multi-connector cable, AXIS Q6045 Mk II supports two-way audio, audio detection, input/output ports for connection to external devices and AC/DC power. The camera has a built-in memory card slot for local storage of recordings.
