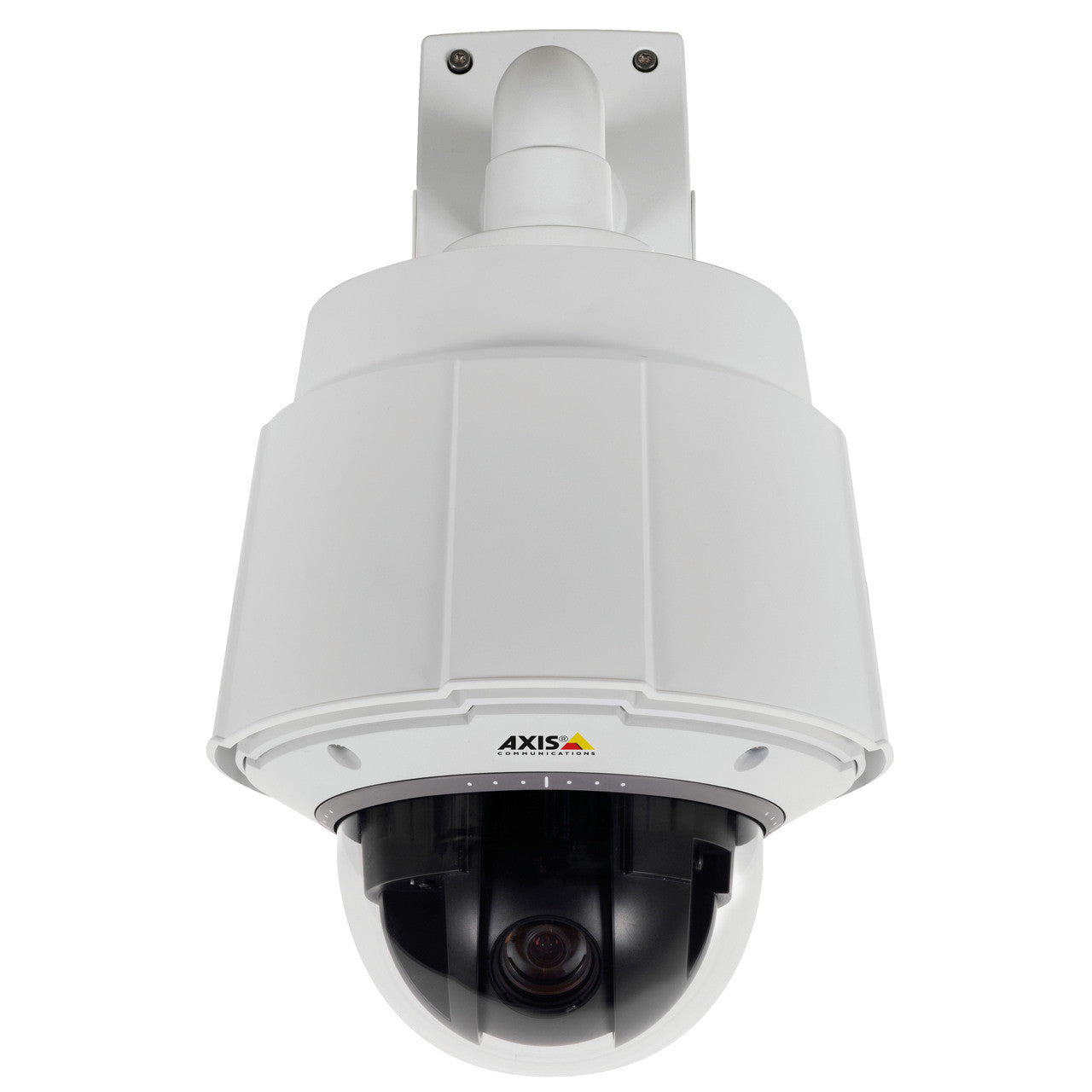

AXIS Q6045-C (0568-001) PTZ Dome Network Camera
Replaced by: AXIS Q6045-C Mk II 60Hz (0696-001)
- Max Resolution: 1920x1080 (HDTV 1080p)
- Image Sensor: 1/3” progressive scan CMOS
- Day/Night: Yes
- Mechanical IR Cut Filter: Automatically removable infrared-cut filter
- Minimum Illumination: Color: 0.6 lux at 30 IRE F1.6; B/W: 0.04 lux at 30 IRE F1.6
- IR Illuminators: No
- IR Illuminator Range: N/A
- Focal Length: f=4.45–89 mm, F1.6–2.9
- Zoom: 20x optical zoom and 12x digital zoom, total 240x zoom
- Pan Range: 360° endless
- Tilt Range: 220°
- Number of Presets: 256
- Modes: E-flip, 256 preset positions, Tour recording, Guard tour, Control queue, On-screen directional indicator
- Focus: Autofocus
- Field of View: Horizontal angle of view: 62.98°–3.49°
- Compression Styles: H.264 Main and Baseline Profiles (MPEG-4 Part 10/AVC); Motion JPEG
- Frame Rate: Up to 30/25 fps (60/50 Hz) in all resolutions & compressions
- Image Settings: Wide dynamic range (WDR), Manual shutter time, Compression, Color, Brightness, Sharpness, White balance, Exposure control, Exposure zones, Backlight compensation, Fine tuning of behavior at low light, Rotation, Text and image overlay, 32 individual 3D privacy masks, Image freeze on PTZ, Highlight compensation
- Privacy Mask: Yes, 32 individual 3D privacy masks
- Built-in Microphone: No
- Audio Capabilities: None
- Alarm/Event Management: Video motion detection, Autotracking, Active Gatekeeper, AXIS Camera Application Platform enabling installation of additional applications, Shock detection, Fan, Heater, Temperature, Manual trigger, Autotracking, Moving, PTZ preset, Edge storage events, Basic analytics (not to be compared with third-party analytics): Object removed, Enter/exit detector, Fence detector, Object counter, Highlight compensation, File upload: FTP, HTTP, network share and email, Notification: email, HTTP and TCP, PTZ preset, Guard tour, Autotracking, Day/night mode, Video recording to edge storage, Pre- and post-alarm video buffering
- ONVIF: Yes
- Security: Password protection, IP address filtering, HTTPS encryption, IEEE 802.1X network access control, Digest authentication, User access log
- Users: N/A
- On-board Storage: Yes, SD/SDHC/SDXC slot supporting memory card up to 64 GB
- Indoor/Outdoor: Outdoor
- Housing/Enclosure Rating: IP66- and NEMA 4X-rated metal casing (aluminum), polycarbonate (PC) clear dome, sunshield (PC/ASA)
- Dimensions: 302 x 330mm (12" x 13")
- Weight: 5.6 kg (12.4 lb)
- Operating Temperature: -20 °C to 75 °C (-4 °F to 167 °F) with active cooling
- Operating Humidity: 10 - 100% RH (non-condensing)
- Power: See specifications under AXIS T8605 Media Converter Switch
- Warranty: 3 Years
- What's Included: AXIS T8605 Media Converter Switch with 2x RJ45, 2x SFP, 2x I/O, Power in, Bracket Mount DIN Clip, 5 m (16 ft) IP66-rated multi-connector cable, Installation Guide, Installation and Management Software CD, Windows decoder 1-user license
- Notes: Mounting bracket not included. Please see data sheet for mounting accessories.
AXIS Q6045-C (0568-001) Overview
AXIS Q6045-C PTZ Dome Camera provides the highest video quality and performance in environments such as deserts, where high ambient temperatures and solar radiation require cameras to operate in extreme heat. With HDTV 1080p and 20x optical zoom with autofocus, the outdoor-ready PTZ dome provides exceptional coverage of large areas and great details when zooming in. It is ideal for use at construction and open-pit mining sites, along pipelines, and for city surveillance. With a built-in active cooling system,AXIS Q6045-C can operate in temperatures up to75°C (167°F). The dust- and waterproof camera is IP66- and NEMA 4X-rated and meets the tough military standard, MIL-STD-810G, ensuring reliable operation in harsh weather conditions such as sandstorms. Support for shock detection enables the camera to trigger an alarm if it has been hit. AXIS Q6045-C has a wide horizontal viewing angle at 62.98° and twice the resolution of HDTV 720p. The camera’s 20x optical zoom, in combination with HDTV 1080p resolution, provides extremely detailed zoomed-in views, enabling, for instance, the license plate of a vehicle to be read some 275 m(900 ft.) away. AXIS Q6045-C offers the same video quality as AXIS Q6045-E. The robust AXIS AXIS Q6045-C is designed for round-the-clock pan/tilt/zoom operation. It has a fast and precise pan/tilt response at 450° per second. It can be automatically directed to 256 preset positions using guard tour. AXIS Q6045-Ccan tilt 20º above the horizon, making it possible for the camera to see higher than its mounting position. The supplied media converter switch allowsAXIS Q6045-C to be connected in a daisy chain to the network using standard network or fiber optic cables that help lower the cost of installing the cameras over long distances. The media converter switch also enables the cameras to connect to external alarm devices via two configurable input/output ports, and to 12 V power. AXIS Q6045-C comes with built-in basic analytics such as highlight compensation, object removed, fence detector, object counter and enter/exit detection. It also supports autotracking and Active Gatekeeper. With Active Gatekeeper, the camera can automatically move to a preset position when motion is detected in a pre-defined area, and track the detected object. The camera also has substantial capacity for third-party intelligent video applications that are based on the AXIS Camera Application Platform.
