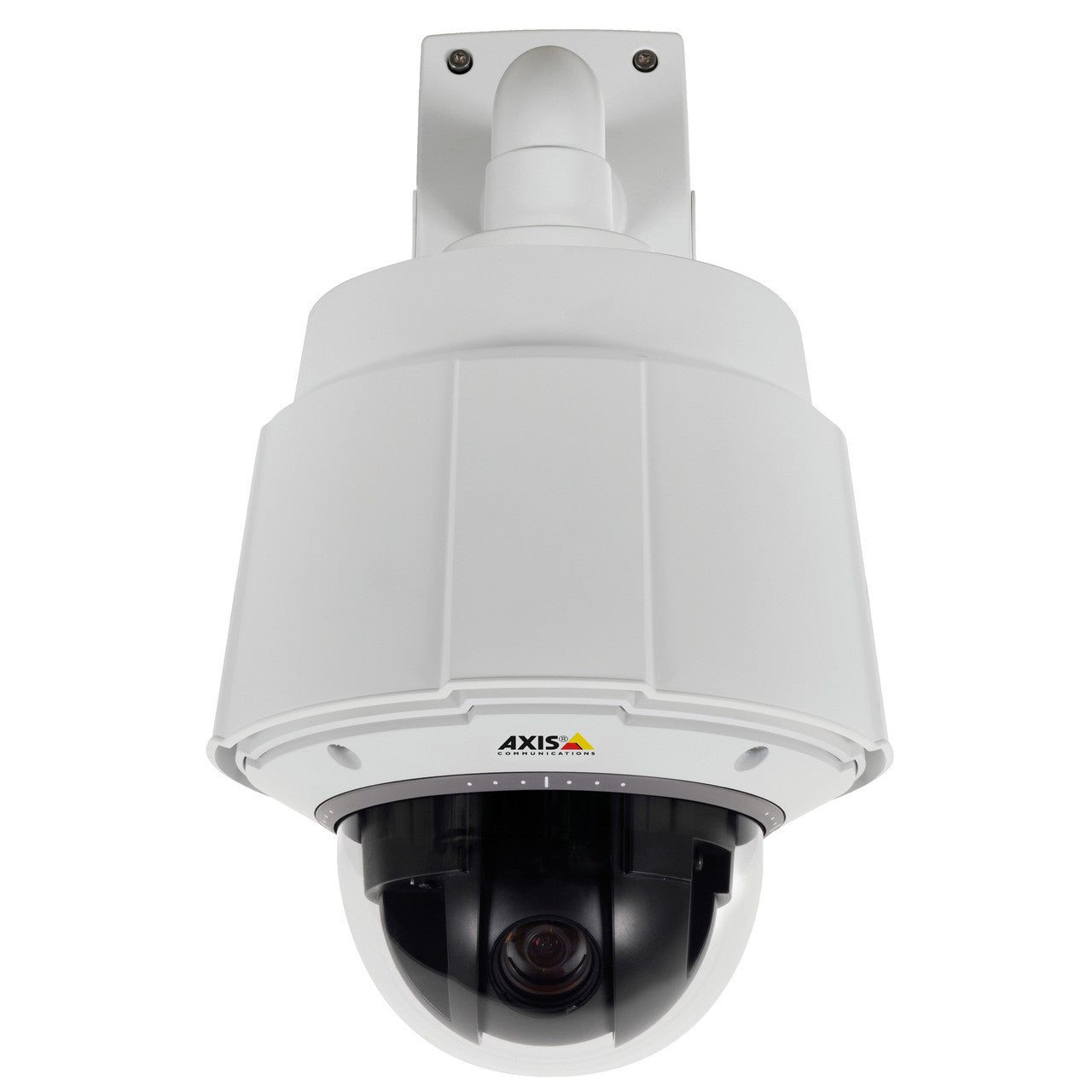

AXIS Q6045-C Mk II (0696-001) PTZ Dome Network Camera
Replaced by: AXIS Q6055-C 60Hz (0943-001)
- Max Resolution: 1920x1080 (HDTV 1080p)
- Image Sensor: " target="_blank"
- Day/Night: Yes
- Mechanical IR Cut Filter: Automatically removable infrared-cut filter
- Minimum Illumination: Color: 0.3 lux at 30 IRE F1.6; B/W: 0.03 lux at 30 IRE F1.6
- IR Illuminators: No
- IR Illuminator Range: N/A
- Focal Length: 4.44-142.6 mm, F1.6-4.41
- Zoom: 32x optical zoom and 12x digital zoom, total 384x zoom
- Pan Range: 360° endless
- Tilt Range: 220°
- Number of Presets: 256
- Modes: E-flip, 256 preset positions, Tour recording, Guard tour, Control queue, On-screen directional indicator, Set new pan 0°, Adjustable zoom speed
- Focus: Autofocus
- Field of View: Horizontal angle of view: 62.8˚-2.23˚; Vertical angle of view: 36.8˚-1.3˚
- Compression Styles: H.264 (MPEG-4 Part 10/AVC) Baseline and Main Profiles Motion JPEG
- Frame Rate: Up to 60/50 fps (60/50 Hz) in HDTV 720p; Up to 30/25 fps (60/50 Hz) in HDTV 1080p
- WDR Technology: Up to 120 dB depending on scene
- Image Settings: Manual shutter time, compression, color, brightness, sharpness, white balance, exposure control, exposure zones, backlight compensation, fine tuning of behavior at low light, rotation: 0°, 180°, text and image overlay, image freeze on PTZ, highlight compensation, automatic defog
- Privacy Mask: Yes, 32 individual 3D privacy masks
- Built-in Microphone: No
- Audio Capabilities: None
- Alarm/Event Management: Analytics (Video motion detection, Shock detection, Autotracking, Active Gatekeeper Highlight compensation Basic Analytics (not to be compared with third-party analytics): Object removed, Enter/Exit detector, Fence detector, Object counter, Highlight compensation), Fan, Temperature, Manual trigger, PTZ moving, PTZ preset, Edge storage events, File upload: FTP, SFTP, HTTP, HTTPS network share and email Notification: email, HTTP, HTTPS and TCP External output activation Video recording to edge storage Pre- and post-alarm video buffering PTZ preset, Overlay text, Send SNMP trap Play audio clip, Audio recording to edge storage
- ONVIF: Yes
- Security: Password protection, IP address filtering, HTTPS encryption, IEEE 802.1X network access control, Digest authentication, User access log, Centralized Certificate Management
- Users: N/A
- On-board Storage: SD/SDHC/SDXC slot
- Indoor/Outdoor: Outdoor
- Housing/Enclosure Rating: IP66-, NEMA 4X- and IK10-rated metal casing (aluminum), polycarbonate (PC) clear dome, sunshield (PC/ASA)
- Dimensions: Ø302 x 330 mm (Ø12 x 13 in)
- Weight: 5.6 kg (12.4 lb)
- Operating Temperature: -20 °C to 75 °C (-4 °F to 167 °F)
- Operating Humidity: 10 - 100% RH (non-condensing)
- Power: 12.0-13.2 V DC, min. 75 W
- Warranty: 3 Years
- What's Included: AXIS T8605 Media Converter Switch, 5 m (16 ft) IP66-rated multi-connector cable Installation Guide, Windows decoder 1-user license
- Notes: Mounting bracket not included. Please see data sheet for mounting accessories.
AXIS Q6045-C (0696-001) Mk II Overview
AXIS Q6045-C Mk II PTZ Dome Camera provides the highest video quality and performance in environments such as deserts, where high ambient temperatures and solar radiation require cameras to operate in extreme heat. With HDTV 1080p and 32x optical zoom with autofocus, the outdoor-ready PTZ dome provides exceptional coverage of large areas and great details when zooming in. It is ideal for use at construction and open-pit mining sites, along pipelines, and for city surveillance. With a built-in active cooling system, AXIS Q6045-C Mk II can operate in temperatures up to 75°C (167°F). The dust- and waterproof camera is IP66- and NEMA 4X-rated and meets the tough military standard, MIL-STD-810G, ensuring reliable operation in harsh weather conditions such as sandstorms. Support for shock detection enables the camera to trigger an alarm if it has been hit.AXIS Q6045-C Mk II has a wide horizontal viewing angle at 62.8° and twice the resolution of HDTV 720p. The camera’s 32x optical zoom, in combination with HDTV 1080p resolution, provides extremely detailed zoomed-in views, enabling, for instance, the license plate of a vehicle to be read some 300 m (984 ft.) away. AXIS Q6045-C Mk II offers the same video quality as AXIS Q6045-E Mk II. The robust AXIS AXIS Q6045-C Mk II is designed for round-the-clock pan/tilt/zoom operation. It has a fast and precise pan/tilt response at 450° per second. It can be automatically directed to 256 preset positions using guard tour. AXIS Q6045-C Mk II can tilt 20º above the horizon, making it possible for the camera to see higher than its mounting position. The supplied media converter switch allows AXIS Q6045-C Mk II to be connected in a daisy chain to the network using standard network or fiber optic cables that help lower the cost of installing the cameras over long distances. The media converter switch also enables the cameras to connect to external alarm devices via two configurable input/output ports, and to 12 V power. AXIS Q6045-C Mk II comes with built-in basic analytics such as highlight compensation, object removed, fence detector, object counter and enter/exit detection. It also supports autotracking and Active Gatekeeper. With Active Gatekeeper, the camera can automatically move to a preset position when motion is detected in a pre-defined area, and track the detected object. The camera also has substantial capacity for third-party intelligent video applications that are based on the AXIS Camera Application Platform.
