AXIS Q6045-E Mk II
AXIS Q6045-E MkII with T91B61 Wall Mount (not included)
AXIS Q6045-E MkII with T91B61 Wall Mount (not included)

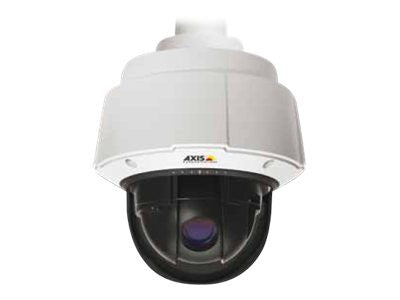

AXIS Q6045-E Mk II (0694-004) PTZ Dome Network Camera

AXIS

AXIS Q6045-E Mk II (0694-004) PTZ Dome Network Camera

$3,599.00
Discontinued
SKU: Q6045-E Mk II (0694-004)

Replaced by: AXIS Q6055-E 60Hz (0910-004)

Link to Manufacturer's Page

Contact

AXIS Q6045-E (0694-004) Mk II Features

  • Max Resolution: 1920 x 1080 (HDTV 1080p)
  • Image Sensor: 1/2.8” Progressive scan CMOS
  • Day/Night: Yes
  • Mechanical IR Cut Filter: Automatically removable infrared-cut filter
  • Minimum Illumination: Color: 0.3 lux at 30 IRE F1.6; B/W: 0.03 lux at 30 IRE F1.6
  • IR Illuminators: No
  • IR Illuminator Range: N/A
  • Focal Length: f=4.44-142.6 mm, F1.6–4.41
  • Zoom: 32x optical zoom and 12x digital zoom, total 384x zoom
  • Pan Range: 360° endless
  • Tilt Range: 220°
  • Number of Presets: 256
  • Modes: Tour recording, Guard tour, Control queue, On-screen directional indicator, Set new pan 0°
  • Focus: Autofocus
  • Field of View: Horizontal angle of view: 62.8° – 2.23° view
  • Compression Styles: H.264 Main and Baseline Profiles (MPEG-4 Part 10/AVC) Motion JPEG
  • Frame Rate: H.264: Up to 25/30 fps (50/60 Hz) in all resolutions, Motion JPEG: Up to 25/30 fps (50/60 Hz) in all resolutions, Up to 50/60 fps (50/60 Hz) in HDTV 720p
  • WDR Technology: Yes
  • Image Settings: Manual shutter time, Compression, Color, Brightness, Sharpness, White balance, Exposure control, Exposure zones, Backlight compensation, Fine tuning of behavior at low light, Rotation, Text and image overlay, Image freeze on PTZ, Highlight compensation, Automatic defog
  • Privacy Mask: Yes, 32 individual 3D privacy masks
  • Built-in Microphone: No
  • Audio Capabilities: None
  • Alarm/Event Management: Intelligent video: Video motion detection, Autotracking, Active Gatekeeper, AXIS Camera Application Platform enabling installation of additional applications, Basic analytics (not to be compared with third-party analytics): Object removed, Enter/exit detector, Fence detector, Object counter, Highlight compensation, Shock detection, Fan, Heater, Temperature, Manual trigger, Autotracking, Moving, PTZ preset, Edge storage events, AXIS Camera Application Platform, Enter/exit, Fence detector, Object removed, File upload: FTP, HTTP, network share and email Notification: email, HTTP and TCP PTZ preset, Guard tour, Autotracking, Day/night mode, Video recording to edge storage, Pre- and post-alarm video buffering
  • ONVIF: Yes
  • Security: Password protection, IP address filtering, HTTPS encryption, IEEE 802.1X network access control, Digest authentication, User access log, Centralized certificate management
  • Users: N/A
  • On-board Storage: SD/SDHC/SDXC slot supporting memory card up to 64 GB
  • Indoor/Outdoor: Outdoor
  • Housing/Enclosure Rating: IP66-, NEMA 4X- and IK10-rated, metal casing (aluminum), polycarbonate (PC) clear dome, sunshield (PC/ASA)
  • Dimensions: Ø232 mm x 280 mm (9.1" x 11")
  • Weight: 3.7 kg (8.2 lb.)
  • Operating Temperature: With 30 W: -20 °C to 50 °C (-4 °F to 122 °F), With 60 W*: -50 °C to 50 °C (-58 °F to 122 °F) *Arctic Temperature Control enables camera start-up at temperatures as low as -50 ºC (-58 ºF)
  • Operating Humidity: Humidity 10-100% RH (condensing)
  • Power: High Power over Ethernet (High PoE), max. 60 W, Axis High PoE 60 W Midspan 1-port: 100–240 V AC, max. 74 W
  • Warranty: 3 Years
  • What's Included: Axis High PoE 60 W Midspan 1-port, RJ45 Push-pull Connector (IP66), Sunshield, Installation Guide, Installation and Management Software CD (AXIS Camera Companion), Windows decoder 1-user license
  • Notes: Mounting bracket not included. Please see data sheet for mounting accessories.

AXIS Q6045-E (0694-004) Mk II Overview

AXIS Q6045-E Mk II is a top-of-the-line, outdoor-ready PTZ dome offering HDTV 1080p, 32x optical zoom, and fast and precise pan/tilt performance for wide area coverage and great detail when zooming in. It is ideal for city surveillance, airports, train stations, harbors and stadiums. Designed for easy and reliable installation, the camera is vandal-resistant (IK10) and has shock detection, surge protection (railway standard), and protection against dust, rain and snow (IP66 and NEMA 4X). It can operate in temperatures ranging from -50 ºC to 50 ºC (-58 ºF to 122 ºF). The camera’s Arctic Temperature Control ensures safe start-up in extreme cold. The robust AXIS Q6045-E Mk II is designed for round-the-clock pan/tilt/zoom operation. It can be automatically directed to 256 preset positions using guard tour. AXIS Q6045-E Mk II can tilt 20º above the horizon, making it possible for the camera to see higher than its mounting position. This is helpful, for instance, at a stadium where there is a need to look up at the stands. AXIS Q6045-E Mk II offers a wide horizontal viewing angle at 62.8°. The camera’s 32x optical zoom, in combination with HDTV 1080p resolution, provides superb zoomed-in views, enabling, for instance, the license plate of a vehicle to be read some 300 m (984 ft.) away. AXIS Q6045-E Mk II comes with built-in basic analytics such as highlight compensation, which masks bright lights such as headlights for ease of viewing. It also supports object removed, fence detector, object counter and enter/exit detection, autotracking and Active Gatekeeper. With Active Gatekeeper, the camera can automatically move to a preset position when motion is detected in a pre-defined area, and track the detected object. The camera also has substantial capacity for third-party intelligent video applications that are based on the AXIS Camera Application Platform. AXIS Q6045-E Mk II has a built-in memory card slot for local storage of recordings. The camera is powered by High Power over Ethernet using the supplied High PoE midspan.
