AXIS

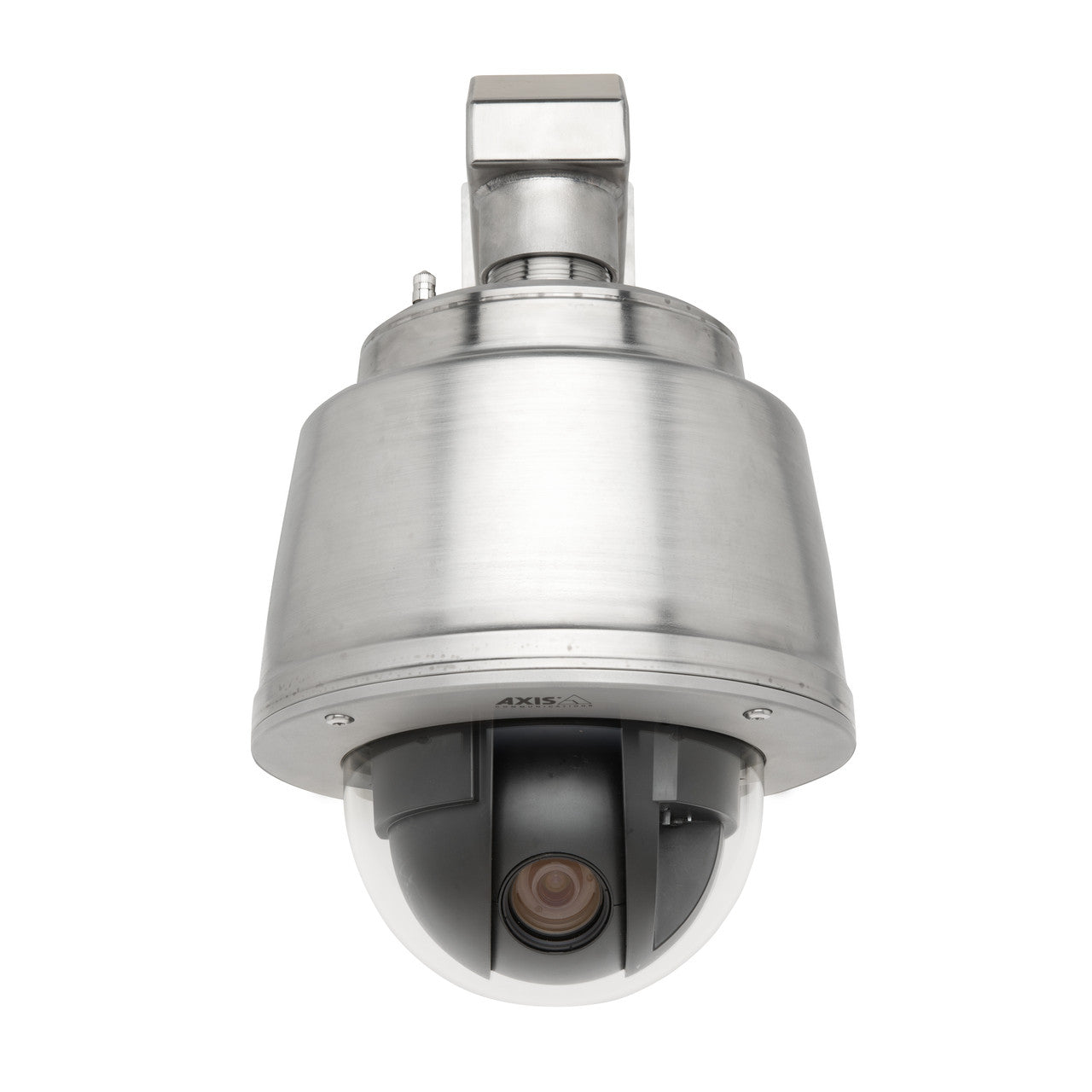

AXIS Q6045-S (0583-001) PTZ Dome Network Camera
Replaced by: AXIS Q6045-S Mk II 60Hz (0698-001)
- Max Resolution: 1920x1080 (HDTV 1080p)
- Image Sensor: 1/3” progressive scan CMOS
- Day/Night: Yes
- Mechanical IR Cut Filter: Automatically removable infrared-cut filter
- Minimum Illumination: Color: 0.6 lux at 30 IRE F1.6; B/W: 0.04 lux at 30 IRE F1.6
- IR Illuminators: No
- IR Illuminator Range: N/A
- Focal Length: f=4.45–89 mm, F1.6–2.9
- Zoom: 20x optical zoom and 12x digital zoom, total 240x zoom
- Pan Range: 360° endless
- Tilt Range: 220°
- Number of Presets: 256
- Modes: E-flip, 256 preset positions, Tour recording, Guard tour, Control queue, On-screen directional indicator
- Focus: Autofocus
- Field of View: Horizontal angle of view: 62.98°–3.49°
- Compression Styles: H.264 Main and Baseline Profiles (MPEG-4 Part 10/AVC); Motion JPEG
- Frame Rate: Up to 30 fps in all resolutions & compressions
- WDR Technology: Yes
- Image Settings: Manual shutter time, Compression, Color, Brightness, Sharpness, White balance, Exposure control, Exposure zones, Backlight compensation, Fine tuning of behavior at low light, Rotation, Text and image overlay, 32 individual 3D privacy masks, Image freeze on PTZ, Highlight compensation
- Privacy Mask: Yes, 32 individual 3D privacy masks
- Built-in Microphone: No
- Audio Capabilities: None
- Alarm/Event Management: Video motion detection, Autotracking, Active Gatekeeper, AXIS Camera Application Platform enabling installation of additional applications, Shock detection, Fan, Heater, Temperature, Manual trigger, Autotracking, Moving, PTZ preset, Edge storage events, File upload: FTP, HTTP, network share and email, Notification: email, HTTP and TCP, PTZ preset, Guard tour, Autotracking, Day/night mode, Video recording to edge storage, Pre- and post-alarm video buffering, Basic analytics (not to be compared with third-party analytics): Object removed, Enter/exit detector, Fence detector, Object counter, Highlight compensation
- ONVIF: Yes
- Security: Password protection, IP address filtering, HTTPS encryption, IEEE 802.1X network access control, Digest authentication, User access log
- Users: N/A
- On-board Storage: Yes, SD/SDHC/SDXC slot supporting memory card up to 64 GB
- Indoor/Outdoor: Outdoor
- Housing/Enclosure Rating: IP6K9K-, IP66-, IP67- and NEMA 4X-rated stainless steel casing (V4A, SAE 316L/UNS S31603/EN 1.4432), nylon clear dome
- Dimensions: 224 mm x 256 mm (8.8" x 10.1")
- Weight: 5.7 kg (12.6 lb)
- Operating Temperature: -30°C to 50°C (-22°F to 122 °F
- Operating Humidity: 10 - 100% RH (condensing)
- Power: 60 W powered through AXIS T8605 Media Converter Switch (included)
- Warranty: 3 Years
- What's Included: AXIS T8605 Media Converter Switch, IP66-rated multi-connector cable, Installation Guide, Installation and Management Software CD, Windows decoder 1-user license
- Notes: Mounting bracket not included. Please see data sheet for mounting options.
AXIS Q6044-S (0581-001) Overview
AXIS Q6045-S is a high-speed surveillance camera in a pressurized, marine-grade stainless steel casing. The robust camera is designed for round-the-clock pan/tilt/zoom operation, providing HDTV 1080p and 20x optical zoom with autofocus for 360° coverage of wide areas and great detail when zooming in. The highly durable, outdoor-ready camera is ideal for many applications that can take advantage of the benefits of stainless steel and pressurized nitrogen. Outdoor applications include marine, mining, and oil and gas environments. Indoor applications include food, medical and clean room manufacturing facilities. With a stainless steel (SAE 316L/V4A) casing and a nylon clear dome cover, the camera has high resistance to the corrosive effect of sea water and cleaning chemicals. The camera can operate in-30 °C to 50 °C (-22 °F to 122 °F) and its MIL-STD-810G 509.5, IP6K9K, IP66, IP67 and NEMA 4X approvals ensure protection against salt fog, high pressure and steam jet cleaning, dust, rain, snow and ice. AXIS Q6045-S is also designed to be filled with nitrogen—a colorless, non-reactive and non-combustible gas that makes up 78% of Earth’s atmosphere. Nitrogen in a sealed environment provides benefits such as preventing internal condensation. AXIS Q6045-S comes with built-in basic analytics such as highlight compensation, object removed, fence detector, object counter and enter/exit detection. It also supports autotracking and Active Gatekeeper. With Active Gatekeeper, the camera can automatically move to a preset position when motion is detected in a pre-defined area, and track the detected object. The camera also has substantial capacity for third-party intelligent video applications that are based on the AXIS Camera Application Platform. The supplied media converter switch allowsAXIS Q6045-S to be connected in a daisy chain to the network using standard network or fiber optic cables that help lower the cost of installing the cameras over long distances. The media converter switch also enables the cameras to connect to external alarm devices via two configurable input/output ports, and to 12 V power.
