AXIS Q6045-S Mk II (0698-001) PTZ Dome Network Camera
Replaced by: AXIS Q6055-S 60Hz (0945-001)
- Max Resolution: 1920x1080 (HDTV 1080p)
- Image Sensor: 1/2.8” progressive scan CMOS
- Day/Night: Yes
- Mechanical IR Cut Filter: Automatically removable infrared-cut filter
- Minimum Illumination: Color: 0.3 lux at 30 IRE F1.6; B/W: 0.03 lux at 30 IRE F1.6
- IR Illuminators: No
- IR Illuminator Range: N/A
- Focal Length: 4.44-142.6 mm, F1.6-4.41
- Zoom: 32x optical zoom and 12x digital zoom, total 384x zoom
- Pan Range: 360° endless
- Tilt Range: 220°
- Number of Presets: 256
- Modes: E-flip, 256 preset positions, Tour recording, Guard tour, Control queue, On-screen directional indicator, Set new pan 0°, Adjustable zoom speed
- Focus: Autofocus
- Field of View: Horizontal angle of view: 62.8˚-2.23˚; Vertical angle of view: 36.8˚-1.3˚
- Compression Styles: H.264 (MPEG-4 Part 10/AVC) Baseline and Main Profiles Motion JPEG
- Frame Rate: Up to 60/50 fps (60/50 Hz) in HDTV 720p; Up to 30/25 fps (60/50 Hz) in HDTV 1080p
- WDR Technology: Up to 120 dB depending on scene
- Image Settings: Manual shutter time, compression, color, brightness, sharpness, white balance, exposure control, exposure zones, backlight compensation, fine tuning of behavior at low light, rotation: 0°, 180°, text and image overlay, image freeze on PTZ, highlight compensation, automatic defog
- Privacy Mask: Yes, 32 individual 3D privacy masks
- Built-in Microphone: No
- Audio Capabilities: None
- Alarm/Event Management: Analytics (Video motion detection, Shock detection, Autotracking, Active Gatekeeper Highlight compensation Basic Analytics (not to be compared with third-party analytics): Object removed, Enter/Exit detector, Fence detector, Object counter, Highlight compensation), Fan, Temperature, Manual trigger, PTZ moving, PTZ preset, Edge storage events, File upload: FTP, SFTP, HTTP, HTTPS network share and email Notification: email, HTTP, HTTPS and TCP External output activation Video recording to edge storage Pre- and post-alarm video buffering PTZ preset, Overlay text, Send SNMP trap Play audio clip, Audio recording to edge storage
- ONVIF: Yes
- Security: Password protection, IP address filtering, HTTPSa encryption, IEEE 802.1Xa network access control, Digest authentication, User access log, Centralized Certificate Management
- Users: N/A
- On-board Storage: SD/SDHC/SDXC slot
- Indoor/Outdoor: Outdoor
- Housing/Enclosure Rating: IP6K9K-, IP66-, IP67-, NEMA 4X-, NEMA 6P- and IK10-ratedb stainless steel casing (V4A, SAE 316L/UNS S31603/EN 1.4432), Nylon clear dome
- Dimensions: Without sunshield: Ø224 x 256 mm (Ø8.8 x 10.1 in), With sunshield: Ø250 x 256 mm (Ø9.8 x 10.1 in)
- Weight: 5.7 kg (12.6 lb)
- Operating Temperature: -30°C to 50°C (-22°F to 122 °F)
- Operating Humidity: 10 - 100% RH (condensing)
- Power: 12.0-13.2 V DC, min. 75 W
- Warranty: 3 Years
- What's Included: AXIS T8605 Media Converter Switch, 5 m (16 ft) IP66-rated multi-connector cable Installation Guide, Windows decoder 1-user license
- Notes: Mounting bracket not included. Please see data sheet for mounting options.
AXIS Q6045-S (0698-001) Mk II Overview

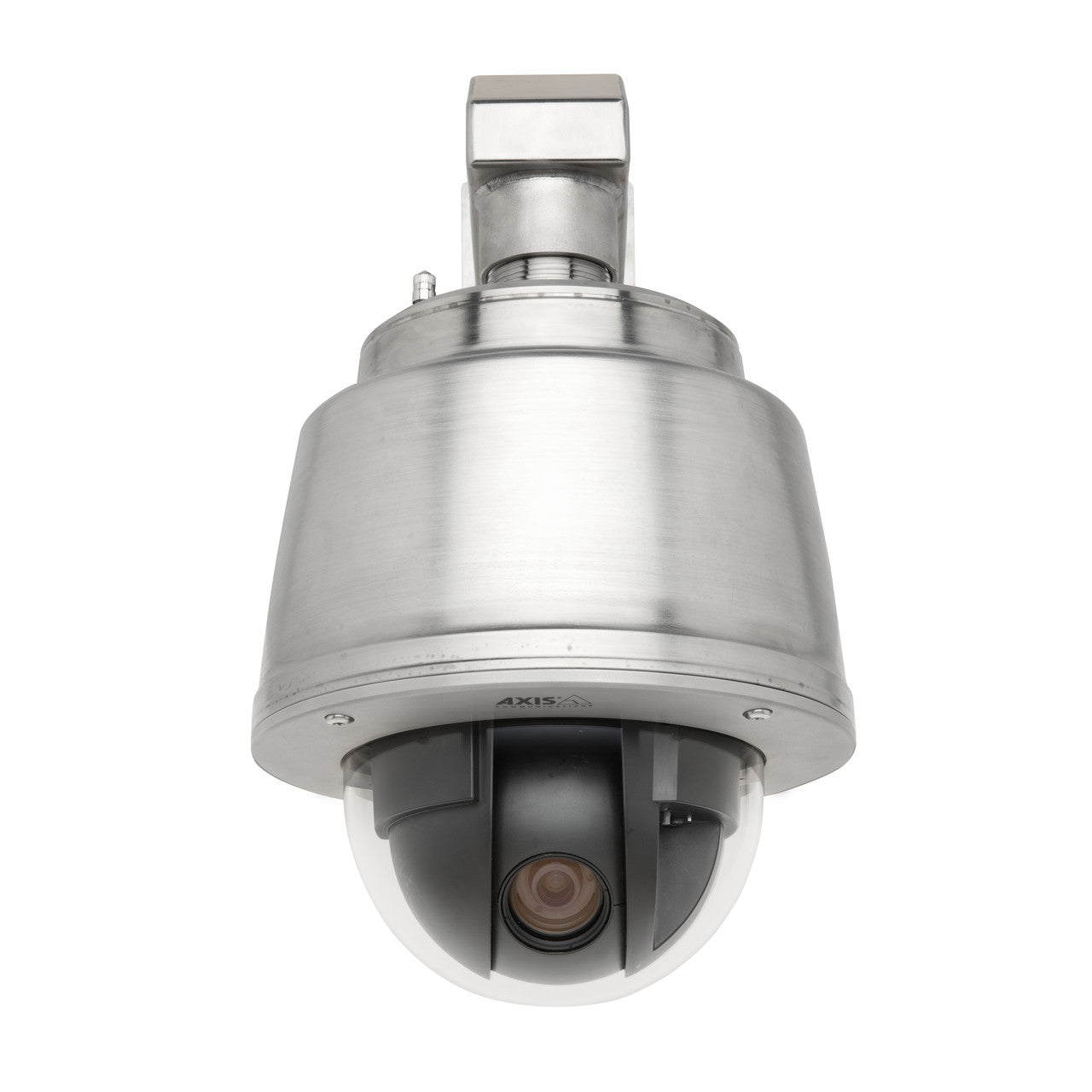

AXIS Q6045-S Mk II is a high-speed surveillance camera in a pressurized, marine-grade stainless steel casing. The robust camera is designed for round-the-clock pan/tilt/zoom operation, providing HDTV 1080p and 32x optical zoom with autofocus for 360° coverage of wide areas and great detail when zooming in. The highly durable, outdoor-ready camera is ideal for many applications that can take advantage of the benefits of stainless steel and pressurized nitrogen. Outdoor applications include marine, mining, and oil and gas environments. Indoor applications include food, medical and clean room manufacturing facilities. AXIS Q60-S cameras are to be filled with nitrogen gas through the inlet valve.. The pressure relief valve will open when the pressure inside the camera reaches 0.5 bar (7 psi). With a stainless steel (SAE 316L/V4A) casing and a nylon clear dome cover, the camera has high resistance to the corrosive effect of sea water and cleaning chemicals. The camera can operate in -30 °C to 50 °C (-22 °F to 122 °F) and its MIL-STD-810G 509.5, IP6K9K, IP66, IP67 and NEMA 4X approvals ensure protection against salt fog, high pressure and steam jet cleaning, dust, rain, snow and ice. AXIS Q6045-S Mk II is also designed to be filled with nitrogen—a colorless, non-reactive and non-combustible gas that makes up 78% of Earth’s atmosphere. Nitrogen in a sealed environment provides benefits such as preventing internal condensation. AXIS Q6045-S Mk II comes with built-in basic analytics such as highlight compensation, object removed, fence detector, object counter and enter/exit detection. It also supports autotracking and Active Gatekeeper. With Active Gatekeeper, the camera can automatically move to a preset position when motion is detected in a pre-defined area, and track the detected object. The camera also has substantial capacity for third-party intelligent video applications that are based on the AXIS Camera Application Platform. The supplied media converter switch allows AXIS Q6045-S Mk II to be connected in a daisy chain to the network using standard network or fiber optic cables that help lower the cost of installing the cameras over long distances. The media converter switch also enables the cameras to connect to external alarm devices via two configurable input/output ports, and to 12 V power.
