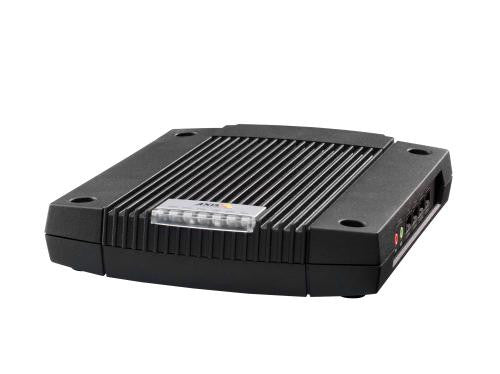

AXIS Q7404 (0291-004) 4 Channel H.264 Video Encoder

AXIS Q7404 Features

• Resolution: NTSC: 720x480 to 176x120; PAL: 720x576 to 176x144
• Compression Styles: H.264 (MPEG-4 Part 10/AVC) Motion JPEG
• Frame Rate: 30/25 (NTSC/PAL) fps in all resolutions
• Image Settings: Compression, color, brightness, contrast, Rotation: 90°, 180°, 270°, Aspect ratio correction, Mirroring of images, Text and image overlay, Privacy mask, Enhanced deinterlace filter, Intelligent video, external inputs, video loss, disk full, File upload via FTP, HTTP and email, Notification via email, HTTP and TCP, External output activation, PTZ presets, Local storage
• Privacy Mask: Yes
• Built-in Microphone: No
• Audio Capabilities: Two way, full duplex, External microphone input or line input, Line level output
• Alarm/Event Management: Video motion detection, active tampering alarm, audio detection, Support for AXIS Camera Application Platform enabling installation of additional applications
• ONVIF: Yes
• Security: Password protection, IP address filtering, HTTPS encryption, IEEE 802.1X network access control, digest authentication, user access log
• Users: N/A
• On-board Storage: SD/SDHC memory card slot (Card is not included)
• Indoor/Outdoor: Indoor
• Housing/Enclosure Rating: N/A
• Dimensions: 194.4 mm (L) x 151 mm (W) x 35 mm (H) (7.6" x 5.9" x 1.4")
• Weight: 796 g (1.75 lb.)
• Operating Temperature: 0 °C – 50 °C (32 °F – 122 °F)
• Operating Humidity: 20-80% RH (non-condensing)
• Power: 8-20 V DC, max. 7.2 W or Power over Ethernet IEEE 802.3af Class 2/3
• Warranty: 3 Years
• What's Included: Power supply, mounting and connector kits, Installation Guide, CD with installation and management tools, software and User’s Manual, 1 Windows decoder user license

AXIS Q7404 Overview

The AXIS Q7404 (0291-004) video encoder can provide a connection to an existing IP network for four separate analog cameras. Provided with the capability to control their advanced functions and with compatibility with over 25 different analog camera models, the AXIS Q7404 video encoder allows you to make the most of your analog devices on your digital network. It supports advanced video compression that reduces network bandwidth usage while providing crisp images. It can also be attached to external devices, increasing the flexibility of the system.

The AXIS Q7404 video encoder uses the H.264 compression codec, as well as the MPEG-4 compression codec. H.264 allows for significant bandwidth reduction while still delivering very high-quality images. Motion JPEG codec support ensures that the device is flexible enough to be used on most networks. The device can stream two separate streams on each of its four channels, with each stream capable of being independently configured for frame rate and quality. The device is compatible with PTZ analog cameras.

The AXIS Q7404 video encoder also supports two-way audio communications, allowing the operator to speak with or give directions to anyone in the area being monitored. It can be provided with custom applications via the open Application Programming Interface. The AXIS Q7404 video encoder also includes motion detection and audio detection, as well as tamper detection capabilities. The AXIS Q7404 video encoder includes RS-485 and RS-488 serial ports for control.
