AXIS

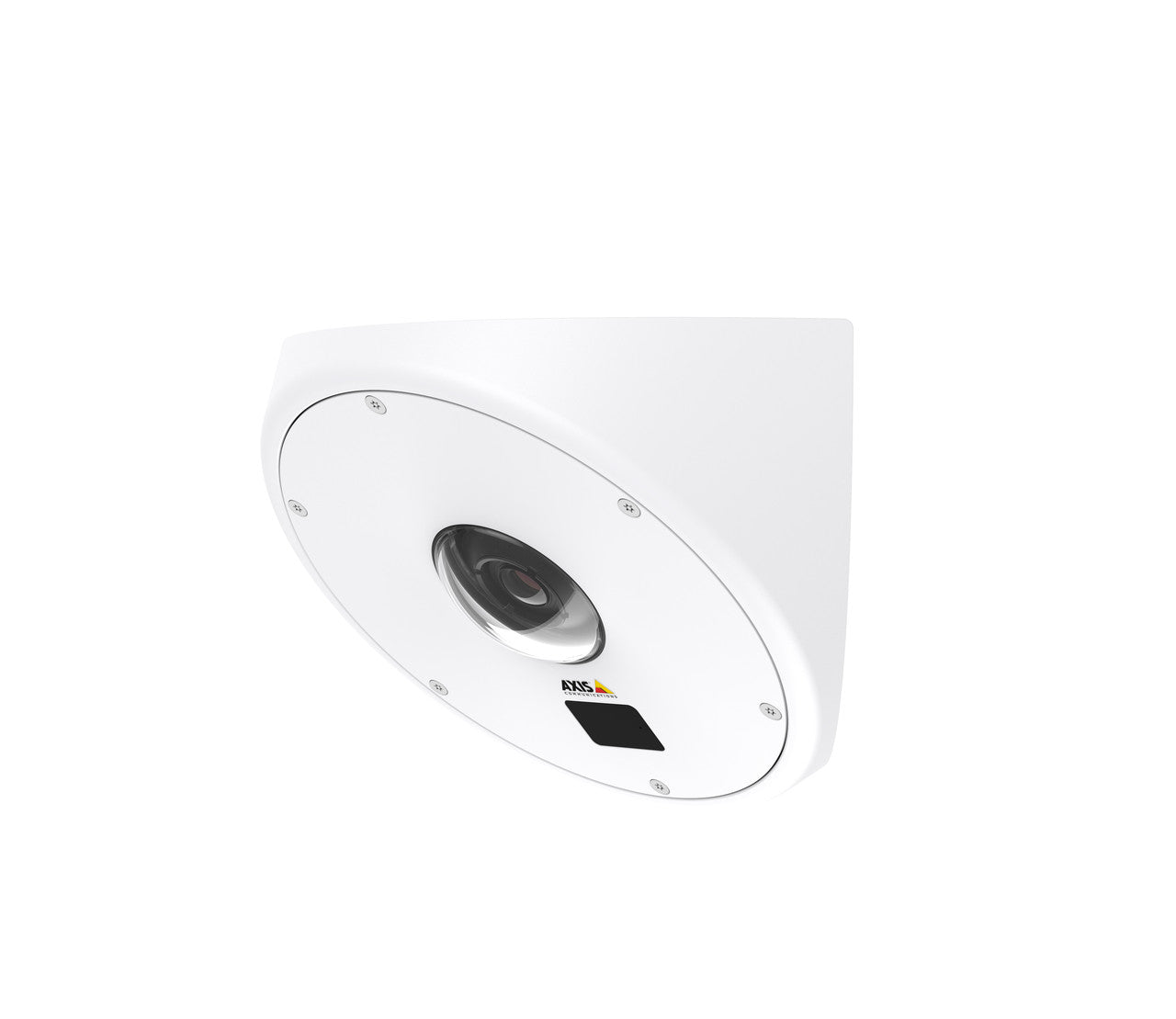

AXIS Q8414-LVS (0710-001) Corner-Mount Anti-Grip Network Camera (White)
Replaced by: AXIS Q9216-SLV White (01767-001)
AXIS Q8414-LVS Features
- Resolution: 1280 x 960 (approx. 1.3 MP) to 160 x 90
- Image Sensor: Progressive Scan RGB CMOS 1/3”
- Day/Night: Yes
- Mechanical IR Cut Filter: Yes
- Minimum Illumination: Color: 0.1 lux at F1.2; B/W: 0.02 lux at F1.2; 0 lux with IR illumination on
- IR Illuminators: Yes
- IR Illuminator Range: Up to 10m (33ft)
- Lens Type: Varifocal
- Focal Length: 2.5-6 mm / F1.2
- Zoom: Digital PTZ
- Iris: P-Iris
- Focus: Remote focus
- Field of View: 105° - 49° horizontal
- Compression Styles: H.264 Baseline and Main profile (MPEG-4 Part 10/AVC), Motion JPEG
- Frame Rate: 25/30 fps with power line frequency 50/60 Hz
- WDR Technology: Yes
- Image Settings: Compression, Color, Brightness, Sharpness, Contrast, White balance, Exposure control, Exposure zones, Backlight compensation, Fine tuning of behavior at low light, Wide dynamic range - Dynamic Contrast, Text and image overlay, Mirroring of images, Three privacy masks, Rotation: 0°, 90°, 180°, 270°, including Corridor Format
- Privacy Mask: Yes
- Built-in Microphone: Yes (can be disabled)
- Audio Capabilities: Supports two-way audio via built-in microphone and external line or microphone output
- Alarm/Event Management: Video motion detection, Active tampering alarm, Audio detection AXIS Camera Application Platform enabling installation of additional applications, Intelligent video, Edge storage events, External input; File upload: FTP, HTTP, Network share and email; Notification: email, HTTP and TCP; External output activation; Video and audio recording to edge storage; Pre- and post-alarm video buffering, Play audio clip
- ONVIF: Yes
- Security: Password protection, IP address filtering, HTTPS encryption, IEEE 802.1X network access control, Digest authentication, User access log
- On-board Storage: MicroSD/microSDHC/microSDXC slot supporting memory card up to 64 GB (card not included)
- Indoor/Outdoor: Indoor
- Housing/Enclosure Rating: Polycarbonate dome and IR window, IP66- and NEMA 4X-rated, IK10+ 50 joules impact-resistant stainless steel casing
- Dimensions: 165 x 255 x 215 mm (6.5 x 10 x 8.5 in)
- Weight: 3.45 kg (7.61 lb)
- Operating Temperature: 0 °C to 50 °C (32 °F to 122 °F)
- Operating Humidity: 10–100% RH (condensing)
- Power: Power over Ethernet IEEE 802.3af/802.3at Type 1 Class 2, max. 6.2 W (limited IR), Power over Ethernet IEEE 802.3af/802.3at Type 1 Class 3, max. 8.7 W (full IR)
- Warranty: 3 Year
- What's Included: Camera, Installation Guide, Installation and Management Software CD, Windows decoder 1-user license, AVHS Authentication key, Resitorx 20 bit, Connector kit, Washers, Mounting tool for RJ45
The unique corner-mount camera lacks ligature points while the anti-grip design meets the requirements for installations in correctional and medical facilities where there is an increasing need to prevent self-harm and avoid internal conflicts. The camera is available in two color versions, powder coated white (AXIS Q8414-LVS White) and brushed stainless steel (AXIS Q8414-LVS Metal). The water resistant casing allows for water hose cleaning; soapy water, or any other multi-purpose cleaning agents. AXIS Q8414-LVS camera supports both IP66- and NEMA 4X-rating. Supporting Lightfinder technology, AXIS Q8414-LVS can maintain colors even in very poor lighting conditions. And the P-Iris control provides images with an optimal depth of field, resolution, image contrast and clarity. A built-in invisible IR LED illuminator (940 nm) can be used for covert video surveillance in complete darkness. Together with a resolution of 1.3 Megapixel or HDTV 720p video stream and an horizontal angle of view up to 105°, the camera covers the entire room without blind spots. Thanks to the built-in surface mounted high-quality microphone, audio detection can be used as a complement to an indoor video surveillance. Audio detection may be used as an alarm in order to identify urgent situation, such as the sound of fighting, screaming, slamming doors or gunshots. The audio does not need to be recorded, avoiding issues with local legislation, but it is intended to trigger an alarm. The audio feature can also be disabled.
