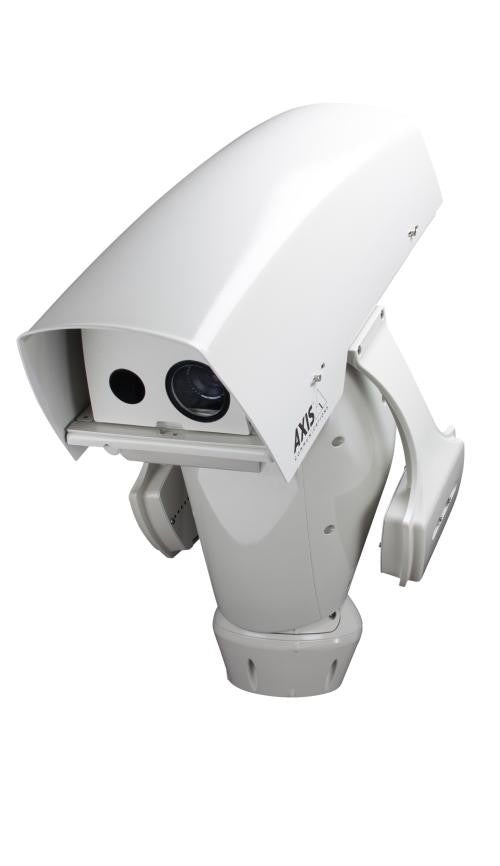

AXIS Q8722-E Dual PTZ Network Camera

AXIS Q8722-E Feature

• Resolution for Visual Camera: HDTV 1080i 1920x1080, HDTV 720p 1280x720
• Resolution for Thermal Camera: 640x480 sensor, image can be scaled up to 800x600 (D1) resolution
• Image Sensor for Visual Camera: 1/3’’ progressive scan CMOS 2 megapixel
• Image Sensor for Thermal Camera: Uncooled micro bolometer 640x48 pixels
• Day/Night: Yes, Auto
• Mechanical IR Cut Filter: Yes
• Minimum Illumination: Color: 2 lux at 30 IRE, F1.8; B/W: 0.2 lux at 30 IRE, F1.8
• IR Illuminators: No, Optional Kit (PT IR Illuminator Kit A)
• IR Illuminator Range: (If chosen) 50 - 100m depending on which IR-LED Type
• Lens Options: 35mm is (0489-001) & 60mm is (0491-001) for the Visual Camera, please specify when ordering.
• Lens Type: F1.8 - 2.1
• Focal Length: 5.1 - 51 mm
• Zoom: 10x optical and 12x digital, total 120x
• Iris: N/A
• Focus: Auto
• Horizontal Angle of View: Horizontal angle of view: 48.1° - 5.1°
• Compression Styles: H.264 (MPEG-4 Part 10/AVC), Motion JPEG
• Frame Rate for Visual Camera: 30/25 fps in all resolutions and video compression
• Frame Rate for Thermal Camera: Up to 30 fps within EU, Norway, Switzerland, Canada, USA, Japan, Australia, New Zealand (Up to 8.3 fps in other countries)
• Image Settings for Visual Camera: Compression, brightness, sharpness, white balance, exposure control, backlight compensation, rotation, mirroring of images, text and image overlay, privacy mask
• Image Settings for Thermal Camera: Compression, brightness, exposure control, rotation, mirroring of images, text and image overlay, privacy mask, multiple palettes
• Privacy Mask: Yes
• Built-in Microphone: No
• Audio Capabilities: N/A
• Alarm/Event Management: Video motion detection, active tampering alarm, Support for AXIS Camera Application Platform, Intelligent video and external input, FTP, HTTP, network share and email, email notification, HTTP and TCP, External output activation, Video to edge storage, Pre- and post-alarm video buffering, Gatekeeper
• ONVIF: Yes
• Security: Password protection, IP address filtering, HTTPS encryption**, IEEE 802.1X network access control**, digest authentication, user access log
• Users: N/A
• On-board Storage: SD/SDHC/SDXC slot supporting memory cards up to 64 GB (card not included), Support for recording to network share (network-attached storage or file server)
• Indoor/Outdoor: Indoor or Outdoor
• Housing/Enclosure Rating: IP66-rated
• Dimensions: 271 mm (10.7”) x 643 mm (25.3”) x 691 mm (27.2”) See Dimesions in Pictures
• Weight: 28.5 kg (63 lb.) (IR LED excluded)
• Operating Temperature: -30 °C to 45 °C (-22 °F to 113 °F)
• Operating Humidity: 10 - 100% RH (condensing)
• Power: AXIS Q87-E: 24 V AC 50/60 Hz, 200 W provided by power supply (sold separately) 230/120 V AC 50/60 Hz with built-in day/night sensor
• Warranty: Three year
• What's Included: Installation Guides, Installation and Management Software CD, Windows decoder 1-user license
• Notes: Power Supply is not included & the required power supply is the AXIS Q87-E Power Supply 230 V AC or AXIS Q87-E Power Supply 120 V AC. Mounting Brackets are not included & the required brackets are the AXIS Wall Bracket K or AXIS Column Bracket K. Two different Lens options are available the 35mm is (0489-001) & 60mm is (0491-001) for the Visual Camera, please specify when ordering.

AXIS Q8722-E Overview

AXIS Q8722-E is a high-end combination of a visual camera with integrated 10x optical zoom lens and a thermal camera (with SVGA resolution) perfectly synchronized in pan and tilt movements. The thermal camera can achieve higher detection accuracy and it can also function in complete darkness and adverse weather conditions. The visual camera allows for recognition possibilities and at night, it can benefit from optional PT IR Illuminator kit A for better identification. The visual and thermal cameras can deliver several independent H.264 streams for different quality needs and bandwidth constraints simultaneously. AXIS Q8722-E is specially designed for reliable, weatherproof installation, with IP66-rated material for protection against the ingress of dust and high pressure water jets from any direction and can operate in temperatures from -30 °C to +45 °C(-22 °F to 113 °F). Both visual and thermal cameras are connected to an Ethernet switch placed inside the housing. From that switch only one Ethernet cable is necessary to view both cameras.
