AXIS T83235B (5033-541) Microphone Phantom Power

Sale price$449.00
Discontinued
SKU: T83235B (5033-541)

Replaced by: AXIS T8353A Microphone 3.5 mm (5032-531)

Contact

AXIS T83235B Features

  • Compatibility: AXIS P8221 Network I/O Audio Module
  • Weight: 80 g (2.8 oz.)
  • Dimensions of the different components (L x Ø): Microphone 5.4 x 12.7 mm (0.2” x 0.5”), Cable 1.6 x 1800 mm (0.06” x 70.9”), 3.5 mm phono plug 35.4 x 7.9 mm (1.4” x 0.3”)
  • Indoor/Outdoor: Indoor
  • Temperature: -25 °C to 45 °C (-13 °F to 113 °F)
  • Humidity: Up to 90% RH (non-condensing)
  • Power Requirement: 12-48 V DC, Power is provided by the Axis network video product
  • Connectors: XLR male and pigtail, XLR adaptor: 20.4 mm x 70 mm (0.8” x 2.8”

AXIS T83235B Overview

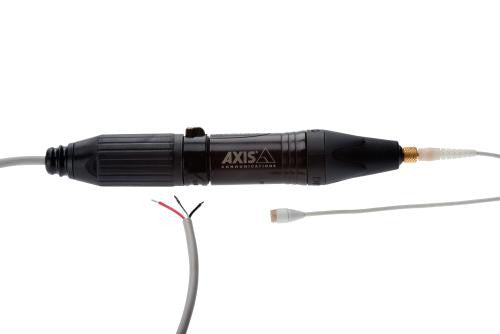

AXIS T8353B Microphone Phantom Power is an omnidirectional microphone with an XLR contact and a pigtail adaptor. Power ranges between 12-48V DC. It is compatible with phantom power devices, such as AXIS P8221 Network I/O Audio Module. AXIS T8353B Microphone offers great details and resolution, the capsule has a neutral sonic character and is very natural sounding. The discreet microphone is very reliable even in demanding environments. The microphones are omnidirectional condenser microphones and therefore do not need to be aimed directly at the sound source. The discreet microphones are very reliable even in demanding environments. They are capable of handling sound pressures of up to 138 dB (max SPL), have a sensitivity of -44 dB (relative: 1 V/Pa) and have a high Signal to Noise Ratio of 68 dB (relative: 1 kHz @ 1 Pa, 94 dB SPL). An outstanding dynamic range of 97 dB allows for recording of complex scenarios.
