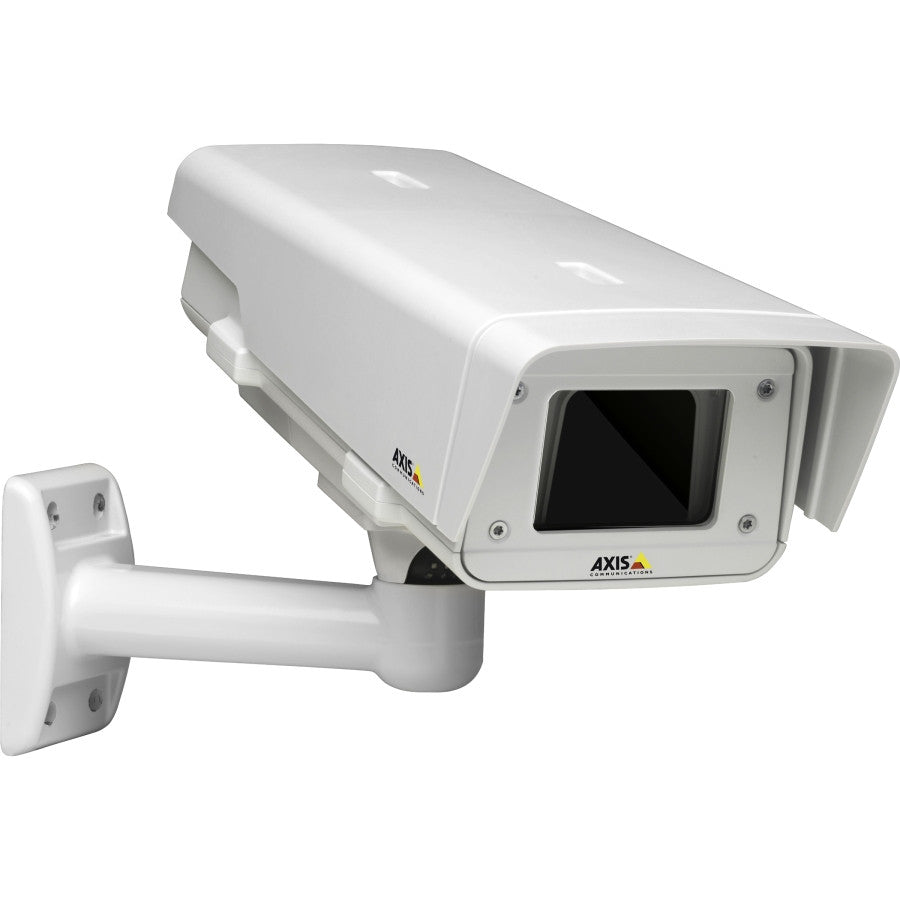

AXIS T92E20 (0433-001) Outdoor Housing
AXIS T92E20 (0433-001) Outdoor Housing


AXIS T92E20 (0433-001) Outdoor Housing

Sale price$359.00
SKU: T92E20 (0433-001)
Axis T92E20 (0433-001) Outdoor Housing Features
  • Aluminium casing, polycarbonate sunshield and cable cover
  • IP66- and NEMA 4X-rated, IK10 impact-resistant aluminum enclosure
  • Arctic Temperature Control enables camera start-up at temperatures as low as -40 °C (-40 °F)
  • Included accessories: VT wall bracket, sunshield, 2x short Ethernet cables, User’s Guide, screw driver torx 20
  • Power over Ethernet (PoE) IEEE 802.3af or High Power over Ethernet (High PoE) Power supply not included
  • Compatible with Axis M1113, M1114, P1343, P1344, P1346, P1347, Q1755

Axis T92E20 (0433-001) Outdoor Housing Overview

Features to protect what you value
AXIS T92E Housing Series has IP66 and NEMA 4X protection rating against the ingress of dust, windblown dust, rain, high pressure water jets from any direction, hose-directed water, and damage from external ice formation. IK10-rated for protection against impact and vandal acts. In addition, the cables are vandal protected and the front window is replaceable. Easy and quick installation using either Power over Ethernet or High Power over Ethernet connection. The network cable is further protected in the wall mount to enhance the vandal protection.

For arctic or tropical environments
AXIS T92E20 Outdoor Housing features a dual shell technology, where an internal shell stores heat in cold environments. Fan ventilation for hot environments, where the heat is transferred to the outer chassis for efficient cooling. Operating conditions ranges between -30 °C to 50 °C (-22 °F to 122 °F) with PoE (IEEE802.3af) and down to -40 °C (-40 °F) with High PoE (IEEE802.3at). The Arctic Temperature Control allows the camera not only to function at -40 °C (-40 °F), but can also power up at that temperature following a power failure.

Ease of installation
A broad list of included accessories make AXIS T92E Series easy to mount in all situations, thanks to one cable installation, wall bracket, captive screws and it is prepared for mounting of IR or White LED illuminators. Various brackets and accessories are available for AXIS T92E Housing Series, such as ceiling and wall brackets, column mounts and adapters. AXIS T92E Series comes with a wall bracket with an internal cable channel and ball joint.
