AXIS YP3040 (5502-461)

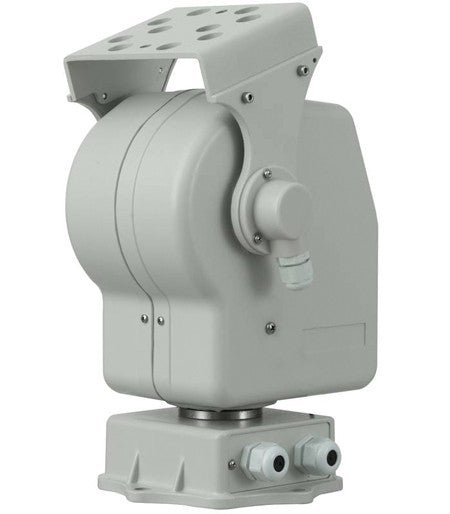

AXIS YP3040 (5502-461) Pan-Tilt Motor


AXIS YP3040 (5502-461) Pan-Tilt Motor

Sale price$495.00
SKU: YP3040 (5502-461)

Replaced by: YP3040 PAN-TILT MOTOR (5901-201)

AXIS YP3040 (5502-461) Pan-Tilt Motor Features
  • Enables Pan and Tilt Capability
  • Can be mounted on walls, both indoors and outdoors!
  • Pan-tilt functionality for fixed cameras
  • Operator-controlled movement
  • IP66-rated protection
  • Easy installation
  • Pan/Tilt Pan range: 0° to 355°, Tilt range 10° to -80°, Pan speed 7.5°/s, Tilt speed 6°/s
  • Designed for operator control
  • Input voltage 24 V AC 50/60 Hz AXIS PS24 Mains Adaptor recommended
  • Power consumption 30 W
  • Construction/Material Aluminum alloy
  • Operating temperature -20 °C to 65 °C (-4 °F to 149 °F)
  • Protection class IP66-rated (indoor and outdoor use)
  • Load Torque 1.5 N m (1.1 ft. lb) Top load, maximum 8 kg (17.6 lb)
  • Weight 4.2 kg (9 lb)
  • Dimensions 288 x 165 x 188.5 mm (11‘’ x 6’’ x 7’’)
  • Supported cameras: AXIS Q1755/-E Network Cameras, AXIS Q1910/-E and AXIS Q1921/-E Thermal Network Cameras
  • Included accessories: Mounting kit, Drill template, Installation guide
AXIS YP3040 (5502-461) Pan-Tilt Motor Overview

YP3040 Pan-Tilt Motor is an optional accessory for AXIS fixed network cameras with pan-tilt support. It is ideal for use where a cost-effective solution for fine adjustments to a camera’s field of view is needed. The camera is connected directly to the Pan-Tilt Motor and can be panned and tilted easily by an operator. The YP3040 Pan-Tilt Motor can be used both indoors and outdoors. It is IP66-rated and recommended for use with AXIS T92A20, AXIS T92E05 and AXIS T92E20 Housings. The Pan-Tilt Motor is recommended for wall mounting with an optional YP3040 Wall Bracket. The recommended power supply is AXIS PS24 Mains Adaptor. The YP3040 Pan-Tilt Motor is easy to install. It is preconfigured for use with AXIS Q1755 and AXIS T92A20 Housing, or AXIS Q19-E series Thermal Network Camera.
