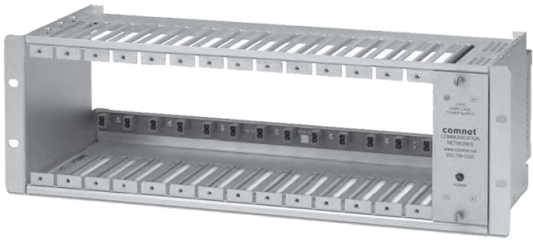

EIA 19 IN RACK FOR CNFE2MC MEDIA CONVERTER UNIT, 120-230VAC
- Rack mountable
- Easy installation
- Holds a maximum of 14 CNFE2MC/IN modules
Key Specifications
| Description | Rack mount card cage designed to hold a maximum of 14 CNFE2MC/IN modules |
| Red | Power is supplied. |
| No LED lit | No power. |
| Input Voltage | 90-264 VAC at 1 A maximum |
| Output Voltage | 9 VDC ± 5% at 6.5 A at +75 °C (+167 °F) |
| Fusing | 1.25 A slow blow (rack power supply)(plug-in modules individually electronically fused) |
| Power Indicator | Red LED |
| AC Line Cord | Detachable, IEC-connected. US, European, and UK power cords supplied. |
| Dimensions (LxWxH) | 48 x 19 x 15 cm (19.0 x 7.5 x 6.0 in.) |
| Rack Slots | Fourteen (14) 1-in. slots available |
| Shipping Weight | 3.4 kg (7.5 lb) |
| MTBF | > 100,000 hours |
| Operating Temperature | -40 °C to +75 °C (-40 °F to +167 °F), ambient |
| Storage Temperature | -40 °C to +85 °C, (-40 °F to +185 °F), ambient |
| Heat Generation | 240 BTU |
| Regulatory Compliance | FCC part 15, , cUL, UL, RoHS |
